Product details

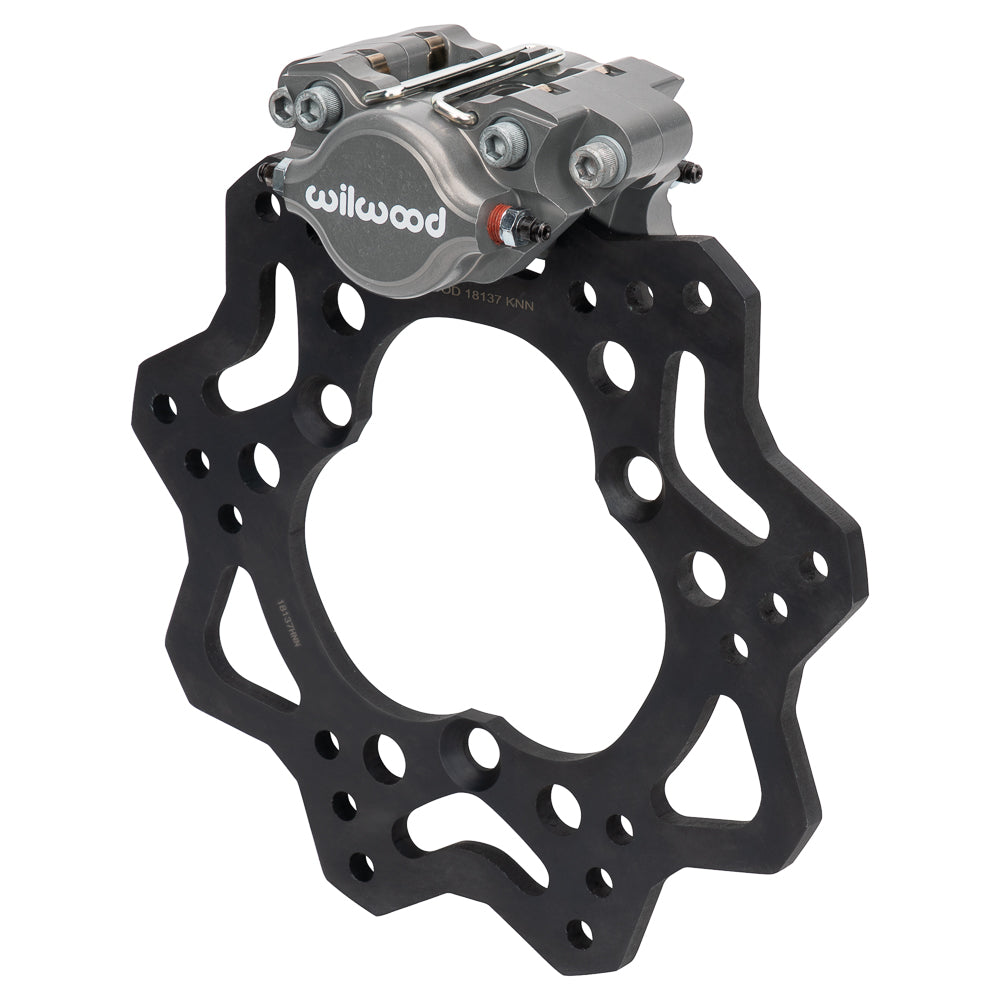

This left front sprint assembly pairs a Type III anodized Dynapro Single caliper with a 10.20-inch scalloped steel rotor. Its two stainless pistons provide 2.40 square inches of effective piston area, and the kit includes BP-40 pads, brackets and rotor-mounting hardware. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; it is based in Camarillo, California, and serves motorsport, street-performance and specialized applications.
Fitment & Compatibility
A left front sprint-car racing brake assembly. Confirm the sprint spindle, bracket and rotor mounting arrangement against the installed chassis; do not use vehicle model alone to select it. Not for street use.
Technical Details
Calipers and pads
- Calipers: Dynapro Single; 2 pistons
- Caliper finish: Type III Anodize
- Pistons: stainless
- Mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-40
- Listed piston bore sizes: 1.75 in
Rotors and mounting dimensions
- Rotors: 10.20 in diameter x 0.31 in thick; solid Steel
- Friction faces: Scalloped Steel
- Rotor coating/finish: Black Electro Coat
Kit contents and separate parts
- Manufacturer part number: 140-18222
- Supply: one brake kit; single-wheel sprint assembly
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: not included

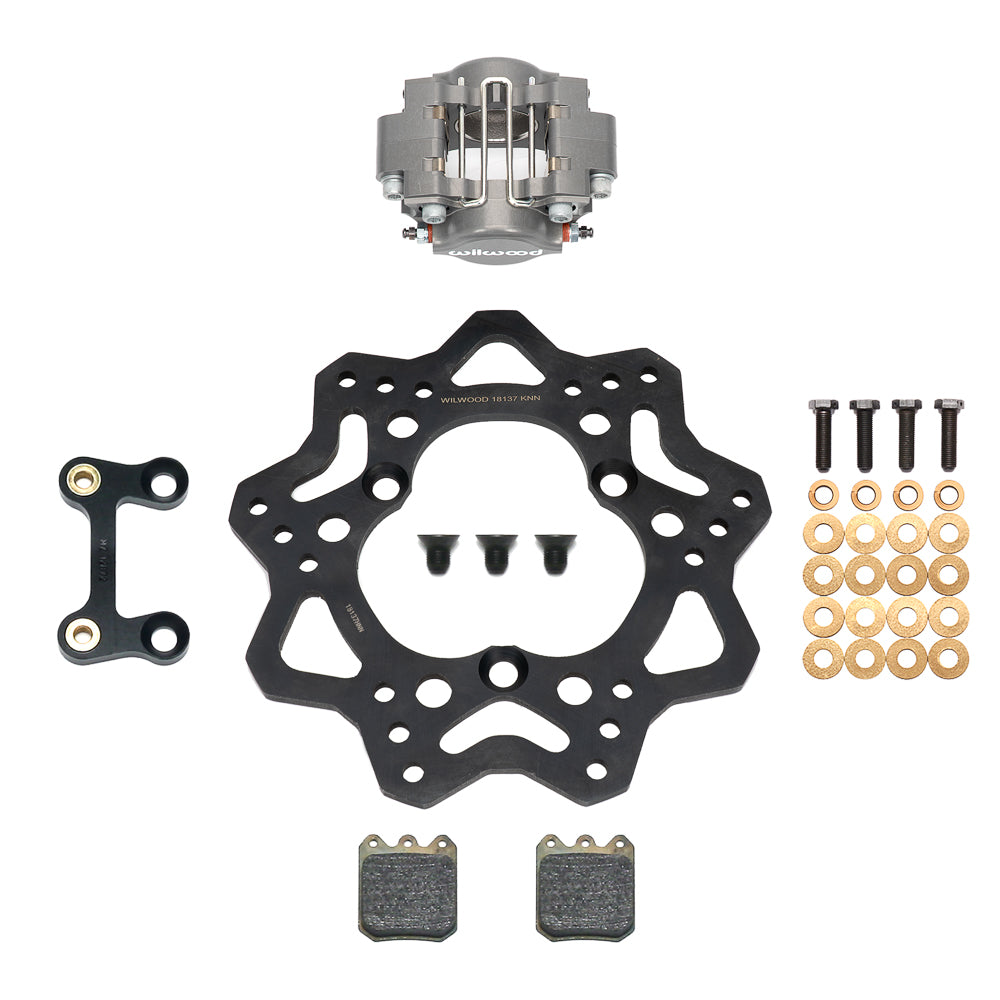

- The kit contains a Type III anodized two-piston Dynapro Single caliper, BP-40 pads, mounting brackets and bolts, plus a 10.20 x 0.31-inch scalloped steel rotor and rotor hardware. Hub, spindle, master cylinder, booster and brake hoses are separate.
