Product details

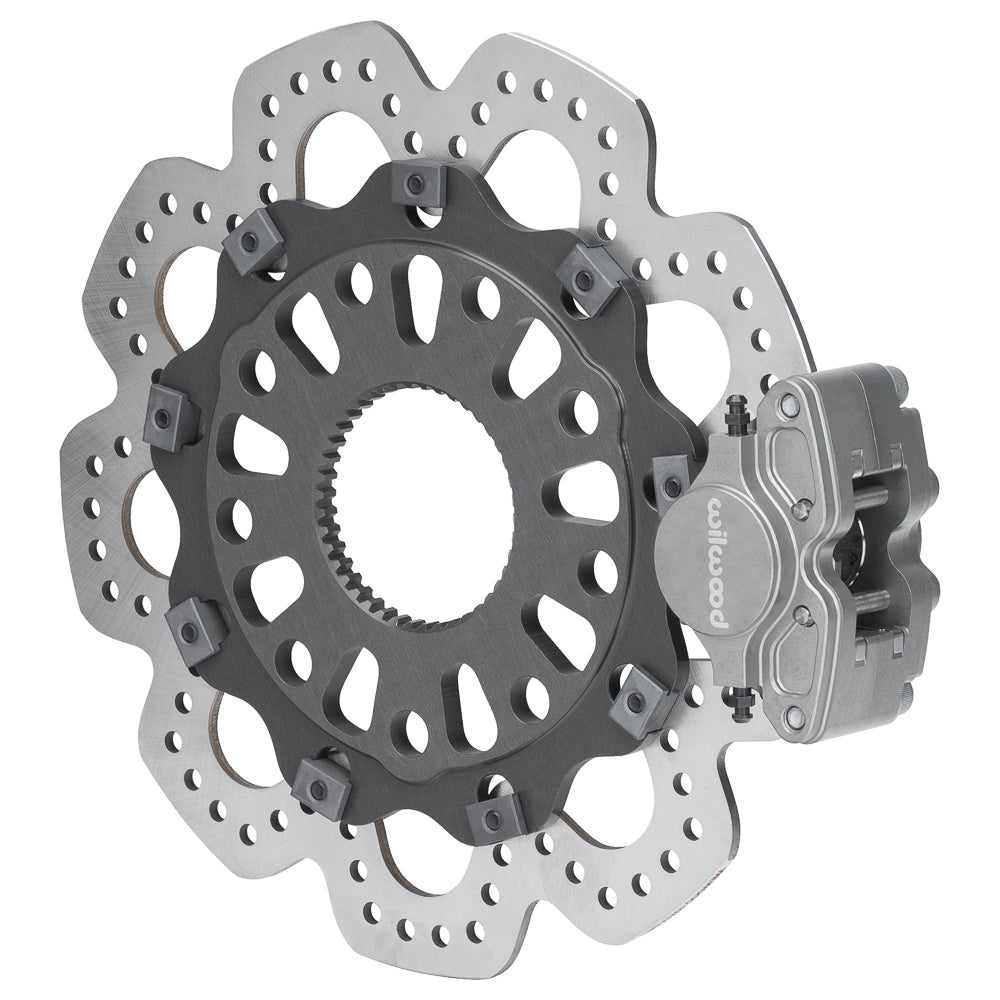

A GP200 two-piston caliper and 10.50-inch scalloped Super Alloy steel rotor form this right rear outboard sprint brake. The splined rotor adapter mounts to a 3-inch, 42-spline axle, with Purple pads and T-nut hardware supplied for the racing assembly. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the complete brake system.
Technical Details
Rotors and mounting dimensions
- Rotors: 10.50 in diameter x 0.16 in thick; solid Super Alloy steel
- Friction faces: Scalloped Steel
- Rotor coating/finish: Plain
Calipers and pads
- Calipers: GP200; 2 pistons
- Caliper finish: Type III Anodize
- Body construction: Billet aluminum
- Pistons: stainless
- Mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: Purple
Kit contents and separate parts
- Manufacturer part number: 140-18215
- Supply: one brake kit; single-wheel sprint assembly
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: not included

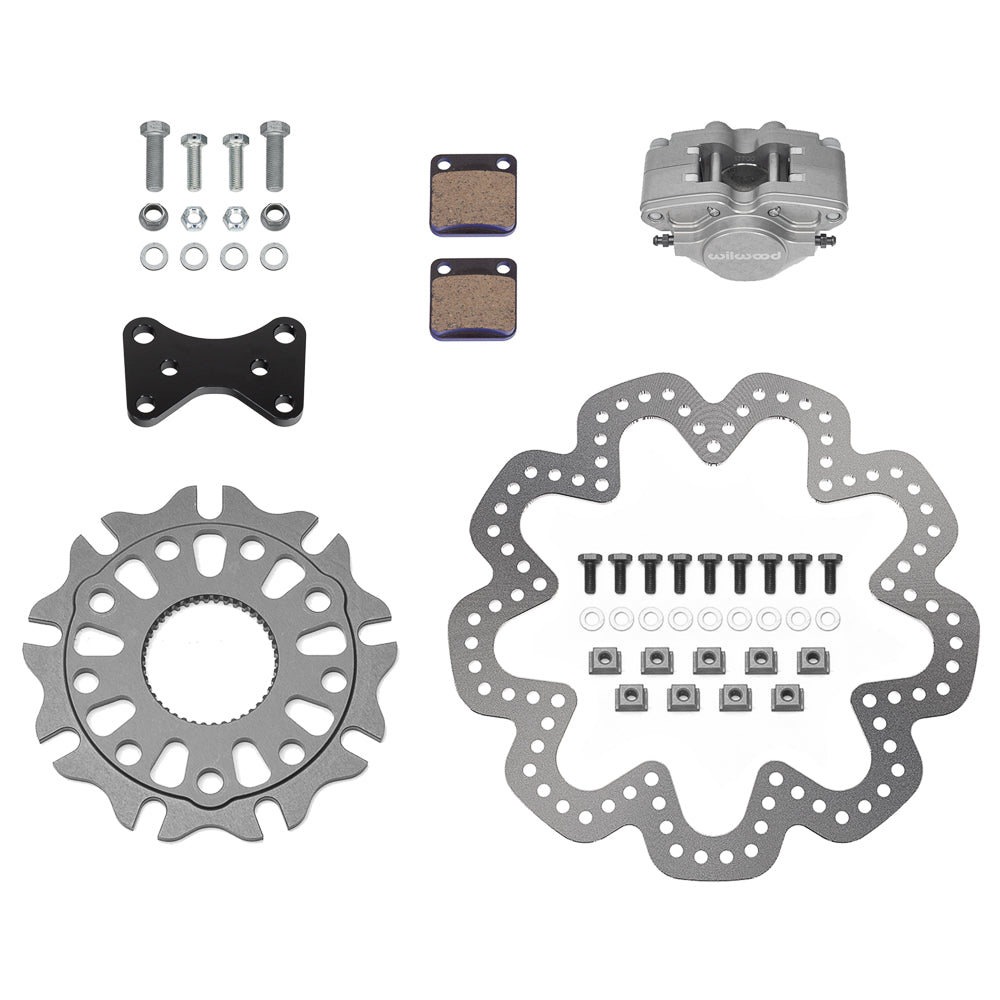

- Includes the GP200 caliper, Purple compound pads, scalloped Super Alloy steel rotor, splined rotor adapter and mounting hardware. Brake hoses, hub, spindle, master cylinder and booster are not included.
Fitment & Compatibility
For the right rear outboard brake on a sprint car with a 3-inch-diameter, 42-spline axle. Match the birdcage bracket mounting bosses and rotor adapter before assembly. This is racing equipment and is not for street use.
