Wilwood Front Red AERO6-DM Brake Kit for Ram 1500 4WD (2013–2018), 13.38-Inch GT-Slotted Rotors

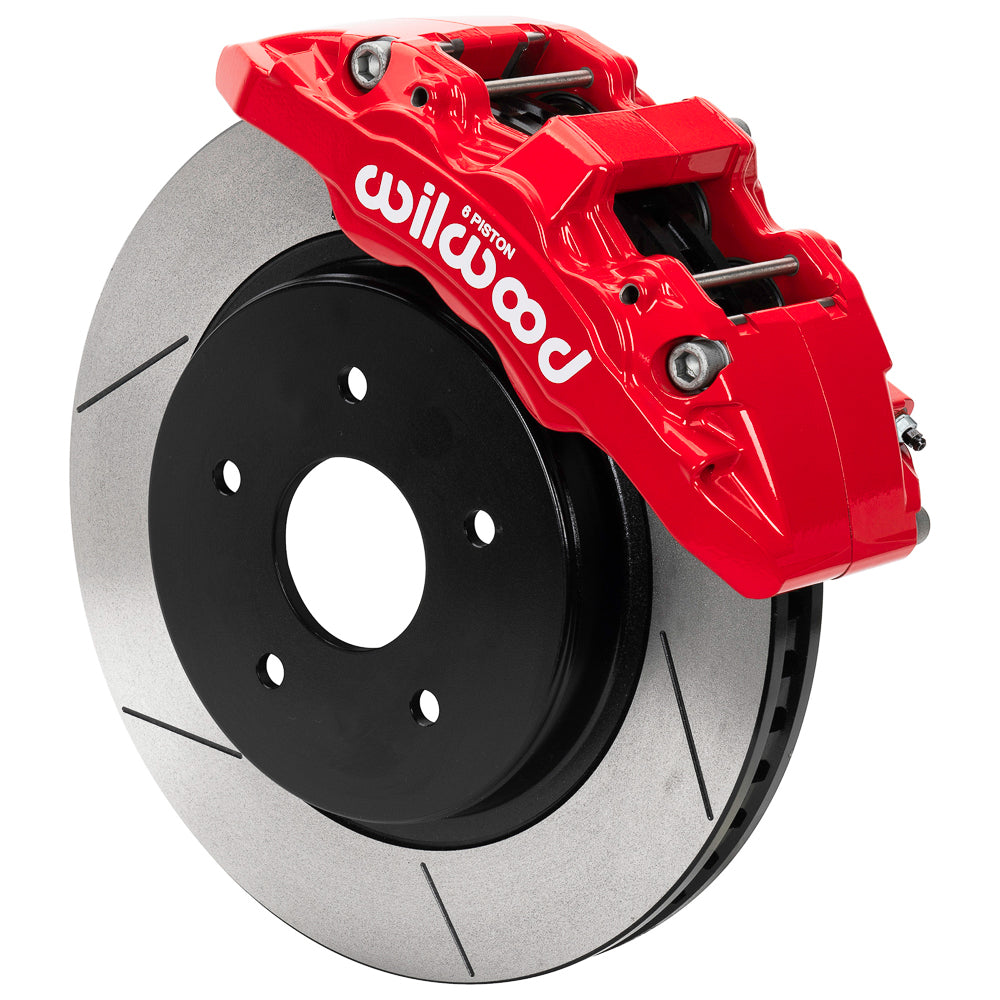

The red GT front kit uses one-piece 13.38-inch rotor/hat assemblies and AERO6-DM six-piston calipers for compatible Ram 1500 4WD models. Its 1.25-inch-thick rotors and supplied hoses complete the documented hydraulic package without changing the vehicle’s hub pattern. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

• Manufacturer part number: 140-18208-R
• Rotor specification: Iron, GT Slotted, vented; 13.38 x 1.25 inches
• Caliper specification: 6-piston AERODM in Red Powder Coat; lug mount
• Included service pad compound: BP-22; Stainless pistons
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 5 x 5.5 in; 5 x 139.7 mm; match the installed hub/axle pattern
• Hydraulic brake hoses: included; DOT-approved hose kit
• Wheel clearance: 17-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

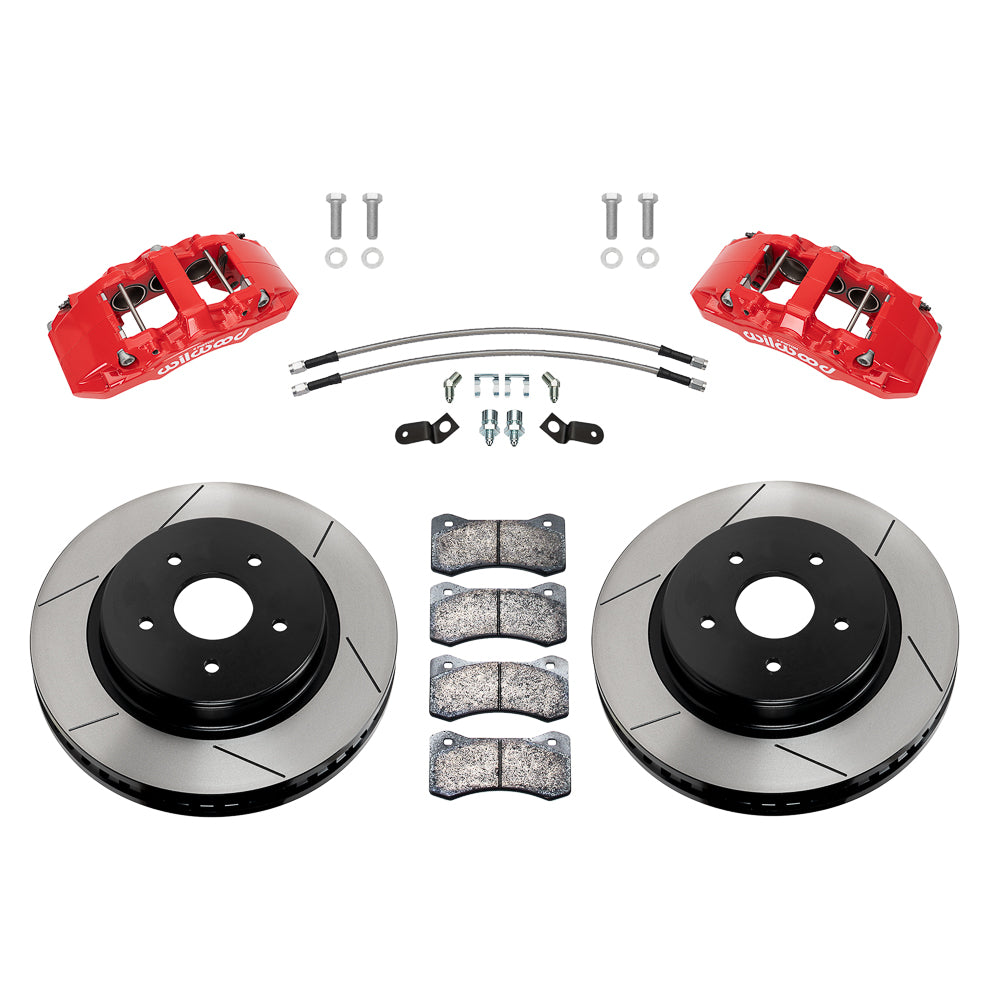

• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2013–2018 Ram 1500 four-wheel-drive applications only. Verify the trim and year in the table, including any gaps; this kit is not the corresponding two-wheel-drive package.

The direct-mount calipers and 13.38-inch one-piece rotor/hat assemblies must clear the installed wheels. Use the supplied 14-inch hose set and follow DS1593 for the four-wheel-drive kit; the two-wheel-drive part uses a different application.

The table below provides the full application breakdown; match its year, model and brake-configuration details.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): 220-18206 (14.00 in)
2. Front line-kit reference: 220-18206
