Wilwood Front 13.38-Inch SRP Drilled/Slotted Brake Kit — Red AERO6-DM for Ram 1500 4WD (2013–2018)

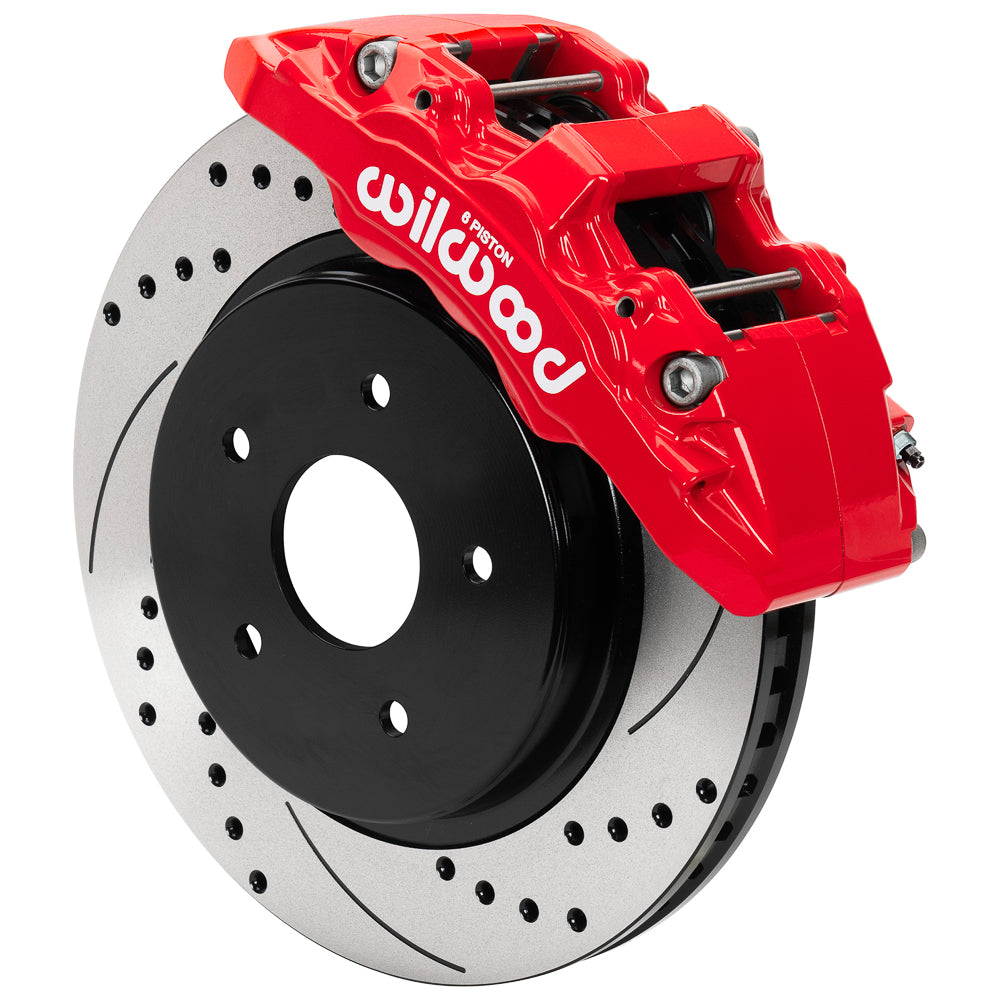

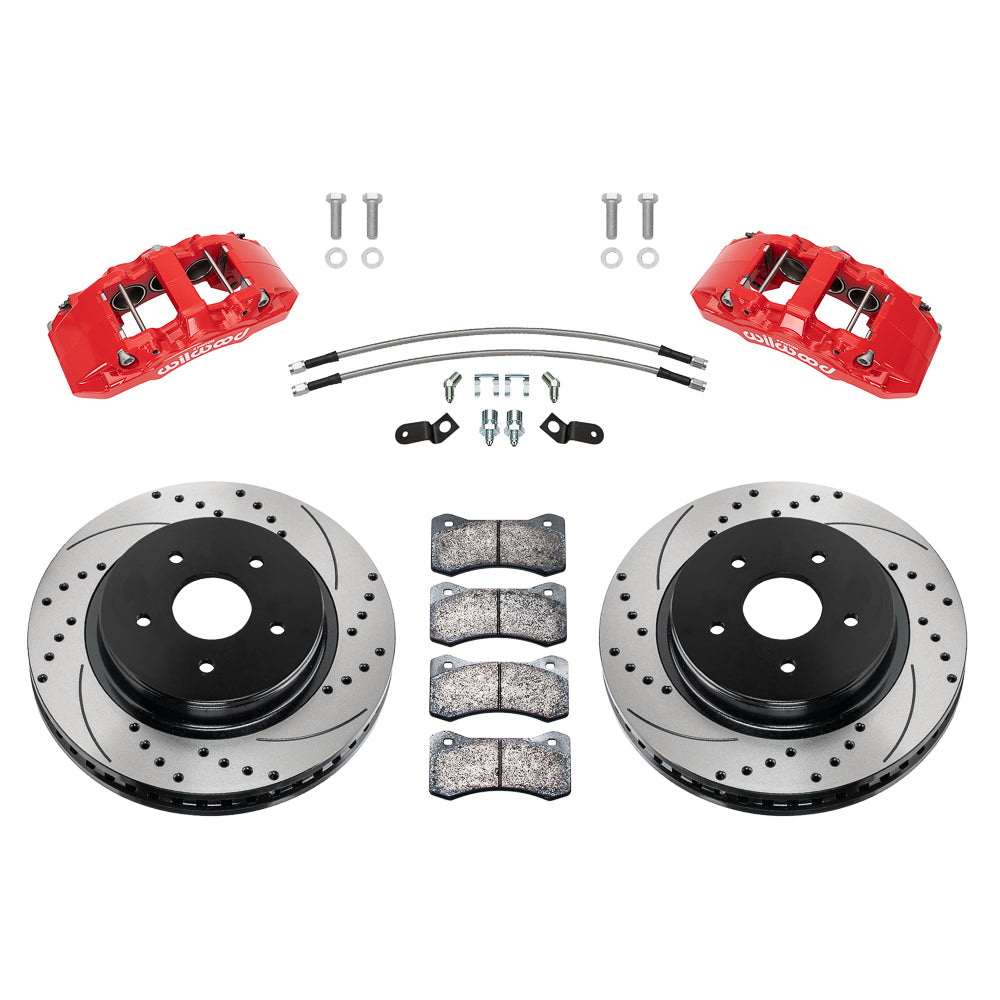

Red AERO6-DM calipers and 13.38-inch SRP rotors identify this Ram 1500 4WD front conversion. BP-22 pads and the hose set are included, and the direct-mount geometry must match the specified four-wheel-drive application. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems and components since Bill Wood founded the company in 1977. Its work spans motorsport, street-performance and specialized applications, with a product range covering master cylinders, calipers, brake rotors, valves, fittings and brake lines. These parts must be chosen for the requirements of the entire brake system.

Technical Details

• Manufacturer part number: 140-18208-DR
• Service calipers: AERODM; 6 pistons; lug mount; Red Powder Coat
• Brake rotors: 13.38 x 1.25 inches; Iron; SRP Drilled & Slotted; vented construction
• Pads: BP-22; piston material: Stainless
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 5 x 5.5 in; 5 x 139.7 mm; match the installed hub/axle pattern
• Hydraulic brake hoses: included; DOT-approved hose kit
• Wheel clearance: 17-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2013–2018 Ram 1500 four-wheel-drive applications only. Verify the trim and year in the table, including any gaps; this kit is not the corresponding two-wheel-drive package.

The direct-mount calipers and 13.38-inch one-piece rotor/hat assemblies must clear the installed wheels. Use the supplied 14-inch hose set and follow DS1593 for the four-wheel-drive kit; the two-wheel-drive part uses a different application.

Confirm the applicable vehicle entry and all numbered notes in the fitment table below.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): 220-18206 (14.00 in)
2. Front line-kit reference: 220-18206
