Wilwood Front Brake Kit for Ram 1500 4WD (2013–2018) — Black AERO6-DM, 13.38-Inch SRP Drilled/Slotted

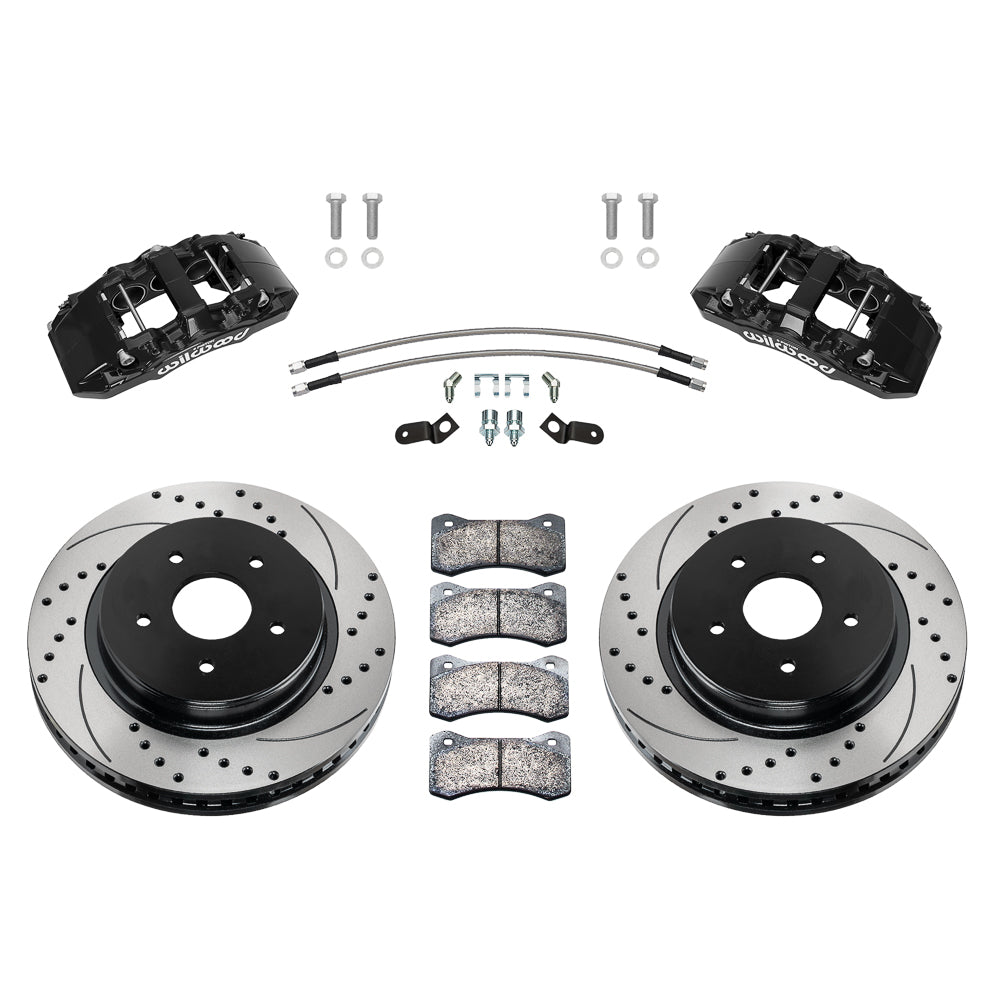

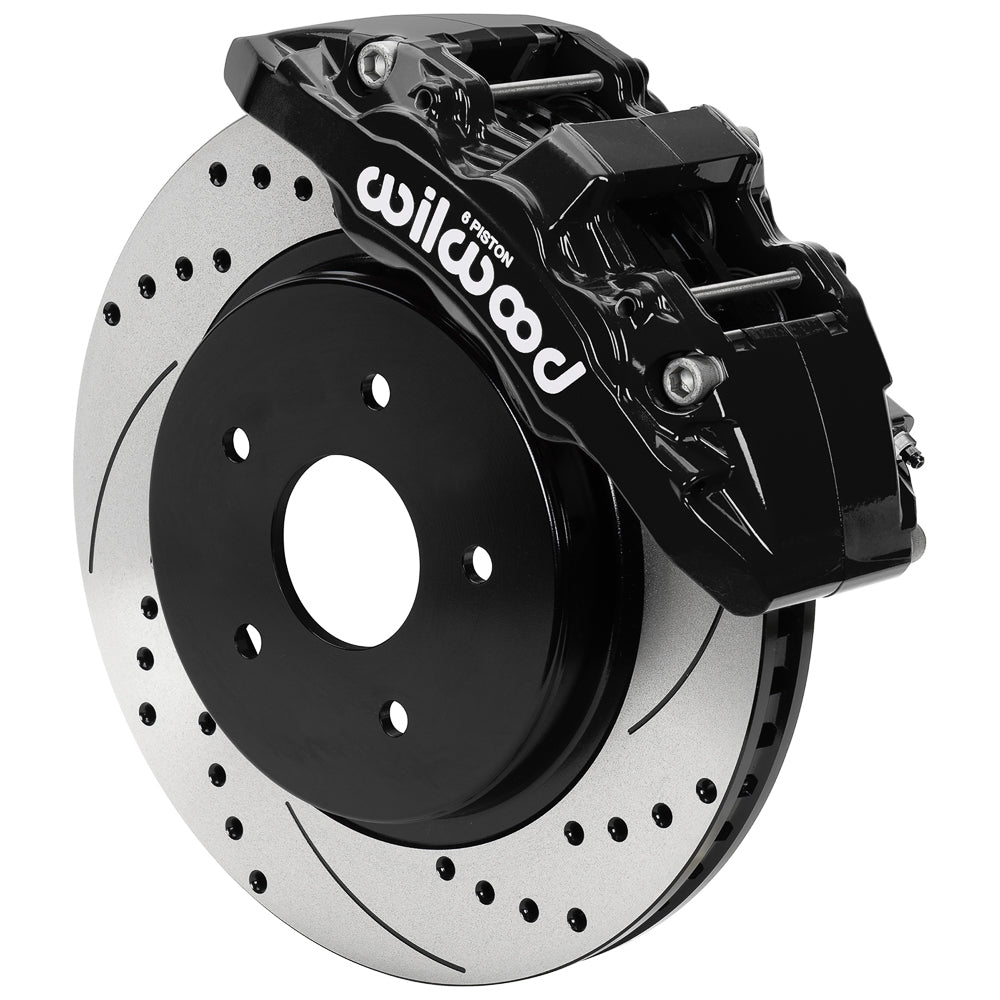

This black AERO6-DM front package pairs direct-mount six-piston calipers with drilled/slotted 13.38-inch SRP rotors. It is the Ram 1500 four-wheel-drive configuration, using one-piece iron rotor/hat assemblies and the included 14-inch hoses. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.

Technical Details

• Manufacturer part number: 140-18208-D
• Rotor specification: Iron, SRP Drilled & Slotted, vented; 13.38 x 1.25 inches
• Caliper specification: 6-piston AERODM in Black Powder Coat; lug mount
• Included service pad compound: BP-22; Stainless pistons
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 5 x 5.5 in; 5 x 139.7 mm; match the installed hub/axle pattern
• Hydraulic brake hoses: included; DOT-approved hose kit
• Wheel clearance: 17-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2013–2018 Ram 1500 four-wheel-drive applications only. Verify the trim and year in the table, including any gaps; this kit is not the corresponding two-wheel-drive package.

The direct-mount calipers and 13.38-inch one-piece rotor/hat assemblies must clear the installed wheels. Use the supplied 14-inch hose set and follow DS1593 for the four-wheel-drive kit; the two-wheel-drive part uses a different application.

Check the complete application table below, including its model-year splits and configuration notes.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): 220-18206 (14.00 in)
2. Front line-kit reference: 220-18206
