Wilwood Front Black TX6R Brake Conversion for Ram 1500 4WD (2013–2018), 16-Inch GT-Slotted Rotors

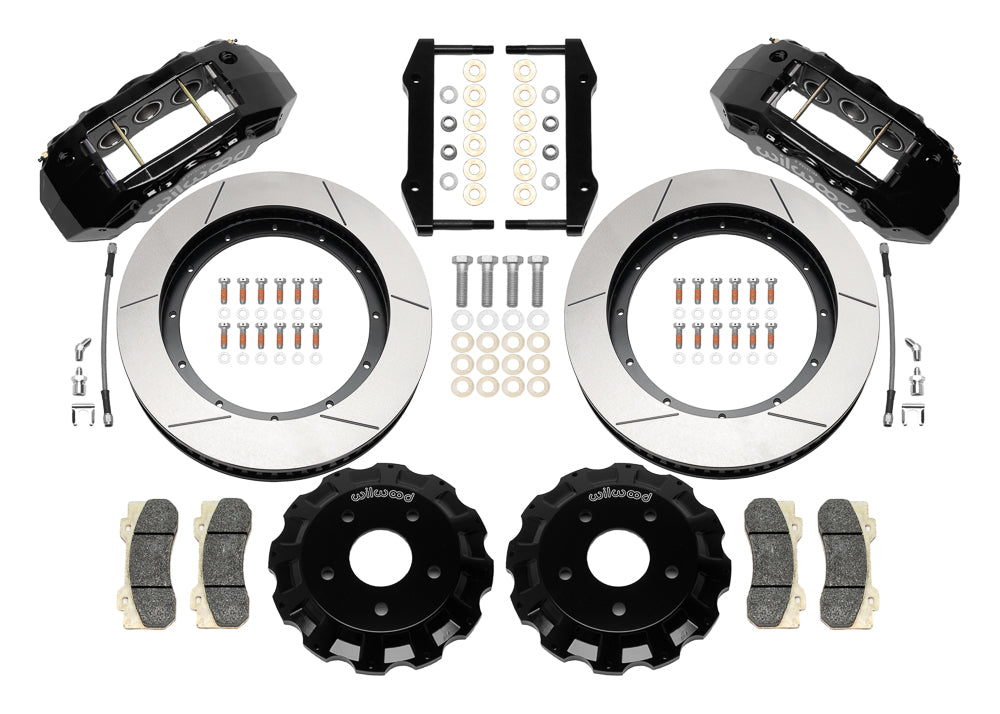

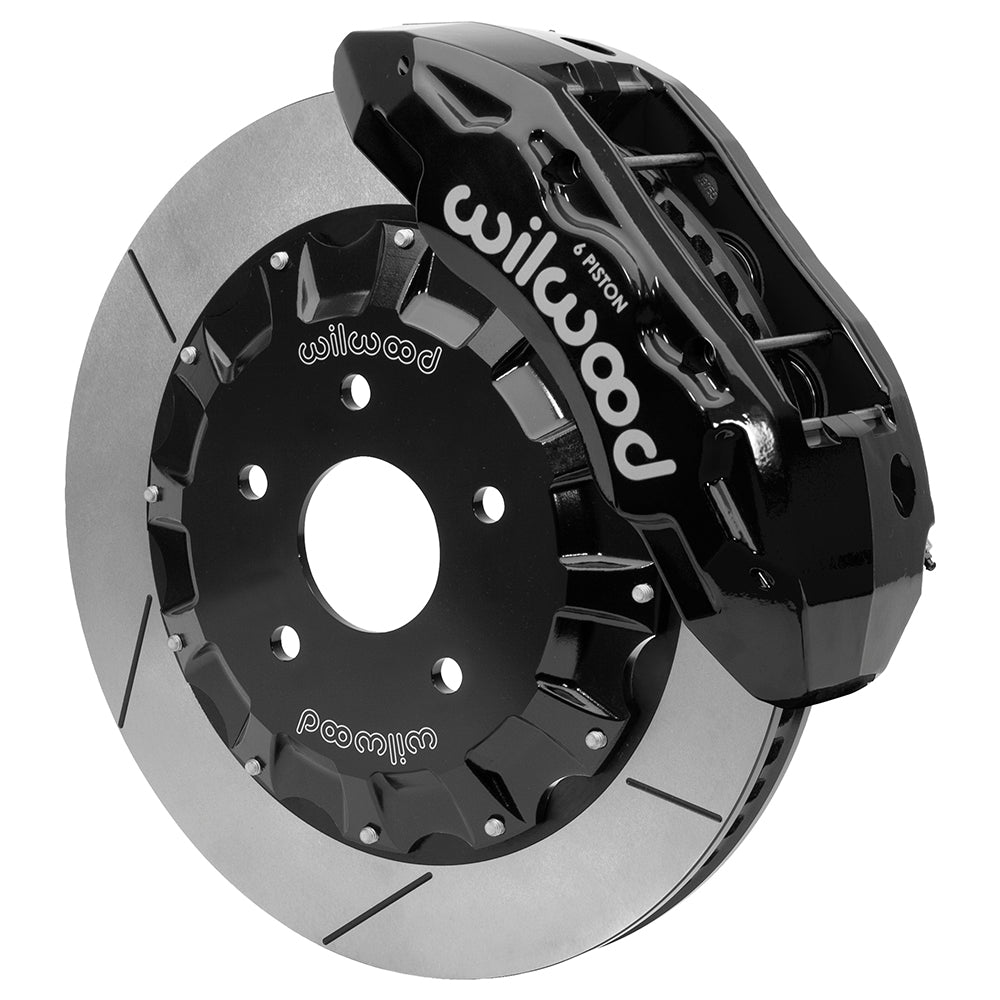

This black TX6R front kit supplies 16-inch GT-slotted iron rotors and six-piston calipers for listed Ram 1500 4WD models. BP-22 pads and a 14-inch hose set are included; the corresponding two-wheel-drive conversion is a different kit. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are all part of Wilwood Engineering’s range of disc brake systems and components. The Camarillo, California company was founded in 1977 by Bill Wood and designs and manufactures these products for motorsport, street-performance and specialized applications. Compatibility with the complete brake system determines the appropriate component choice.

Technical Details

• Manufacturer part number: 140-18207
• Service calipers: TX6R; 6 pistons; radial mount; Black Powder Coat
• Brake rotors: 16.00 x 1.38 inches; Iron; GT Slotted; vented construction
• Pads: BP-22; piston material: Stainless
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; 5 x 5.5 in; 5 x 139.7 mm; match the installed hub/axle pattern
• Hydraulic brake hoses: included; DOT-approved hose kit
• Wheel clearance: 20-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2013–2018 Ram 1500 four-wheel-drive applications only. Verify the trim and year in the table, including any gaps; this kit is not the corresponding two-wheel-drive package.

Check the 16-inch rotor package against Wilwood’s wheel-clearance diagram. Included 14-inch hydraulic hoses must be routed clear of wheels, steering and suspension components throughout their travel; retain the correct vehicle hub pattern.

Use the fitment table below to confirm the exact year, model, trim and installation notes.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): 220-18206 (14.00 in)
2. Front line-kit reference: 220-18206
