Wilwood Front GT-Slotted Lug-Drive Race Brake Kit — Chevrolet Corvette C8 (2020–2025), Type III Anodized 15-Inch AERO6R/ST

This Corvette C8 front race kit uses Type III anodized AERO6R/ST six-piston calipers with Thermlock pistons and BP-30 pads. Burnished 15-inch GT-slotted Spec-37 rotors mount through the dynamic Lug-Drive arrangement and forged hats supplied for the package. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems and components since Bill Wood founded the company in 1977. Its work spans motorsport, street-performance and specialized applications, with a product range covering master cylinders, calipers, brake rotors, valves, fittings and brake lines. These parts must be chosen for the requirements of the entire brake system.

Technical Details

• Manufacturer part number: 140-18191
• Service calipers: AERO6; 6 pistons; radial mount; Type III Anodize
• Brake rotors: 15.00 x 1.25 inches; Spec-37 Iron; GT Slotted; vented construction
• Pads: BP-30; piston material: Thermlock
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.72 in; 5 x 119.89 mm; match the installed hub/axle pattern
• Rotors supplied burnished; dynamic Lug-Drive mounting with forged hats
• Hydraulic brake hoses: included; DOT-approved hose kit
• Wheel clearance: 19-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

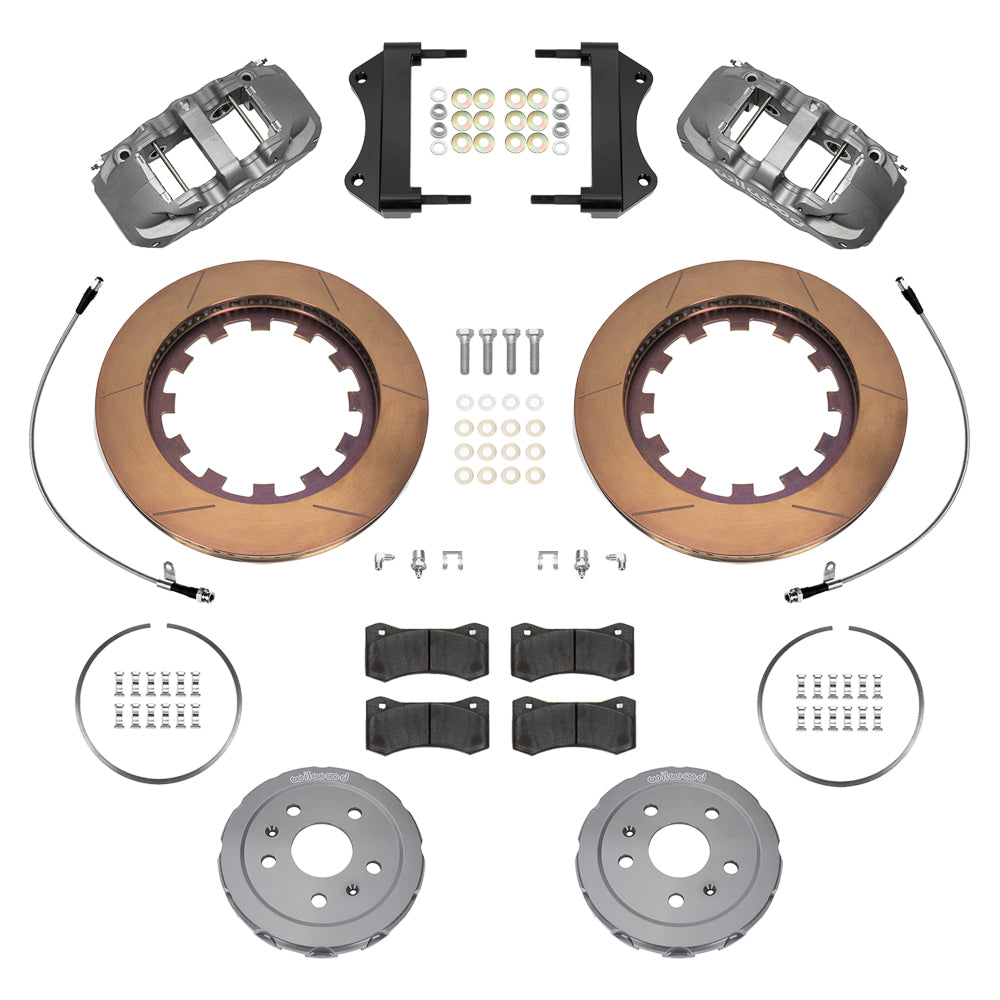

• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2020–2025 C8 Corvette applications, with separate year/trim entries for Stingray, Z06, E-Ray and ZR1. Confirm the original brake configuration and the wheel template for the particular car; the full model range does not imply that every trim appears in every year.

The supplied BP-30 pads are a high-temperature race compound. Extended use at low operating temperatures can cause premature rotor and pad wear; select the brake system and pad compound for the intended operating conditions. The kit includes the specified 24-inch hydraulic hose set. Follow the rotor assembly and bedding instructions, and verify brake balance before track use.

Use the fitment table below to confirm the exact year, model, trim and installation notes.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Application Notes

1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. Line kit included (manufacturer): 220-17008 (24.00 in)
3. Front line-kit reference: 220-17008
