Wilwood Rear GM Six-Lug 4x4 EPB Conversion (1971–1991), Black AERO4 & 14-Inch GT Rotors

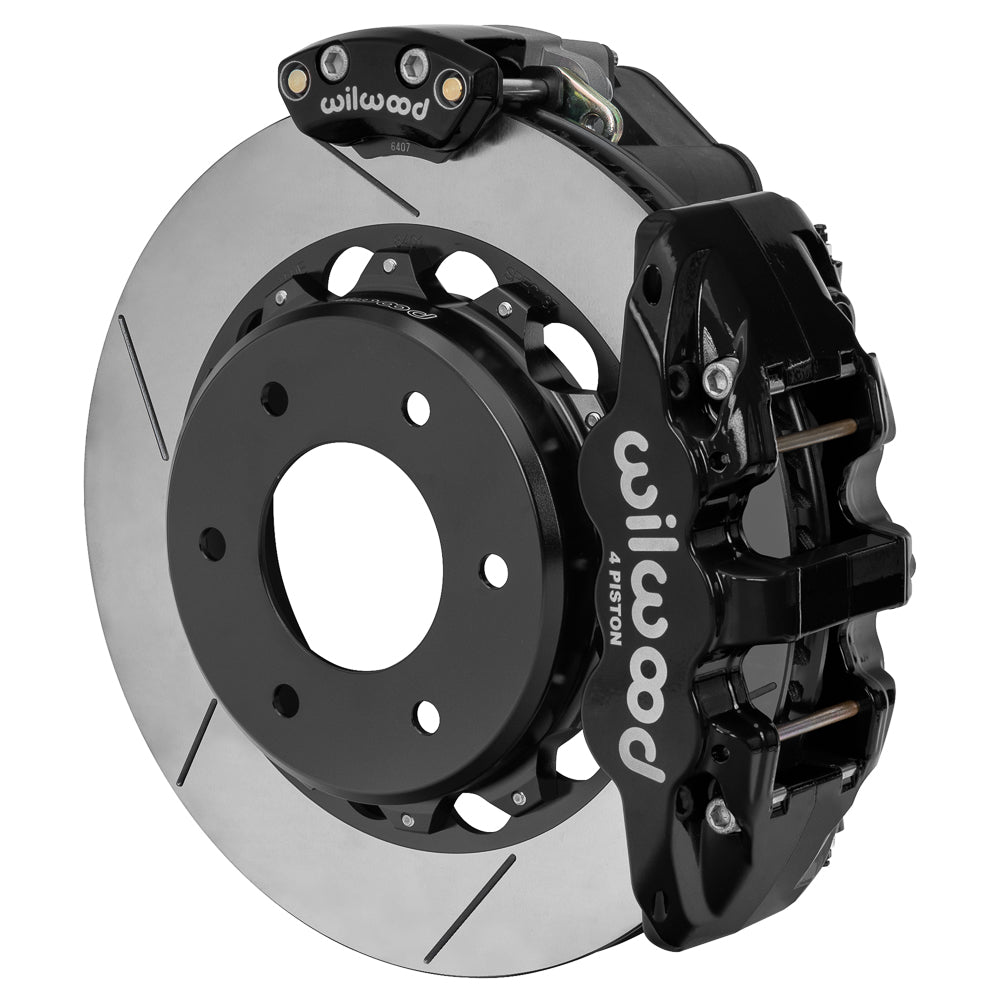

Black AERO4 service calipers and 14-inch GT-slotted rotors combine with separate electric parking calipers in this GM rear kit. The six-lug conversion supplies BP-10 pads and EPB controls for the specified 2.46-inch-offset axle geometry. Wilwood Engineering’s disc brake systems and components serve motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California. Wilwood designs and manufactures brake rotors and calipers as well as master cylinders, valves, brake lines and fittings. Selecting compatible components is essential to the complete system.

Technical Details

• Manufacturer part number: 140-18163
• Service calipers: AERO4; 4 pistons; radial mount; Black Powder Coat
• Brake rotors: 14.00 x 1.10 inches; Spec-37 Iron; GT Slotted; vented construction
• Pads: BP-10; piston material: Stainless
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
• Housing/flange application: K5 Blazer / K10
• Required axle offset: 2.46 in; 62.48 mm
• Parking equipment: separate electric calipers, controller and harness included
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 18-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

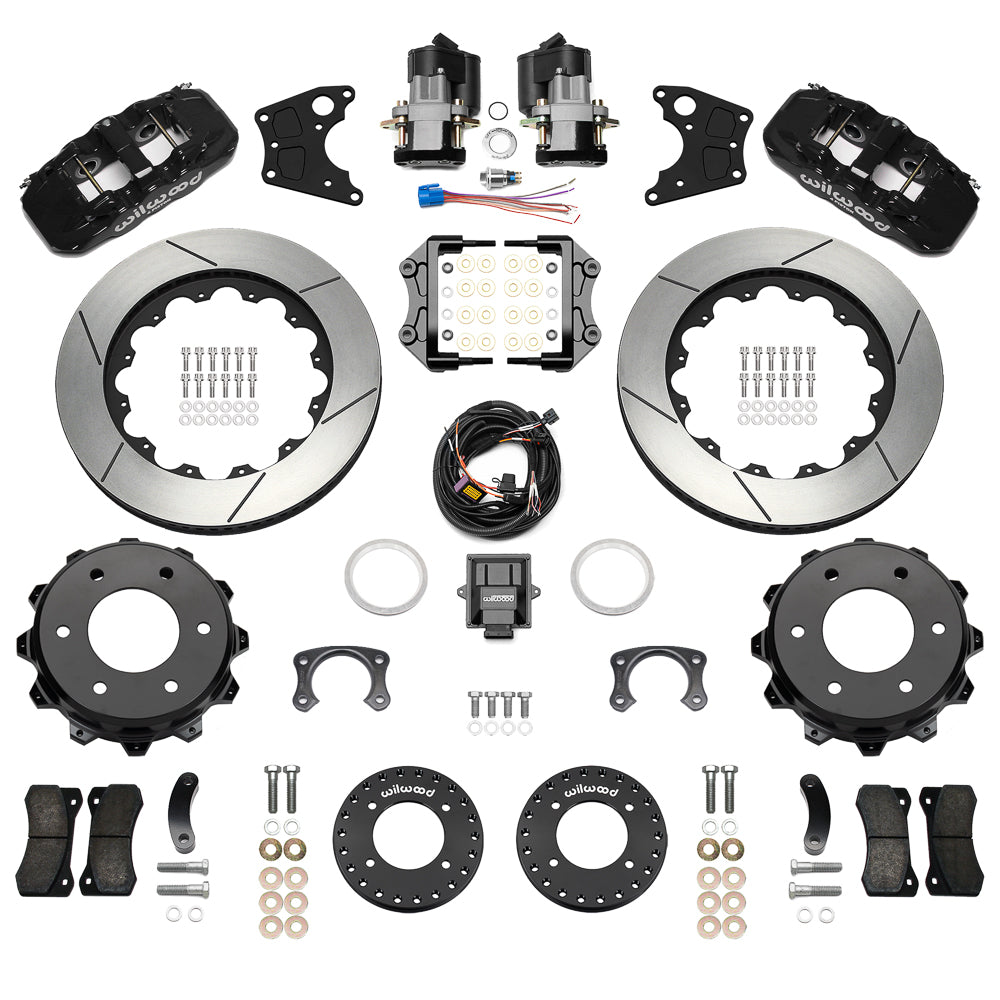

• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

Choose this 14-inch AERO4/EPB conversion only after matching the installed GM rear housing, six-lug pattern and 2.46-inch axle offset. Its K-series, Blazer/K5 Blazer, Jimmy and Suburban applications have individual year limits within the 1971–1991 range. The electric parking caliper adds a second clearance envelope alongside the hydraulic caliper.

Check the DS1678 axle drawing for the 3.55-inch register and 7.05-inch maximum flange diameter, including the 0.050-inch x 45-degree chamfer. The rotor/hat drilling must match the axle’s 6 x 5.5-inch wheel-stud pattern. Supply the hydraulic hoses and fittings separately, and install the included EPB control wiring as directed.

Use the fitment table below to confirm the exact year, model, trim and installation notes.

The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
