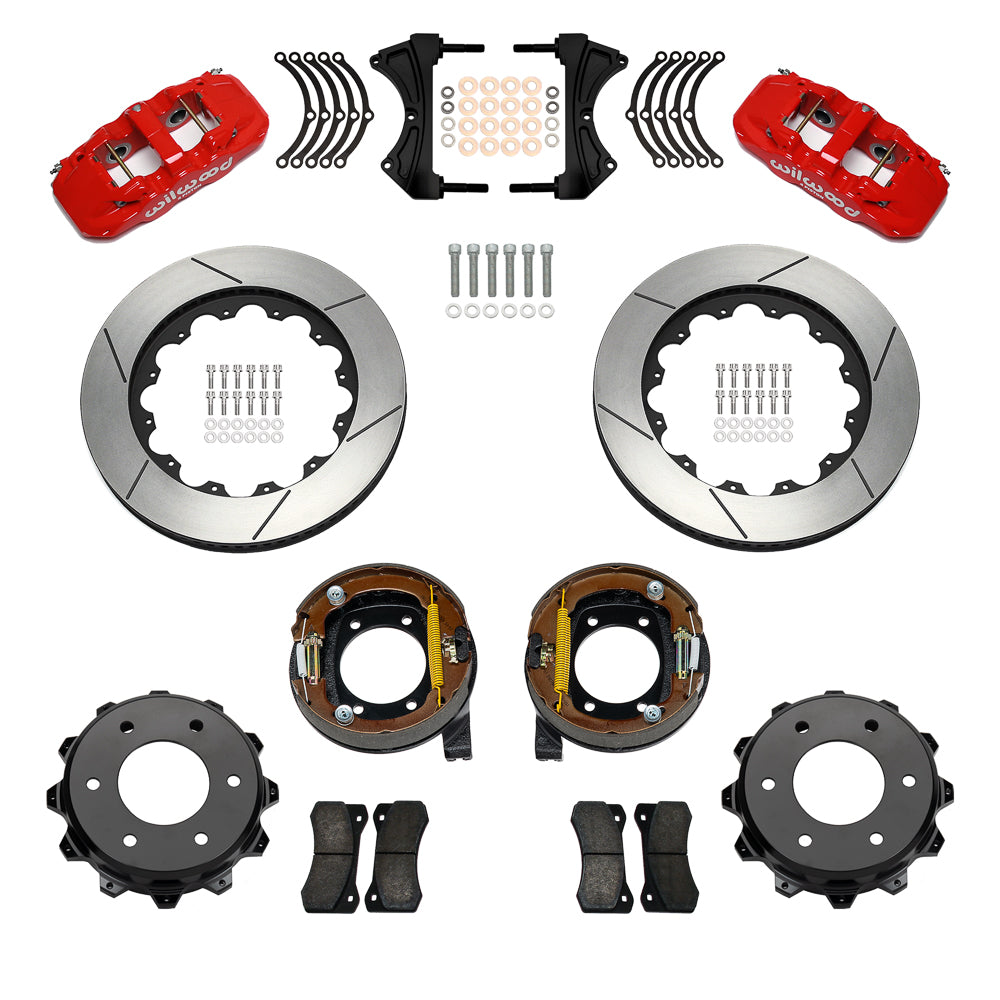

Wilwood rear AERO4 kit components for GM K-Series/Blazer/Jimmy 6-Lug 4x4, red calipers and 14-inch gt slotted rotors, with internal parking shoes

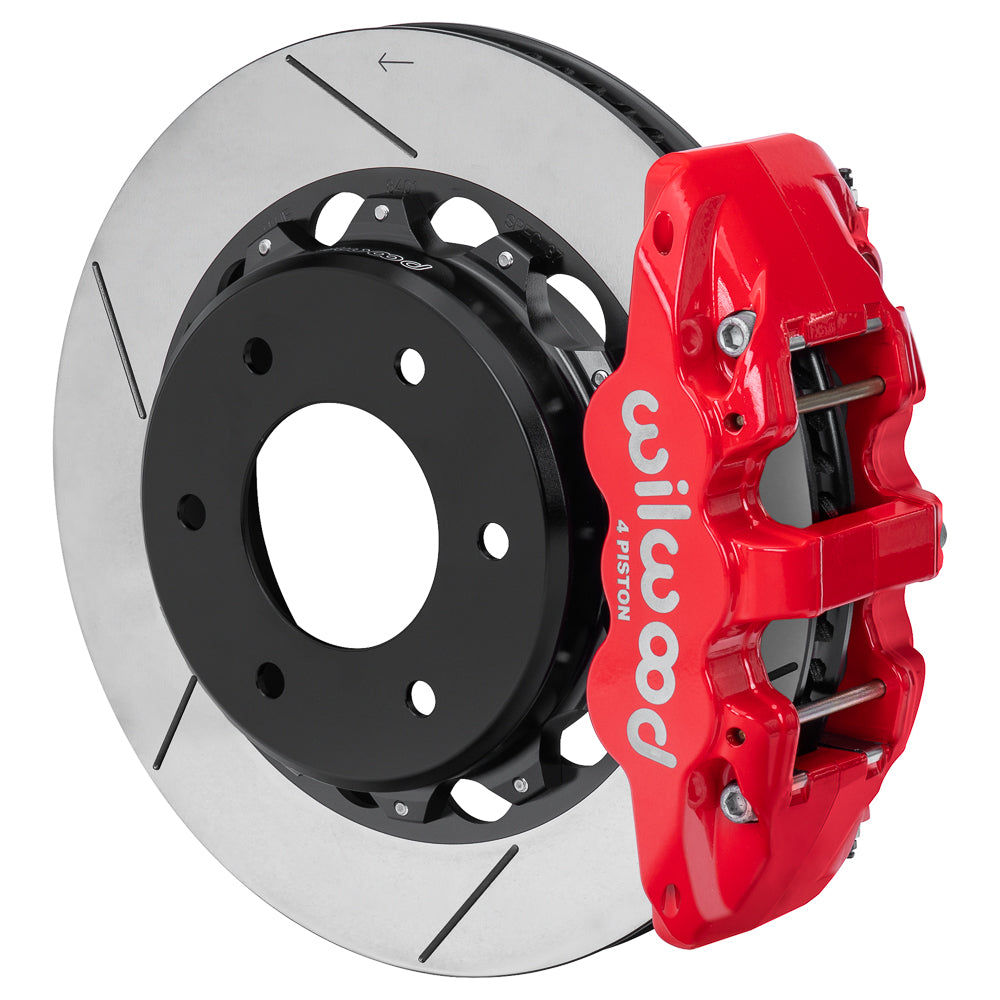

Wilwood rear AERO4 assembly for GM K-Series/Blazer/Jimmy 6-Lug 4x4, red caliper and 14-inch gt slotted rotor
Wilwood rear AERO4 kit components for GM K-Series/Blazer/Jimmy 6-Lug 4x4, red calipers and 14-inch gt slotted rotors, with internal parking shoes
Wilwood rear AERO4 assembly for GM K-Series/Blazer/Jimmy 6-Lug 4x4, red caliper and 14-inch gt slotted rotor

Wilwood Rear GT Brake Conversion for GM Six-Lug 4x4 (1971–1991), Red 14-Inch AERO4 with Parking Shoes

SKU: 140-18162-R

$2,591.21 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The red GT rear package brings 14-inch rotors and AERO4 four-piston calipers to a matching GM six-lug axle. Parking is handled by the supplied internal drum assemblies rather than electric auxiliary calipers. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977, the company also produces the individual calipers, brake rotors, master cylinders, valves, fittings and brake lines used in these installations. Selection should account for how each component works within the complete brake system.

Technical Details

  • Manufacturer part number: 140-18162-R
  • Rotor specification: Spec-37 Iron, GT Slotted, vented; 14.00 x 1.10 inches
  • Caliper specification: 4-piston AERO4 in Red Powder Coat; radial mount
  • Included service pad compound: BP-10; Stainless pistons
  • Caliper body material: Forged aluminum
  • Hydraulic inlet: 1/8-27 NPT
  • Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
  • Housing/flange application: K5 Blazer / K10
  • Required axle offset: 2.46 in; 62.48 mm
  • Parking brake: included internal drum/shoe assembly; cable and clevis hardware are not included
  • Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
  • Wheel clearance: 18-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
  • Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the red AERO4 and GT rotor combination, establish that the vehicle has the specified K5 Blazer/K10 rear flange and 2.46-inch axle offset. Coverage is limited to the individual six-lug Chevrolet/GMC 4x4 entries in the table, including their K-series, Suburban, Blazer and Jimmy year splits within 1971–1991.

Check the axle dimensions in DS1677 before fitting the 14-inch assembly. Its center register is 3.55 inches and the lug layout is 6 x 5.5 inches; the flange limit is 7.05 inches with a 0.050-inch, 45-degree chamfer. The enclosed parking shoes need vehicle-appropriate cables and clevises, which are not supplied. Hydraulic lines are also purchased separately.

The table below provides the full application breakdown; match its year, model and brake-configuration details.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1971-1974, 1987-1991 Chevrolet Blazer 4 x 4 Disc Drum Rear Kit 1
1971-1991 GMC Jimmy 4 x 4 Disc Drum Rear Kit 1
1971-1974 GMC K15/K1500 Pickup 4 x 4 Disc Drum Rear Kit 1
1971-1974 GMC K15/K1500 Suburban 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K10 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K10 Suburban 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K5 Blazer 4 x 4 Disc Drum Rear Kit 1
1975-1978 GMC K15 4 x 4 Disc Drum Rear Kit 1
1975-1978 GMC K15 Suburban 4 x 4 Disc Drum Rear Kit 1
1979-1986 GMC K1500 4 x 4 Disc Drum Rear Kit 1
1979 GMC K1500 Suburban 4 x 4 Disc Drum Rear Kit 1
1980-1986 GMC K1500 Suburban 4 x 4 Disc Drum Rear Kit 1

Application Notes

  1. Line kit included (manufacturer): None
