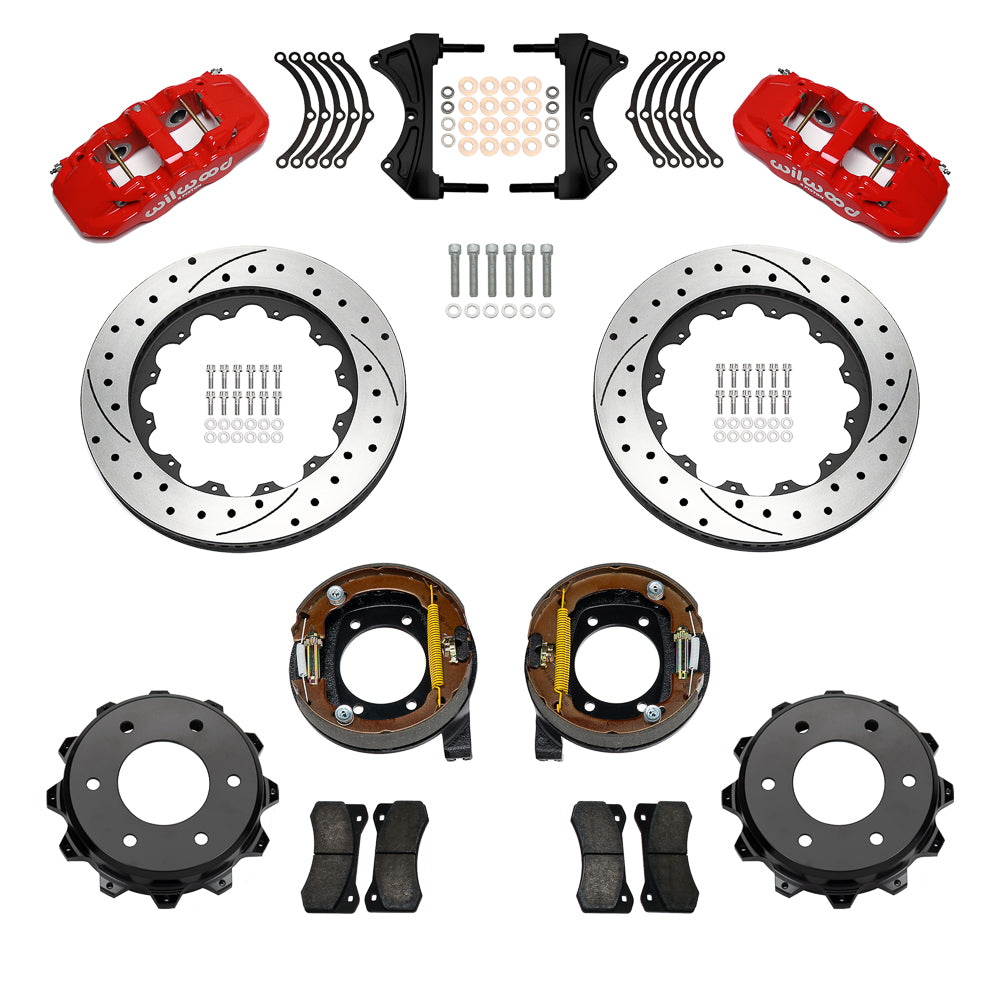

Wilwood rear AERO4 kit components for GM K-Series/Blazer/Jimmy 6-Lug 4x4, red calipers and 14-inch srp drilled and slotted rotors, with internal parking shoes

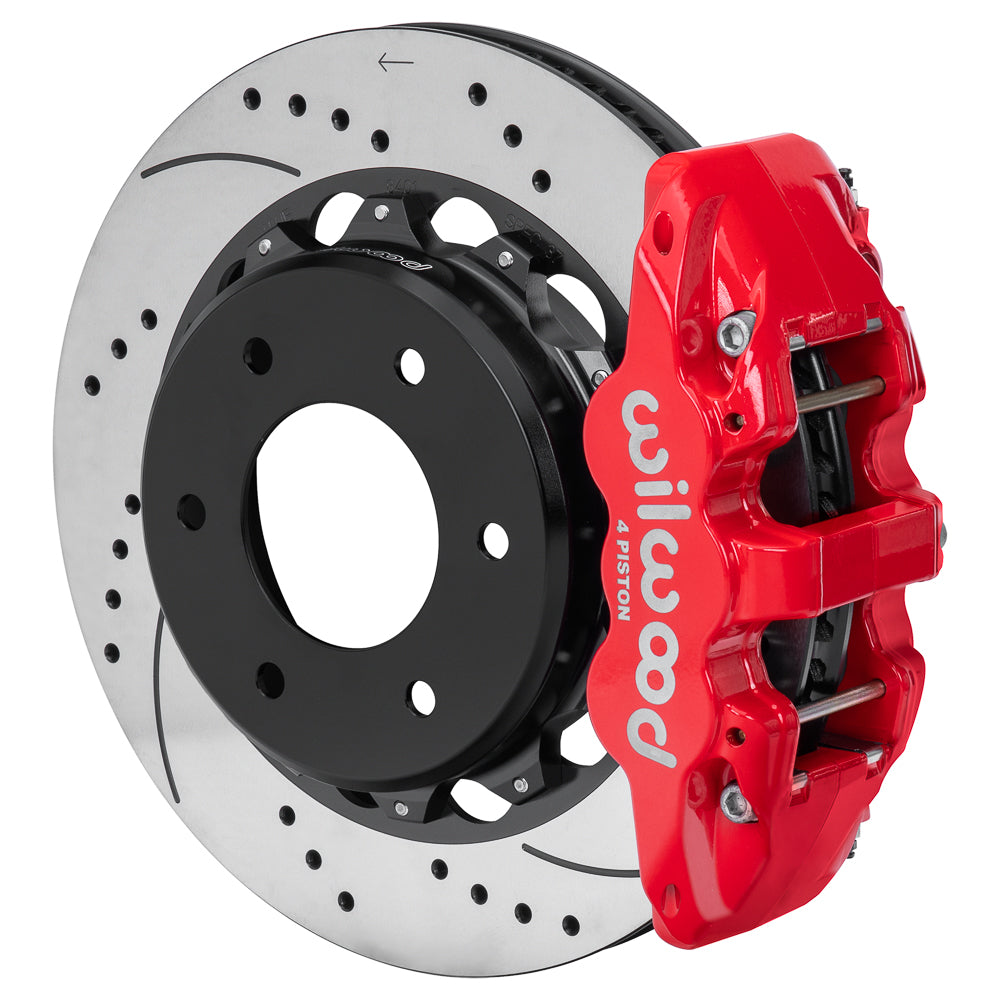

Wilwood rear AERO4 assembly for GM K-Series/Blazer/Jimmy 6-Lug 4x4, red caliper and 14-inch srp drilled and slotted rotor
Wilwood rear AERO4 kit components for GM K-Series/Blazer/Jimmy 6-Lug 4x4, red calipers and 14-inch srp drilled and slotted rotors, with internal parking shoes
Wilwood rear AERO4 assembly for GM K-Series/Blazer/Jimmy 6-Lug 4x4, red caliper and 14-inch srp drilled and slotted rotor

Wilwood Rear Red AERO4 Mechanical Parking Kit — GM Six-Lug 4x4 (1971–1991), 14-Inch Drilled/Slotted Rotors

SKU: 140-18162-DR

$2,591.21 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red AERO4 calipers sit over 14-inch SRP rotors in this six-lug GM rear conversion. The package includes internal parking-brake shoes, and its 2.46-inch axle-offset requirement must be checked against the installed housing. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

  • Manufacturer part number: 140-18162-DR
  • Service calipers: AERO4; 4 pistons; radial mount; Red Powder Coat
  • Brake rotors: 14.00 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented construction
  • Pads: BP-10; piston material: Stainless
  • Caliper body material: Forged aluminum
  • Hydraulic inlet: 1/8-27 NPT
  • Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
  • Housing/flange application: K5 Blazer / K10
  • Required axle offset: 2.46 in; 62.48 mm
  • Parking brake: included internal drum/shoe assembly; cable and clevis hardware are not included
  • Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
  • Wheel clearance: 18-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
  • Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

The 14-inch AERO4 rear kit includes internal parking shoes and requires the listed GM six-lug axle housing at 2.46-inch offset. It applies only to the corresponding year/model entries for K-series, Blazer/K5 Blazer, Jimmy and Suburban vehicles within 1971–1991. A compatible cable arrangement is needed to actuate the parking shoes.

Consult DS1677 for the housing dimensions and rotor-hat installation. Required axle measurements include a 3.55-inch register and 6 x 5.5-inch stud pattern; the flange limit is 7.05 inches with a 0.050-inch x 45-degree chamfer. Obtain the appropriate parking cables/clevis connections and hydraulic hoses separately.

Confirm the applicable vehicle entry and all numbered notes in the fitment table below.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1971-1974, 1987-1991 Chevrolet Blazer 4 x 4 Disc Drum Rear Kit 1
1971-1991 GMC Jimmy 4 x 4 Disc Drum Rear Kit 1
1971-1974 GMC K15/K1500 Pickup 4 x 4 Disc Drum Rear Kit 1
1971-1974 GMC K15/K1500 Suburban 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K10 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K10 Suburban 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K5 Blazer 4 x 4 Disc Drum Rear Kit 1
1975-1978 GMC K15 4 x 4 Disc Drum Rear Kit 1
1975-1978 GMC K15 Suburban 4 x 4 Disc Drum Rear Kit 1
1979-1986 GMC K1500 4 x 4 Disc Drum Rear Kit 1
1979 GMC K1500 Suburban 4 x 4 Disc Drum Rear Kit 1
1980-1986 GMC K1500 Suburban 4 x 4 Disc Drum Rear Kit 1

Application Notes

  1. Line kit included (manufacturer): None
