Wilwood Rear FDLI Electric Parking Conversion for GM Six-Lug 4x4 (1971–1991), Black 12.19-Inch GT

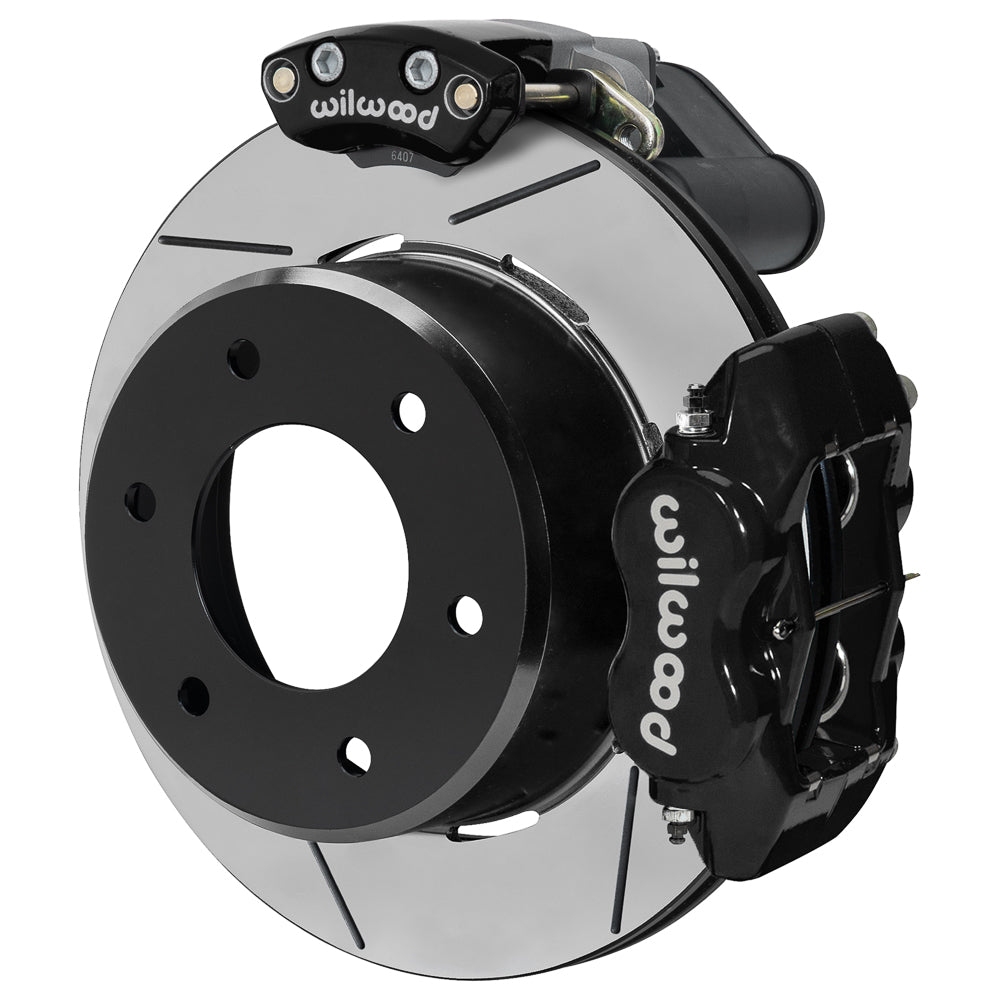

This black FDLI rear conversion combines 12.19-inch GT-slotted rotor/hat assemblies with electric parking calipers for compatible GM six-lug axles. The four-piston hydraulic service brakes use BP-10 pads, and the EPB controller and harness are supplied. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are all part of Wilwood Engineering’s range of disc brake systems and components. The Camarillo, California company was founded in 1977 by Bill Wood and designs and manufactures these products for motorsport, street-performance and specialized applications. Compatibility with the complete brake system determines the appropriate component choice.

Technical Details

• Manufacturer part number: 140-18159
• Service calipers: Forged Dynalite Internal; 4 pistons; lug mount; Black Powder Coat
• Brake rotors: 12.19 x 0.81 inches; Iron; GT Slotted; vented construction
• Pads: BP-10; piston material: Stainless
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
• Housing/flange application: K5 Blazer / K10
• Required axle offset: 2.46 in; 62.48 mm

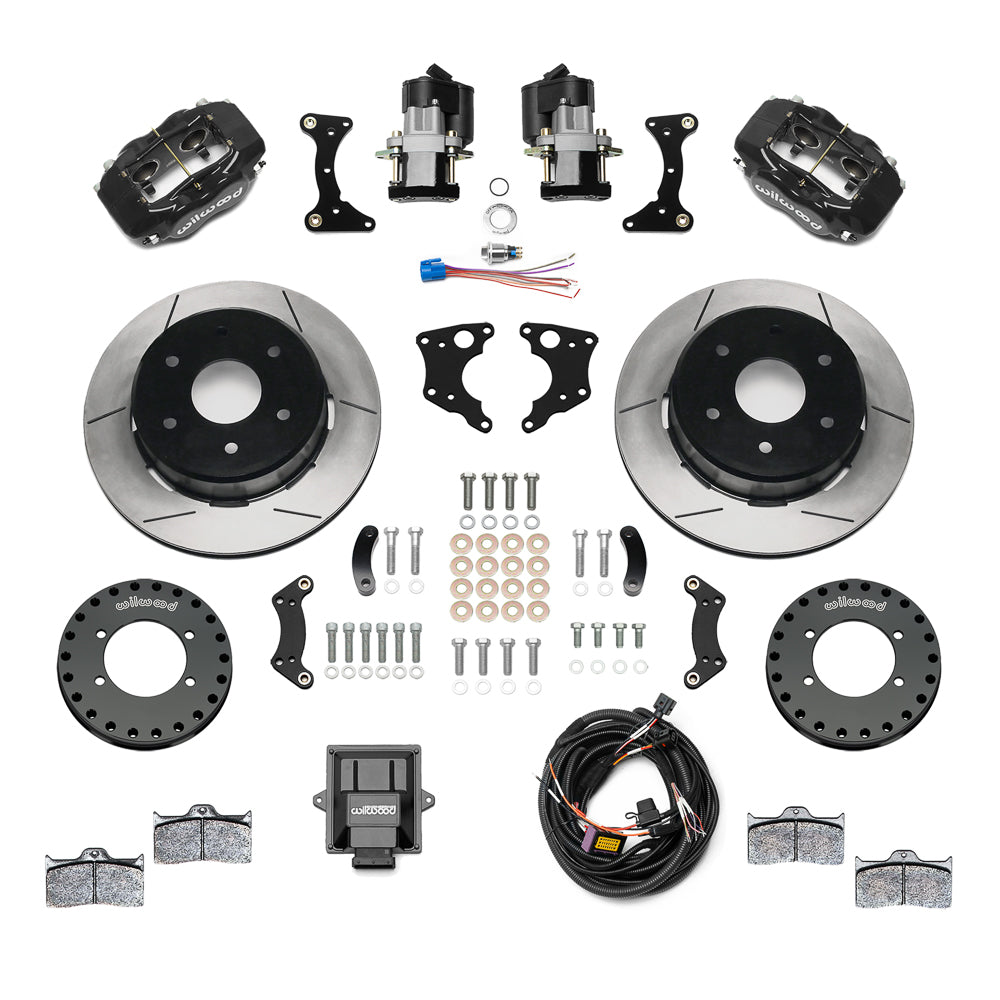

• Parking equipment: separate electric calipers, controller and harness included
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 15-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 1971–1991 GM six-lug 4x4 rear applications, this 12.19-inch FDLI conversion adds electric parking brakes. K-series pickups and Suburbans, Blazer/K5 Blazer and Jimmy each have their own year qualifications. Check the actual housing flange and 2.46-inch offset, particularly if the axle has been changed.

The rear axle must provide the documented 3.55-inch register and 6 x 5.5-inch stud pattern. DS1674 limits flange diameter to 7.05 inches with a 0.050-inch x 45-degree chamfer. Hydraulic hoses/fittings are additional items; allow room for the separate electric calipers and route the supplied parking-brake wiring according to the manual.

Use the fitment table below to confirm the exact year, model, trim and installation notes.

The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
