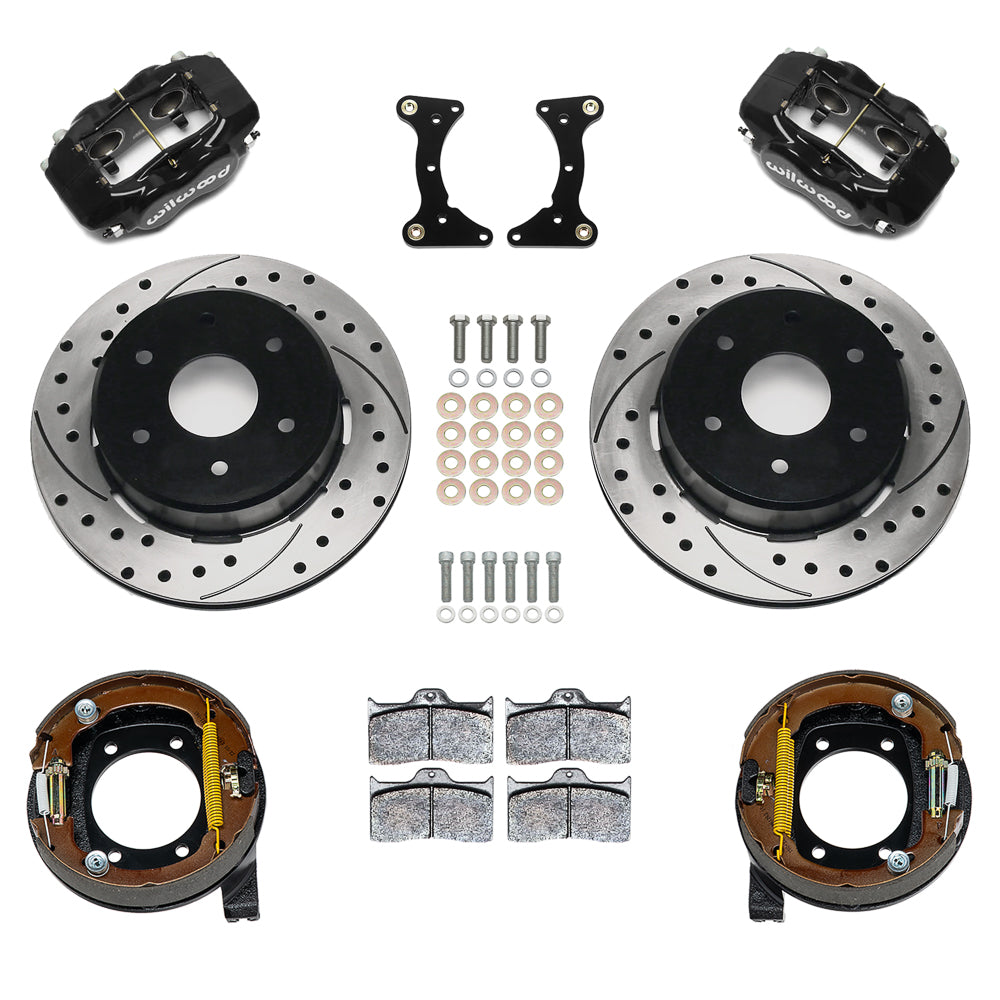

Wilwood rear Forged Dynalite Internal kit components for GM K-Series/Blazer/Jimmy 6-Lug 4x4, black calipers and 12.19-inch srp drilled and slotted rotors, with internal parking shoes

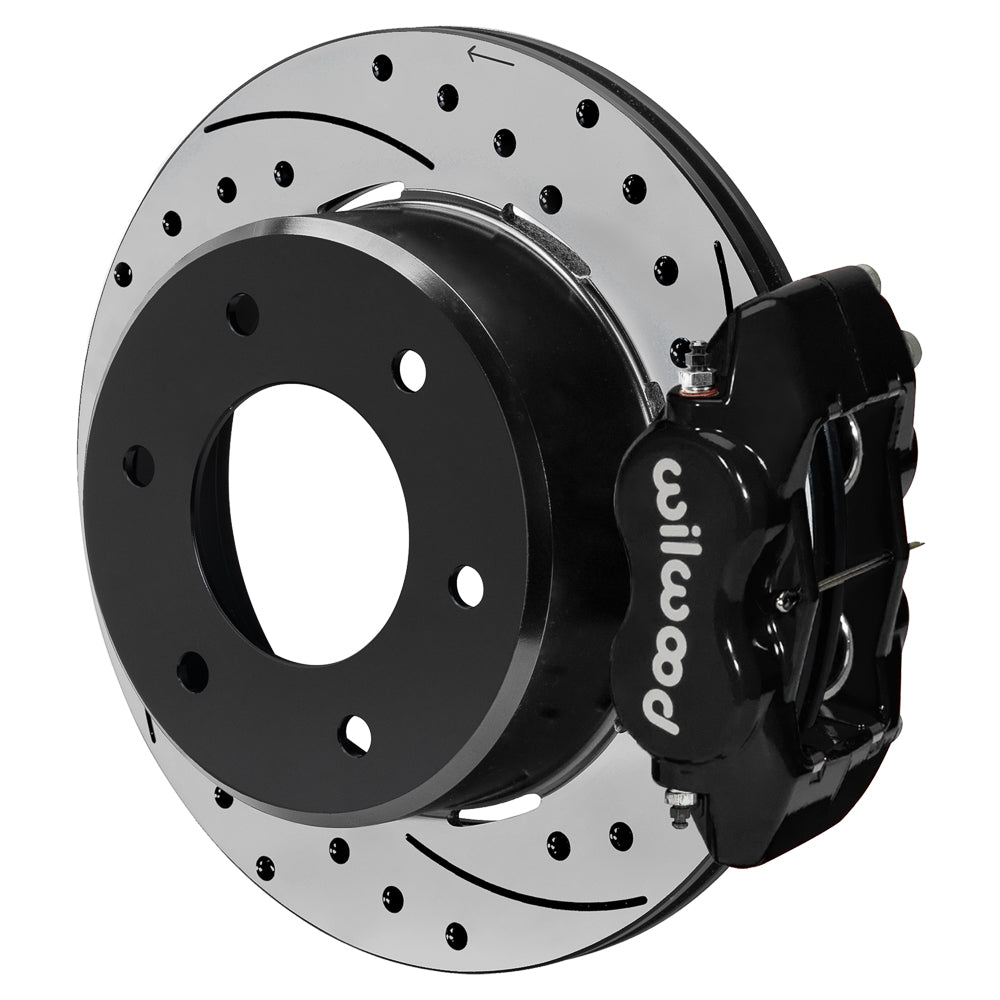

Wilwood rear Forged Dynalite Internal assembly for GM K-Series/Blazer/Jimmy 6-Lug 4x4, black caliper and 12.19-inch srp drilled and slotted rotor
Wilwood rear Forged Dynalite Internal kit components for GM K-Series/Blazer/Jimmy 6-Lug 4x4, black calipers and 12.19-inch srp drilled and slotted rotors, with internal parking shoes
Wilwood rear Forged Dynalite Internal assembly for GM K-Series/Blazer/Jimmy 6-Lug 4x4, black caliper and 12.19-inch srp drilled and slotted rotor

Wilwood Rear GM Six-Lug 4x4 SRP Brakes (1971–1991), Black FDLI with 12.19-Inch Rotors & Parking Shoes

SKU: 140-18158-D

$1,274.68 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This black FDLI rear conversion uses 12.19-inch SRP drilled-and-slotted rotor/hat assemblies for the specified GM axle flange. Four-piston service calipers and internal parking shoes provide separate hydraulic and mechanical brake functions. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977, the company also produces the individual calipers, brake rotors, master cylinders, valves, fittings and brake lines used in these installations. Selection should account for how each component works within the complete brake system.

Technical Details

  • Manufacturer part number: 140-18158-D
  • Rotor specification: Iron, SRP Drilled & Slotted, vented; 12.19 x 0.81 inches
  • Caliper specification: 4-piston Forged Dynalite Internal in Black Powder Coat; lug mount
  • Included service pad compound: BP-10; Stainless pistons
  • Caliper body material: Forged aluminum
  • Hydraulic inlet: 1/8-27 NPT
  • Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
  • Housing/flange application: K5 Blazer / K10
  • Required axle offset: 2.46 in; 62.48 mm
  • Parking brake: included internal drum/shoe assembly; cable and clevis hardware are not included
  • Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
  • Wheel clearance: 15-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
  • Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

The FDLI package fits the documented GM six-lug rear flange at a 2.46-inch axle offset. Confirm the exact 1971–1991 K-series, Blazer/K5 Blazer, Jimmy or Suburban row and check the installed axle rather than relying on the badge. Its 12.19-inch rotor/hat assembly includes a drum for the supplied mechanical parking shoes.

Use DS1673 to compare the housing bolt layout, 3.55-inch axle register and 6 x 5.5-inch lug pattern. The axle flange must be no larger than 7.05 inches and must have the specified 0.050-inch x 45-degree chamfer. Arrange the hydraulic hoses and parking cable/clevis hardware separately before disassembly.

Check the complete application table below, including its model-year splits and configuration notes.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1971-1974, 1987-1991 Chevrolet Blazer 4 x 4 Disc Drum Rear Kit 1
1971-1991 GMC Jimmy 4 x 4 Disc Drum Rear Kit 1
1971-1974 GMC K15/K1500 Pickup 4 x 4 Disc Drum Rear Kit 1
1971-1974 GMC K15/K1500 Suburban 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K10 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K10 Suburban 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K5 Blazer 4 x 4 Disc Drum Rear Kit 1
1975-1978 GMC K15 4 x 4 Disc Drum Rear Kit 1
1975-1978 GMC K15 Suburban 4 x 4 Disc Drum Rear Kit 1
1979-1986 GMC K1500 4 x 4 Disc Drum Rear Kit 1
1979 GMC K1500 Suburban 4 x 4 Disc Drum Rear Kit 1
1980-1986 GMC K1500 Suburban 4 x 4 Disc Drum Rear Kit 1

Application Notes

  1. Line kit included (manufacturer): None
