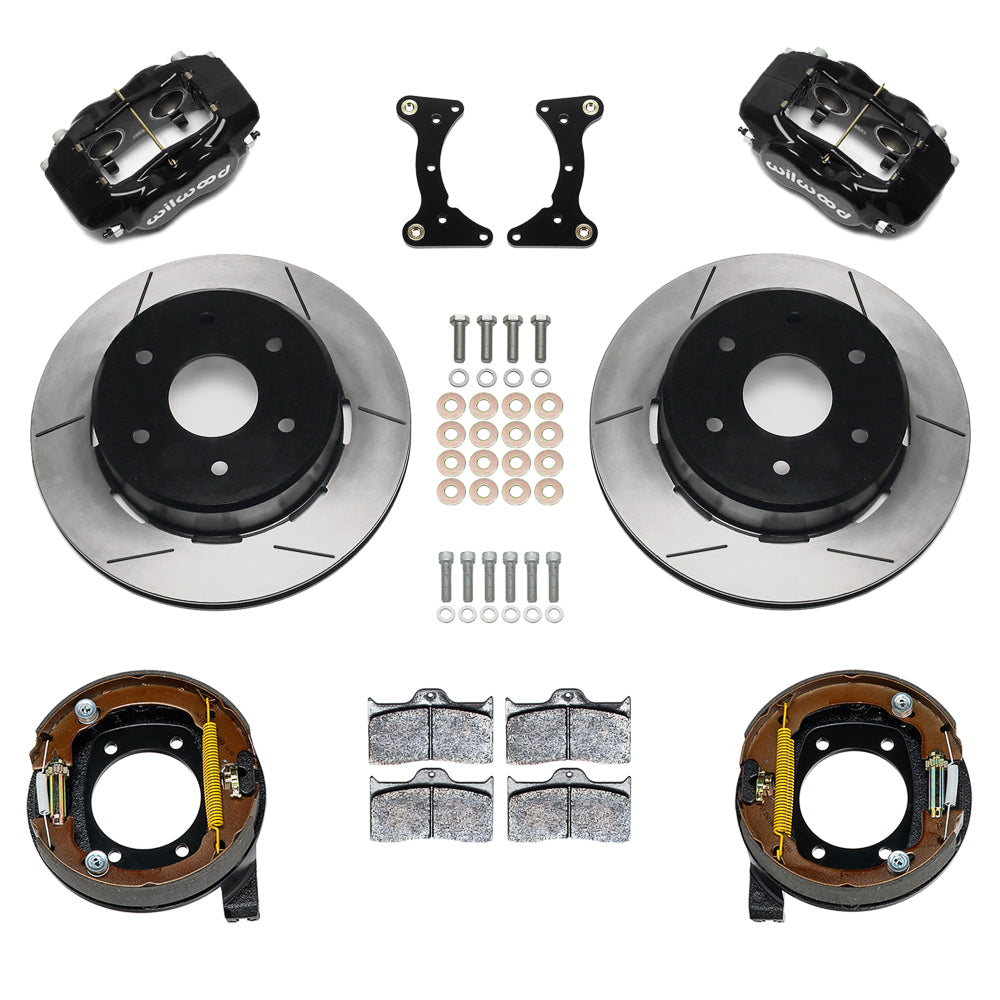

Wilwood rear Forged Dynalite Internal kit components for GM K-Series/Blazer/Jimmy 6-Lug 4x4, black calipers and 12.19-inch gt slotted rotors, with internal parking shoes

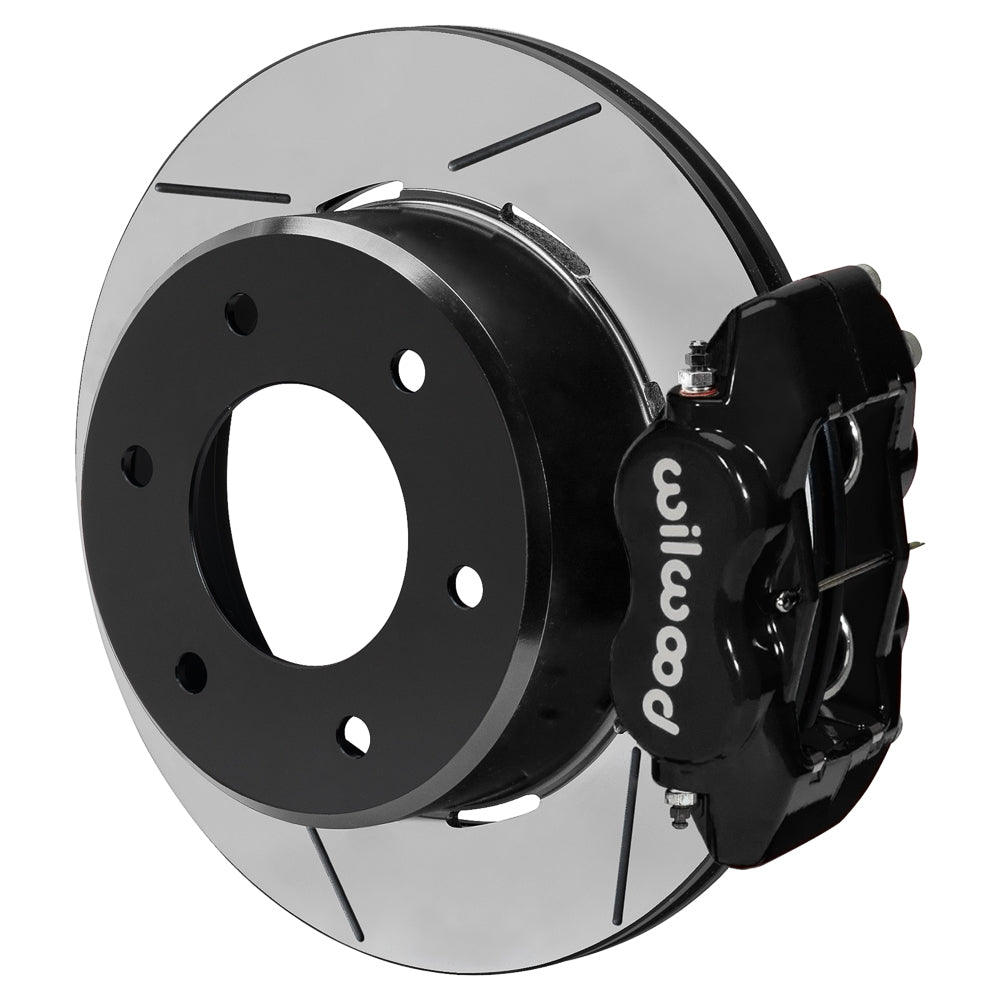

Wilwood rear Forged Dynalite Internal assembly for GM K-Series/Blazer/Jimmy 6-Lug 4x4, black caliper and 12.19-inch gt slotted rotor
Wilwood rear Forged Dynalite Internal kit components for GM K-Series/Blazer/Jimmy 6-Lug 4x4, black calipers and 12.19-inch gt slotted rotors, with internal parking shoes
Wilwood rear Forged Dynalite Internal assembly for GM K-Series/Blazer/Jimmy 6-Lug 4x4, black caliper and 12.19-inch gt slotted rotor

Wilwood Rear Black Dynalite Parking Brake Kit — GM Six-Lug 4x4 (1971–1991), 12.19-Inch GT

SKU: 140-18158

$1,132.36 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black Forged Dynalite Internal calipers and 12.19-inch GT-slotted rotor/hat assemblies form this GM six-lug rear kit. Included drum-in-hat parking shoes operate mechanically, with cables and clevis hardware selected separately. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

  • Manufacturer part number: 140-18158
  • Service calipers: Forged Dynalite Internal; 4 pistons; lug mount; Black Powder Coat
  • Brake rotors: 12.19 x 0.81 inches; Iron; GT Slotted; vented construction
  • Pads: BP-10; piston material: Stainless
  • Caliper body material: Forged aluminum
  • Hydraulic inlet: 1/8-27 NPT
  • Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
  • Housing/flange application: K5 Blazer / K10
  • Required axle offset: 2.46 in; 62.48 mm
  • Parking brake: included internal drum/shoe assembly; cable and clevis hardware are not included
  • Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
  • Wheel clearance: 15-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
  • Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

The FDLI package fits the documented GM six-lug rear flange at a 2.46-inch axle offset. Confirm the exact 1971–1991 K-series, Blazer/K5 Blazer, Jimmy or Suburban row and check the installed axle rather than relying on the badge. Its 12.19-inch rotor/hat assembly includes a drum for the supplied mechanical parking shoes.

Use DS1673 to compare the housing bolt layout, 3.55-inch axle register and 6 x 5.5-inch lug pattern. The axle flange must be no larger than 7.05 inches and must have the specified 0.050-inch x 45-degree chamfer. Arrange the hydraulic hoses and parking cable/clevis hardware separately before disassembly.

Use the fitment table below to confirm the exact year, model, trim and installation notes.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1971-1974, 1987-1991 Chevrolet Blazer 4 x 4 Disc Drum Rear Kit 1
1971-1991 GMC Jimmy 4 x 4 Disc Drum Rear Kit 1
1971-1974 GMC K15/K1500 Pickup 4 x 4 Disc Drum Rear Kit 1
1971-1974 GMC K15/K1500 Suburban 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K10 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K10 Suburban 4 x 4 Disc Drum Rear Kit 1
1975-1986 Chevrolet K5 Blazer 4 x 4 Disc Drum Rear Kit 1
1975-1978 GMC K15 4 x 4 Disc Drum Rear Kit 1
1975-1978 GMC K15 Suburban 4 x 4 Disc Drum Rear Kit 1
1979-1986 GMC K1500 4 x 4 Disc Drum Rear Kit 1
1979 GMC K1500 Suburban 4 x 4 Disc Drum Rear Kit 1
1980-1986 GMC K1500 Suburban 4 x 4 Disc Drum Rear Kit 1

Application Notes

  1. Line kit included (manufacturer): None
