Product details

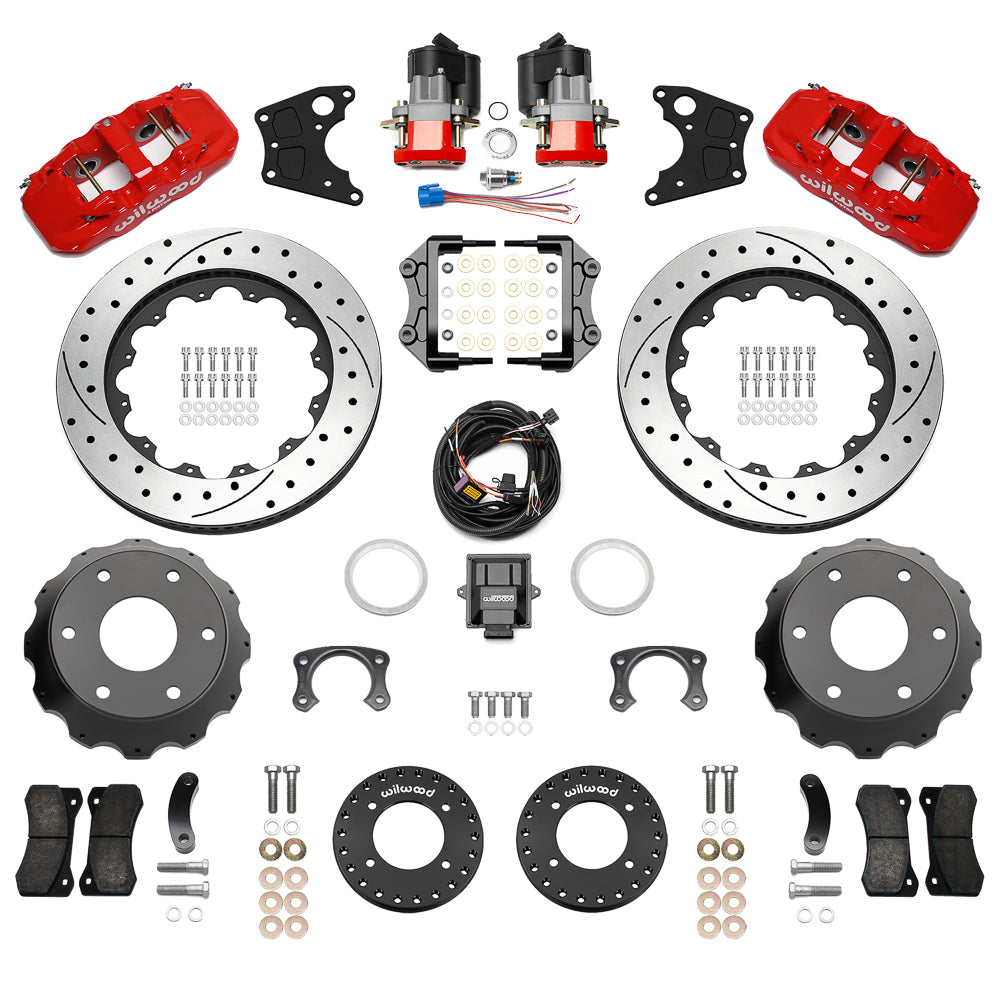

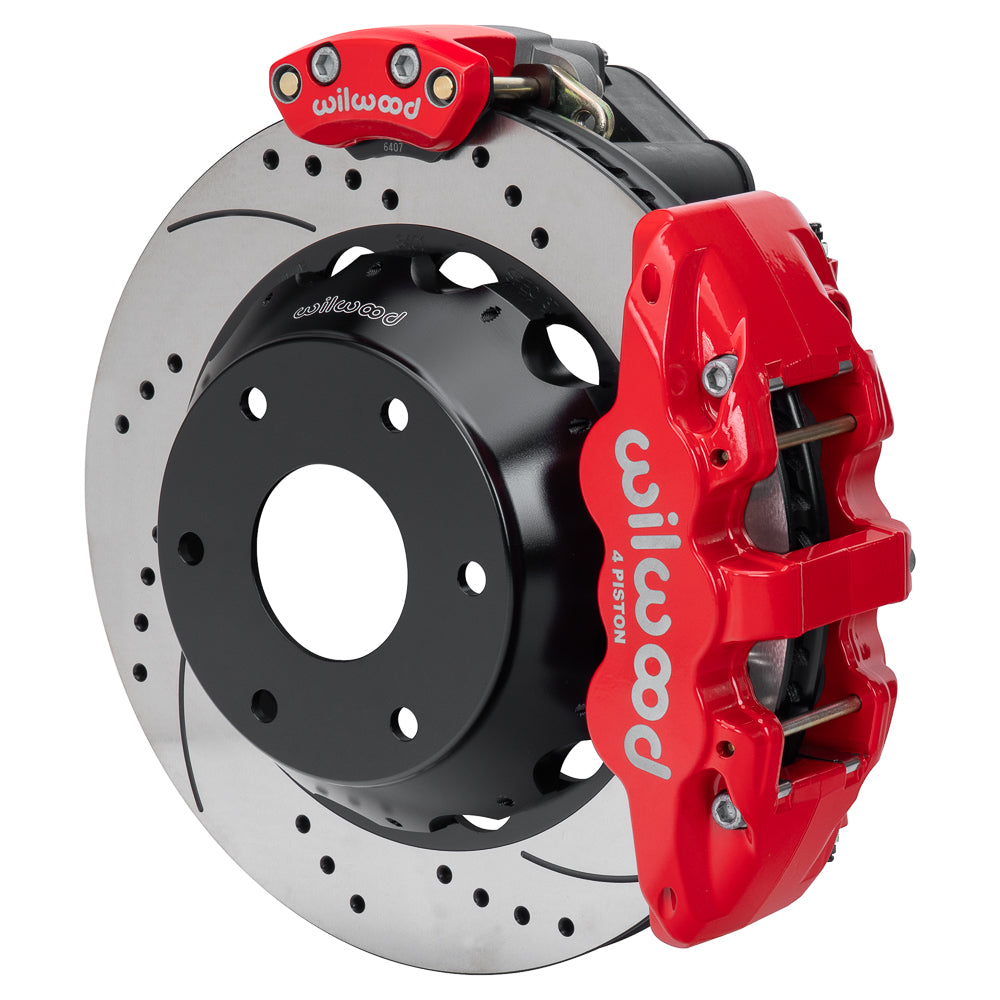

Red AERO4 service calipers and drilled/slotted 14-inch rotors distinguish this Big Ford rear EPB package. The kit is configured for 6 x 5.5-inch drilling and includes the controls for its separate electric parking calipers. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. It designs and manufactures disc brake components and complete systems, from calipers and brake rotors to valves, master cylinders, fittings and brake lines. Motorsport, street-performance and specialized installations each require those components to be matched to the complete brake system.
Technical Details
- Manufacturer part number: 140-18153-DR
- Service calipers: AERO4; 4 pistons; radial mount; Red Powder Coat
- Brake rotors: 14.00 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented construction
- Pads: BP-10; piston material: Stainless
- Caliper body material: Forged aluminum
- Hydraulic inlet: 1/8-27 NPT
- Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
- Housing/flange application: Big Ford New Style
- Required axle offset: 2.50 in; 63.5 mm
- Parking equipment: separate electric calipers, controller and harness included
- Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
- Wheel clearance: 18-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
- Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included
Fitment & Compatibility
A six-lug Big Ford New Style axle at 2.50-inch offset is required for the 14-inch AERO4/EPB package. Check the large-bearing housing flange and 6 x 5.5-inch wheel-stud layout rather than selecting by vehicle name alone. The retained 1990 Town Car listing cannot establish that its original axle has the required conversion geometry.
Use DS1651 to confirm the 2.80-inch axle register, 6.61-inch maximum flange diameter and 0.050-inch x 45-degree chamfer. Both AERO4 service calipers and auxiliary EPB calipers need wheel clearance. Supplied electronic controls operate the parking system; purchase appropriate service-brake hoses/fittings separately and plan their routing before assembly.
Confirm the applicable vehicle entry and all numbered notes in the fitment table below.
The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.
Manufacturer Resources
- Exact Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
- Axle-offset measurement worksheet
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1 |
Application Notes
- Line kit included (manufacturer): None
