Wilwood Rear AERO4 Electric Parking Kit — Six-Lug Big Ford New Style 2.50-Inch Offset, Black 14-Inch GT

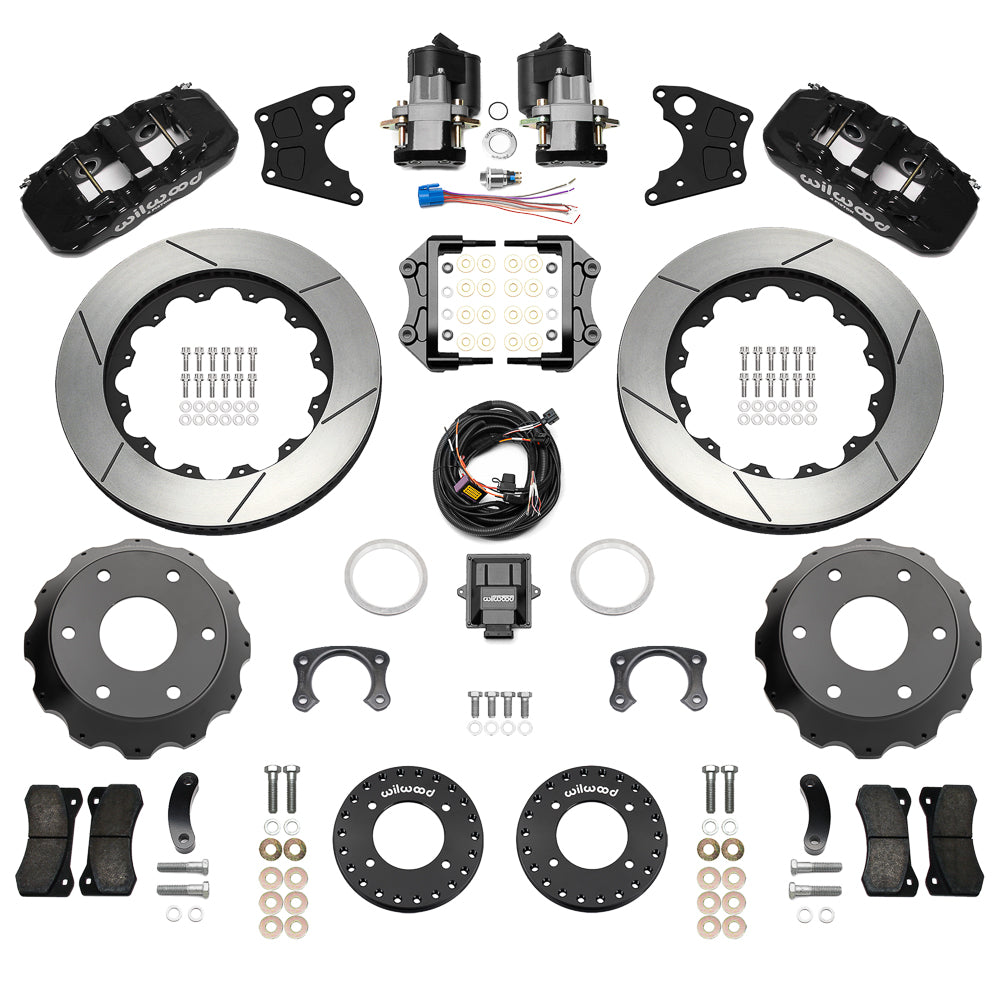

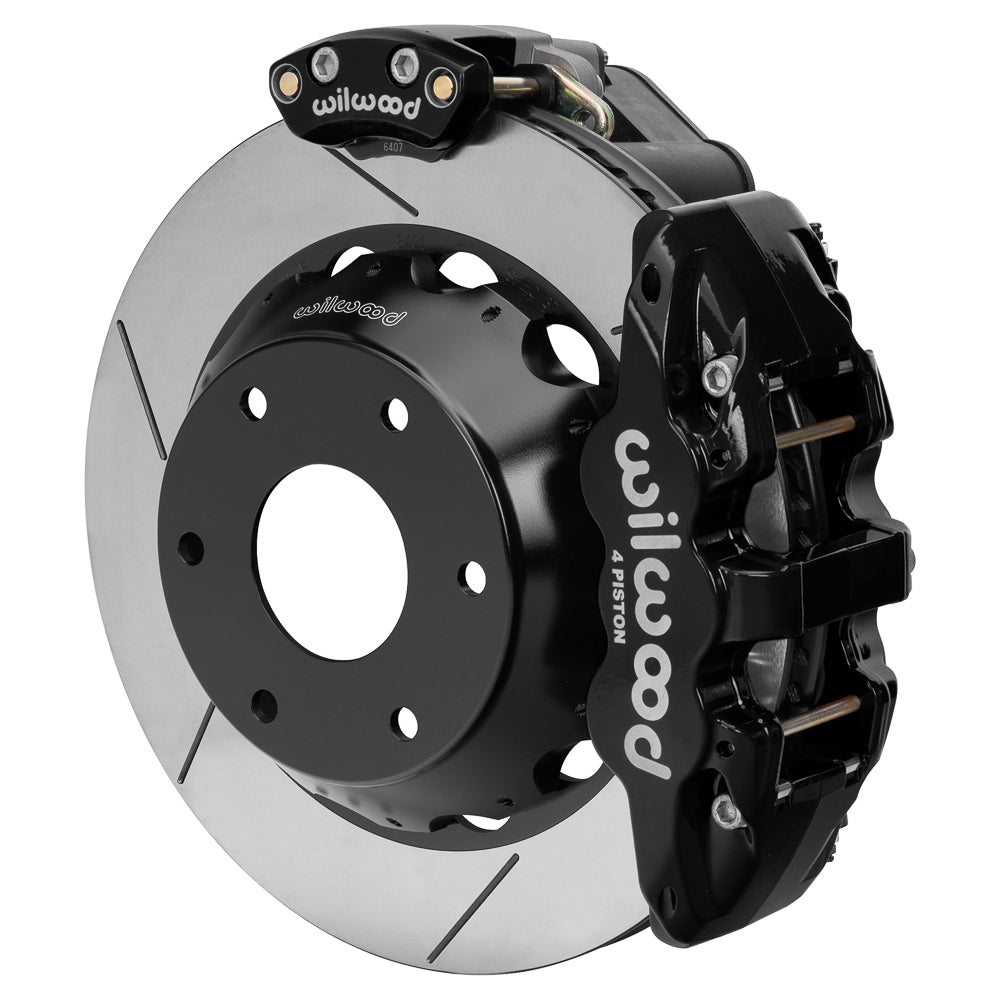

Black AERO4 calipers and 14-inch GT-slotted rotors provide the hydraulic service brakes in this Big Ford New Style rear kit. Separate EPB calipers, their controller and the wiring harness supply the parking function for the matched six-lug axle. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together within a properly matched brake system.

Technical Details

• Manufacturer part number: 140-18153
• Service calipers: AERO4; 4 pistons; radial mount; Black Powder Coat
• Brake rotors: 14.00 x 1.10 inches; Spec-37 Iron; GT Slotted; vented construction
• Pads: BP-10; piston material: Stainless
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
• Housing/flange application: Big Ford New Style
• Required axle offset: 2.50 in; 63.5 mm
• Parking equipment: separate electric calipers, controller and harness included
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 18-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

A six-lug Big Ford New Style axle at 2.50-inch offset is required for the 14-inch AERO4/EPB package. Check the large-bearing housing flange and 6 x 5.5-inch wheel-stud layout rather than selecting by vehicle name alone. The retained 1990 Town Car listing cannot establish that its original axle has the required conversion geometry.

Use DS1651 to confirm the 2.80-inch axle register, 6.61-inch maximum flange diameter and 0.050-inch x 45-degree chamfer. Both AERO4 service calipers and auxiliary EPB calipers need wheel clearance. Supplied electronic controls operate the parking system; purchase appropriate service-brake hoses/fittings separately and plan their routing before assembly.

Use the fitment table below to confirm the exact year, model, trim and installation notes.

The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
