Wilwood Rear Red FNSL4R Brake & EPB Package for Big Ford New Style, Six-Lug 2.50-Inch Offset/12.88-Inch SRP

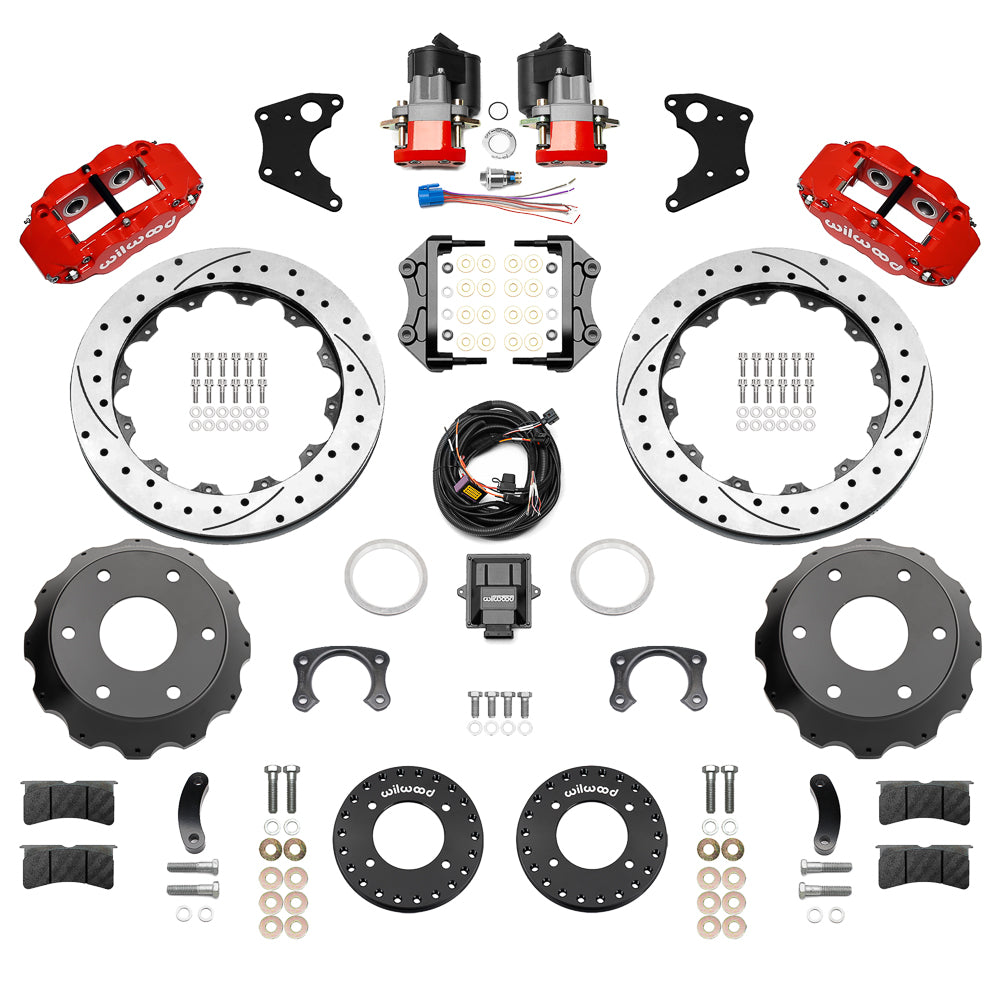

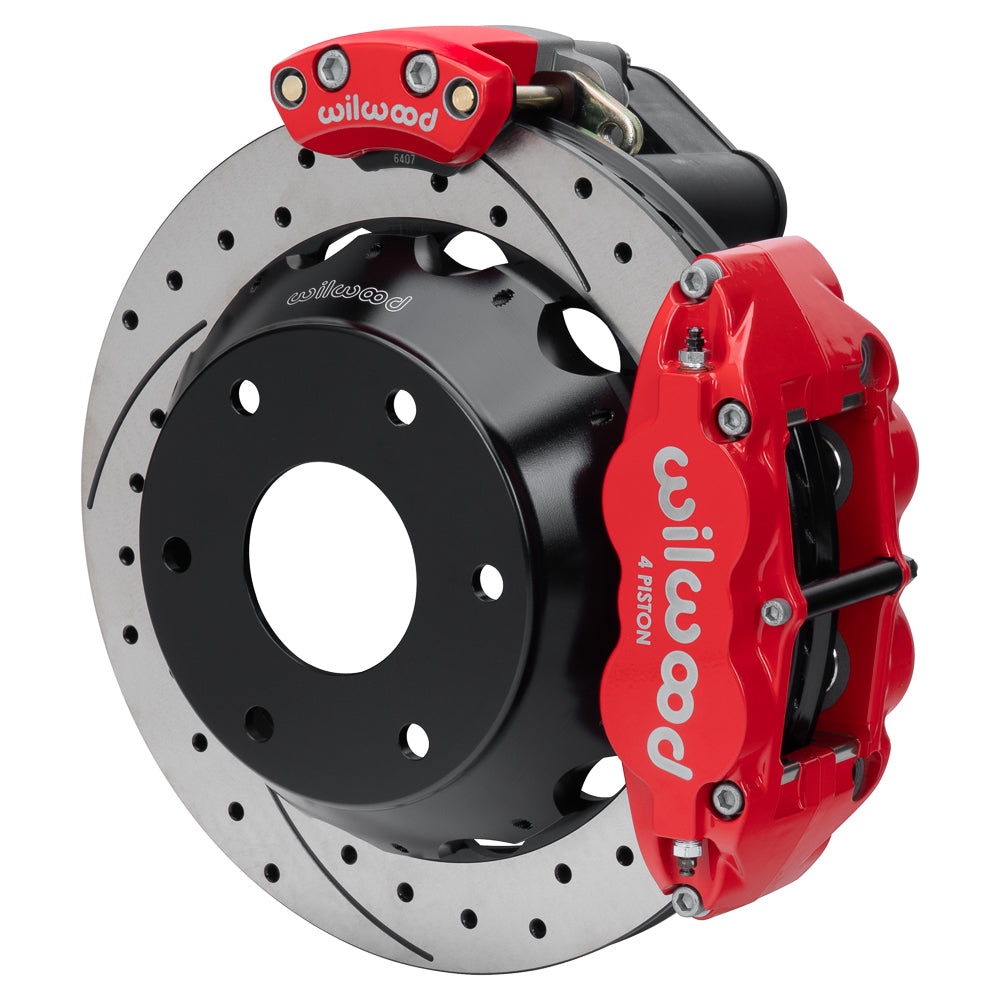

Red FNSL4R service calipers, SRP rotors and electric parking equipment make up this 12.88-inch Big Ford kit. Its mounting geometry is for the New Style housing and six-lug axle at 2.50-inch offset, which must be verified by measurement. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems and components since Bill Wood founded the company in 1977. Its work spans motorsport, street-performance and specialized applications, with a product range covering master cylinders, calipers, brake rotors, valves, fittings and brake lines. These parts must be chosen for the requirements of the entire brake system.

Technical Details

• Manufacturer part number: 140-18152-DR
• Service calipers: Forged Narrow Superlite 4R; 4 pistons; radial mount; Red Powder Coat
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented construction
• Pads: BP-10; piston material: Stainless
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
• Housing/flange application: Big Ford New Style
• Required axle offset: 2.50 in; 63.5 mm
• Parking equipment: separate electric calipers, controller and harness included
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 17-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

Measure the rear axle before selecting the red SRP/EPB package: it needs the large-bearing Big Ford New Style flange, 2.50 inches of axle offset and 6 x 5.5-inch six-lug drilling. The vehicle table contains a generic 1990 Town Car listing; that listing cannot verify a stock axle or establish these conversion dimensions.

DS1650 gives the axle preparation limits for the 12.88-inch rotor: 2.80-inch register, 6.61-inch maximum flange diameter and a 0.050-inch edge chamfer at 45 degrees. Check the wheel around the hydraulic and electric calipers. The supplied controller and wiring serve the parking function; obtain the appropriate hydraulic connections and hoses separately.

Confirm the applicable vehicle entry and all numbered notes in the fitment table below.

The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
