Wilwood Rear Black Superlite Electric Parking Conversion — Big Ford New Style 2.50-Inch Offset, 12.88-Inch SRP

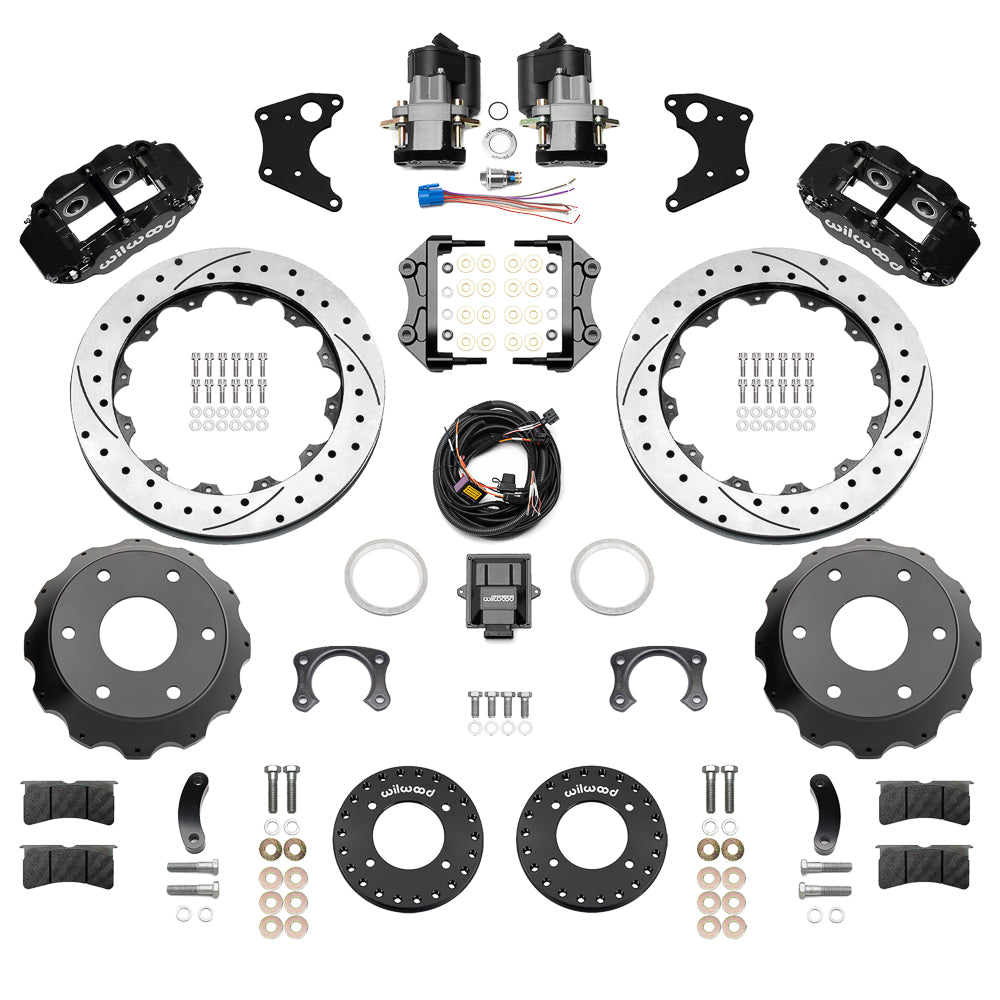

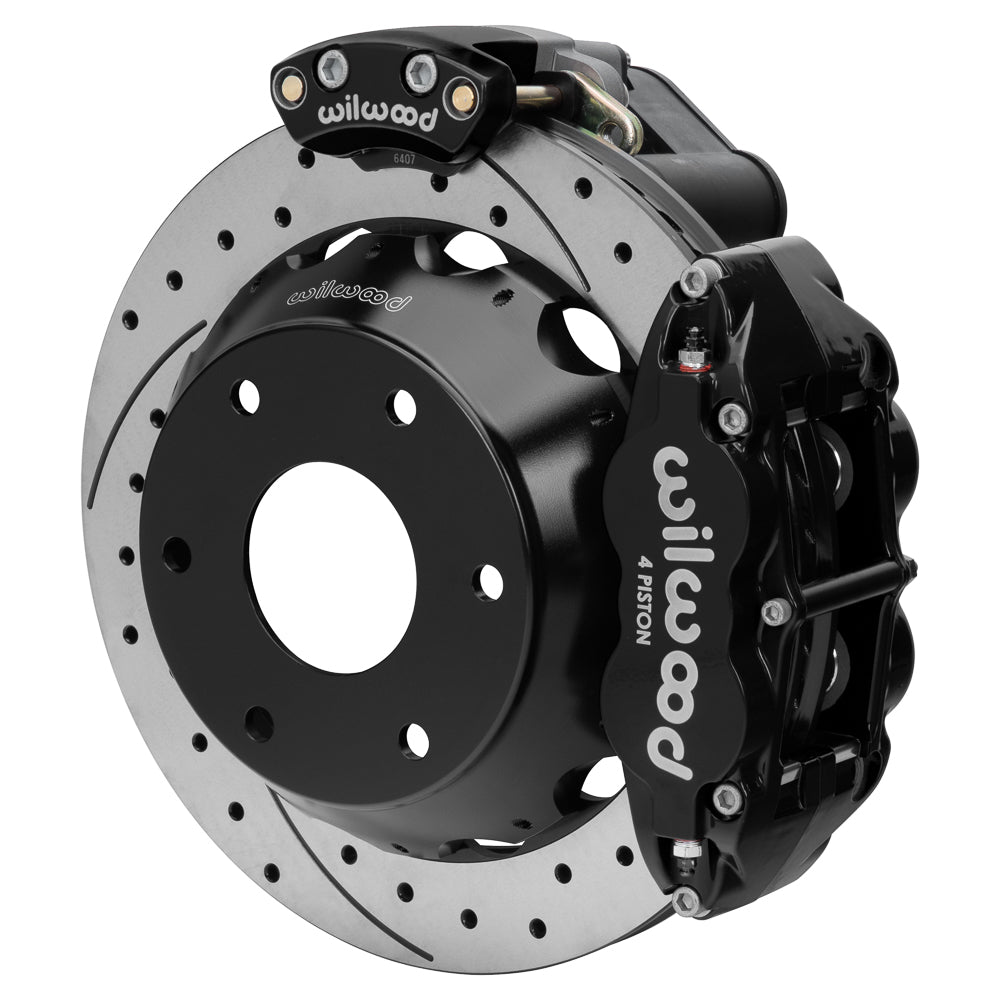

Black four-piston Superlite calipers accompany drilled/slotted 12.88-inch SRP rotors in this Big Ford rear EPB package. A controller and harness operate the parking calipers, eliminating the need for a mechanical parking cable at those calipers. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.

Technical Details

• Manufacturer part number: 140-18152-D
• Rotor specification: Spec-37 Iron, SRP Drilled & Slotted, vented; 12.88 x 1.10 inches
• Caliper specification: 4-piston Forged Narrow Superlite 4R in Black Powder Coat; radial mount
• Included service pad compound: BP-10; Stainless pistons
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
• Housing/flange application: Big Ford New Style
• Required axle offset: 2.50 in; 63.5 mm
• Parking equipment: separate electric calipers, controller and harness included
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 17-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For this Superlite/EPB kit, the Big Ford New Style flange and 2.50-inch axle offset govern alignment of the 12.88-inch rear rotor. The axle must use a six-lug 6 x 5.5-inch pattern. Do not infer a stock-axle fit from the generic 1990 Town Car table entry; confirm the actual housing, register and flange dimensions.

The axle flange is limited to 6.61 inches and requires a 0.050-inch x 45-degree chamfer; check the 2.80-inch register against DS1650. Include clearance for the separate parking calipers in the wheel check. The EPB controller and harness are supplied, while hydraulic hoses and fittings remain separate installation items.

Check the complete application table below, including its model-year splits and configuration notes.

The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
