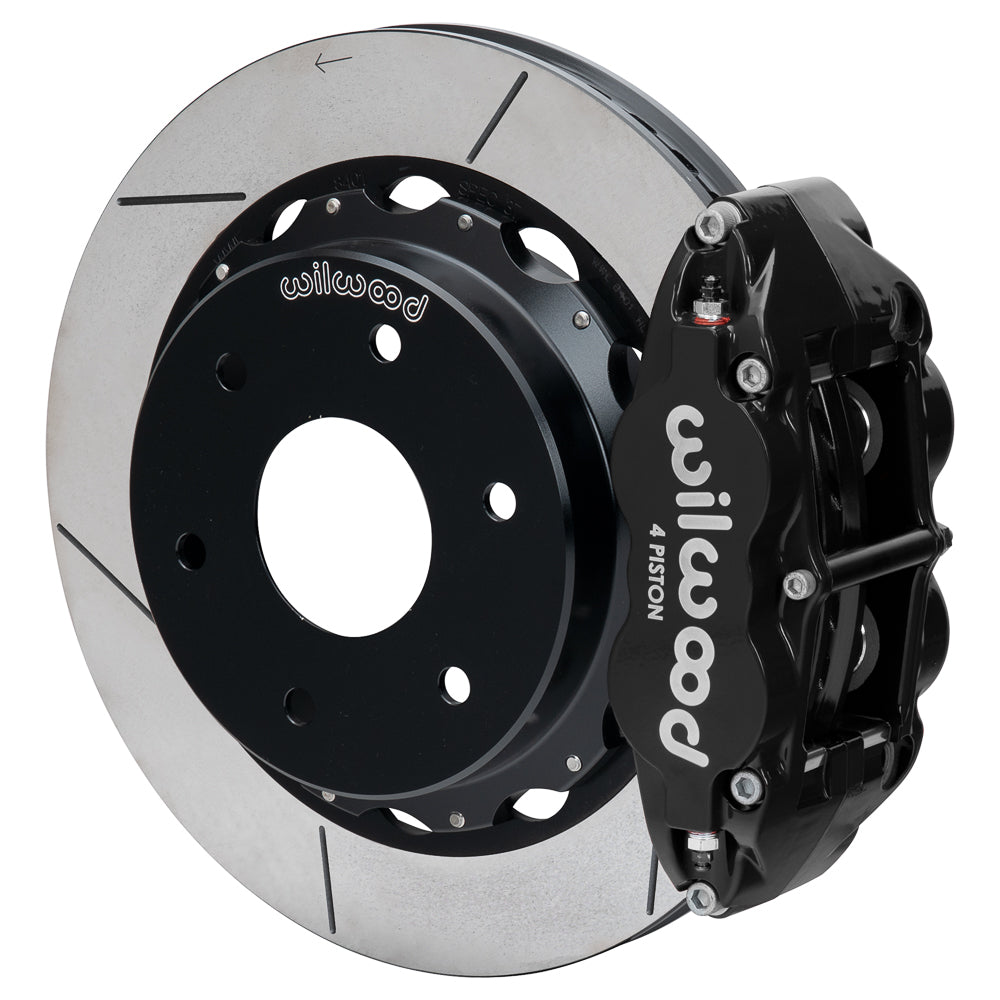

Wilwood Rear Superlite Parking Brakes for Six-Lug Big Ford New Style, 2.50-Inch Offset — Black 12.88-Inch GT

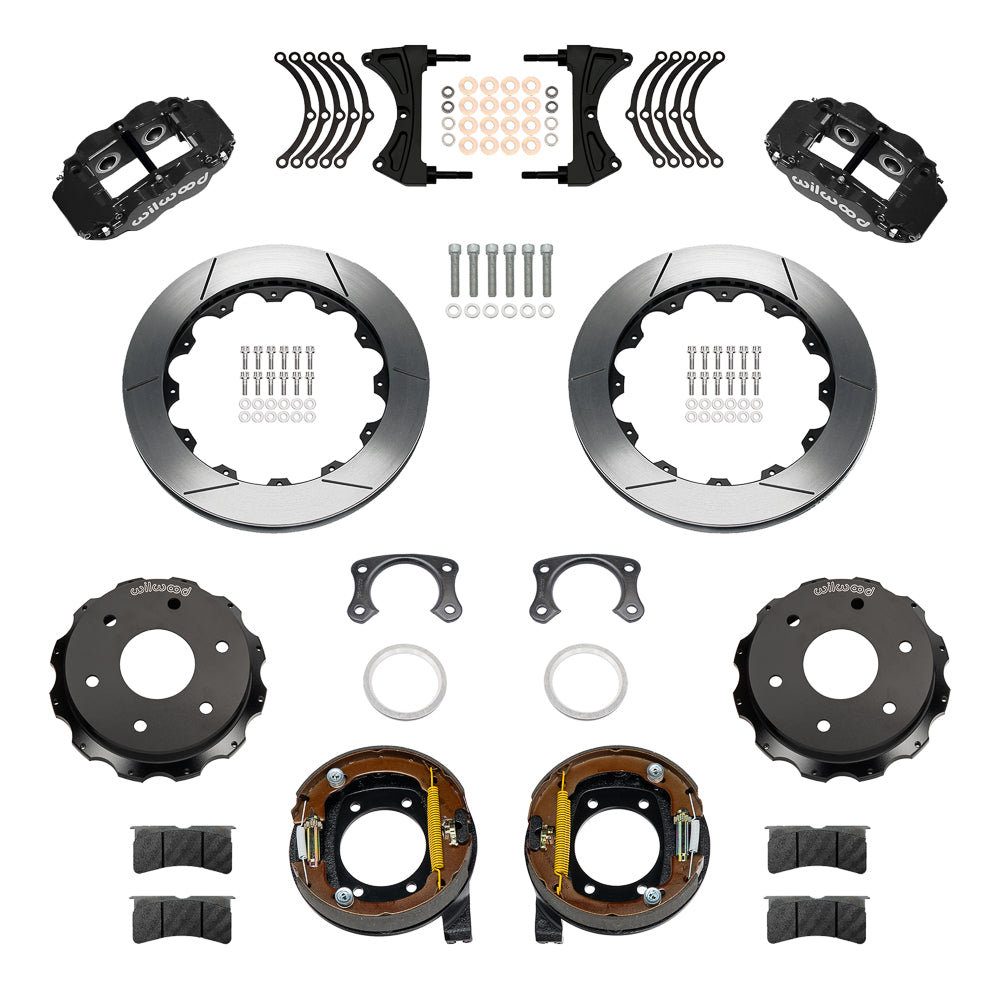

This black FNSL4R rear kit packages 12.88-inch GT-slotted rotors with an internal drum parking brake for the specified Big Ford New Style axle. The six-lug conversion includes BP-10 pads, radial-mount calipers and the parking-shoe assemblies. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are all part of Wilwood Engineering’s range of disc brake systems and components. The Camarillo, California company was founded in 1977 by Bill Wood and designs and manufactures these products for motorsport, street-performance and specialized applications. Compatibility with the complete brake system determines the appropriate component choice.

Technical Details

• Manufacturer part number: 140-18151
• Service calipers: Forged Narrow Superlite 4R; 4 pistons; radial mount; Black Powder Coat
• Brake rotors: 12.88 x 1.10 inches; Spec-37 Iron; GT Slotted; vented construction
• Pads: BP-10; piston material: Stainless
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
• Housing/flange application: Big Ford New Style
• Required axle offset: 2.50 in; 63.5 mm
• Parking brake: included internal drum/shoe assembly; cable and clevis hardware are not included
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 17-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

The 12.88-inch Superlite parking package needs a Big Ford New Style housing with the correct large-bearing flange. Verify the 2.50-inch axle offset and 6 x 5.5-inch lug pattern on the installed axle. The generic Town Car entry is conditional on that hardware and does not establish compatibility with a stock 1990 Town Car rear axle.

The supplied internal parking shoes require separate cables and clevis hardware. Use DS1649 to measure the 2.80-inch axle register, check the 6.80-inch maximum flange diameter and apply the specified edge chamfer. Plan new hydraulic hoses/fittings because the original lines cannot connect directly to this conversion.

Use the fitment table below to confirm the exact year, model, trim and installation notes.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
