Product details

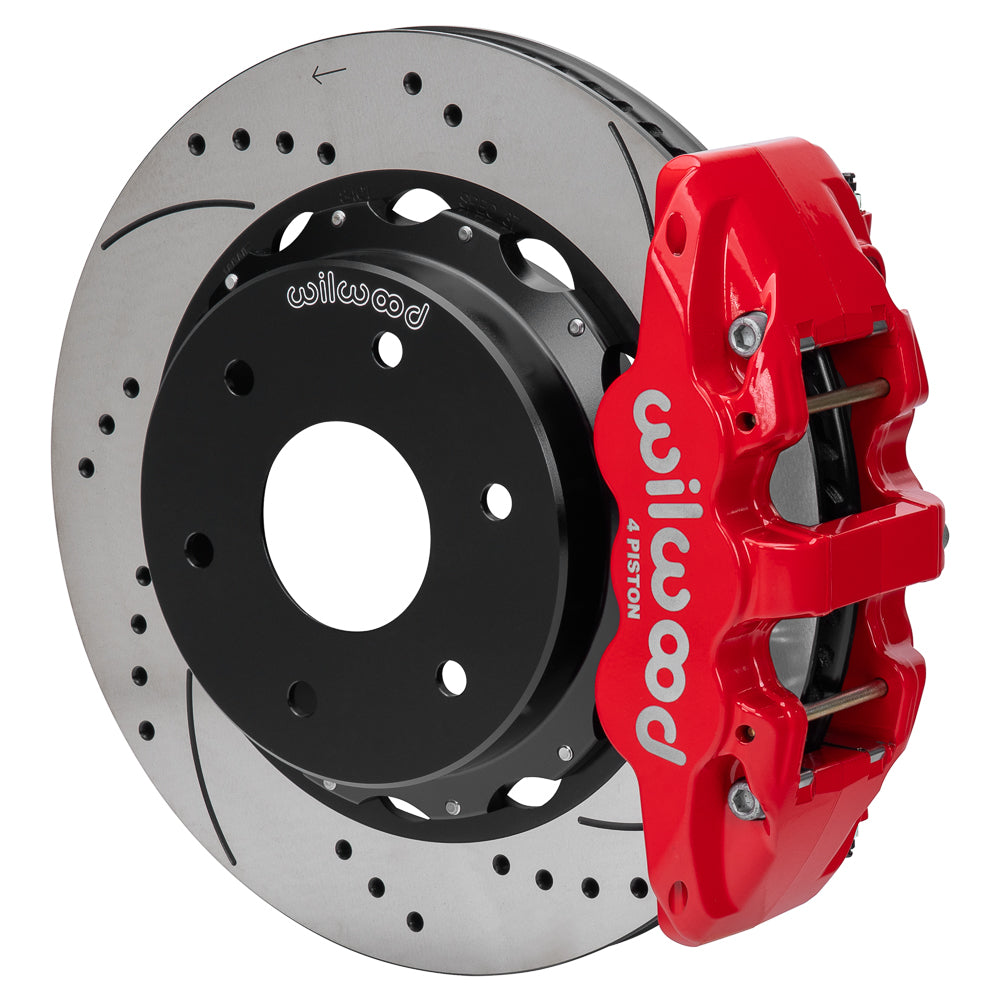

Red four-piston AERO4 calipers distinguish this SRP rear kit for a six-lug Big Ford New Style axle installation. Its 14-inch rotors incorporate the parking-brake drum, and the supplied shoes operate through a separately sourced cable connection. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.
Technical Details
- Manufacturer part number: 140-18150-DR
- Service calipers: AERO4; 4 pistons; radial mount; Red Powder Coat
- Brake rotors: 14.00 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented construction
- Pads: BP-10; piston material: Stainless
- Caliper body material: Forged aluminum
- Hydraulic inlet: 1/8-27 NPT
- Rotor/hat wheel-stud clearance pattern(s): 6 x 5.5 in; 6 x 139.7 mm; match the installed hub/axle pattern
- Housing/flange application: Big Ford New Style
- Required axle offset: 2.50 in; 63.5 mm
- Parking brake: included internal drum/shoe assembly; cable and clevis hardware are not included
- Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
- Wheel clearance: 18-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

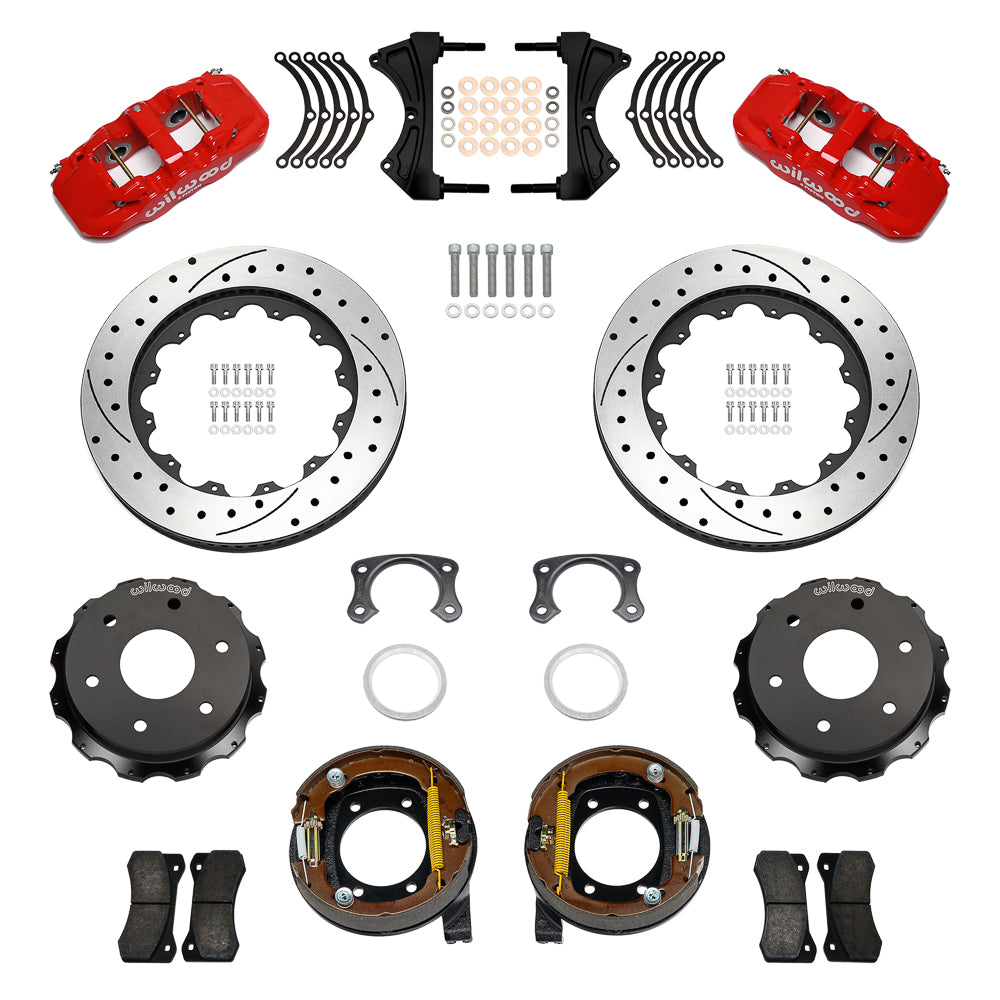

- Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included
Fitment & Compatibility
This 14-inch AERO4 installation is selected by rear-housing geometry: Big Ford New Style large-bearing flange, 2.50-inch axle offset and six-lug 6 x 5.5-inch drilling. A 1990 Town Car model listing does not verify those dimensions or convert its original axle to six lugs. Confirm the actual housing and axle before choosing the kit.
DS1648 includes the internal drum parking-brake assembly, but its cable and clevis connections must be supplied for the vehicle. The maximum axle flange diameter is 6.80 inches with the drawing’s specified chamfer; match the 2.80-inch register. Original hydraulic lines do not directly adapt, so obtain suitable hoses and fittings separately.
Confirm the applicable vehicle entry and all numbered notes in the fitment table below.
Manufacturer Resources
- Exact Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
- Axle-offset measurement worksheet
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1 |
Application Notes
- Line kit included (manufacturer): None
