Product details

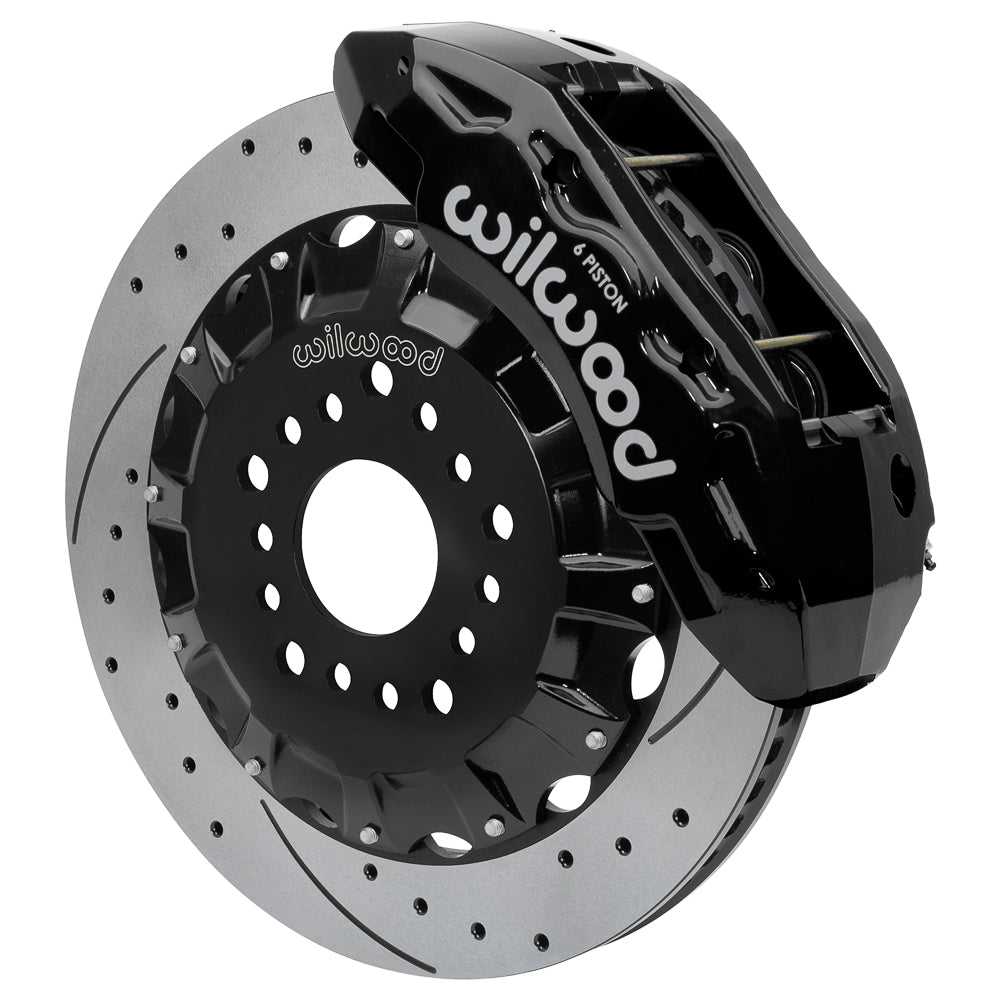

This black TX6R front conversion is specified around 16-inch SRP drilled-and-slotted rotors and BP-22 pads. It serves the listed GM C10-family applications only when the required Wilwood Aluminum Modular ProSpindles are installed. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are all part of Wilwood Engineering’s range of disc brake systems and components. The Camarillo, California company was founded in 1977 by Bill Wood and designs and manufactures these products for motorsport, street-performance and specialized applications. Compatibility with the complete brake system determines the appropriate component choice.
Technical Details
- Manufacturer part number: 140-18123-D
- Rotor specification: Spec-37 Iron, SRP Drilled & Slotted, vented; 16.00 x 1.38 inches
- Caliper specification: 6-piston TX6R in Black Powder Coat; radial mount
- Included service pad compound: BP-22; Stainless pistons
- Caliper body material: Forged aluminum
- Hydraulic inlet: 1/8-27 NPT
- Rotor/hat wheel-stud clearance pattern(s): 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; 5 x 5.5 in; 5 x 139.7 mm; match the installed hub/axle pattern
- Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
- Wheel clearance: 20-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

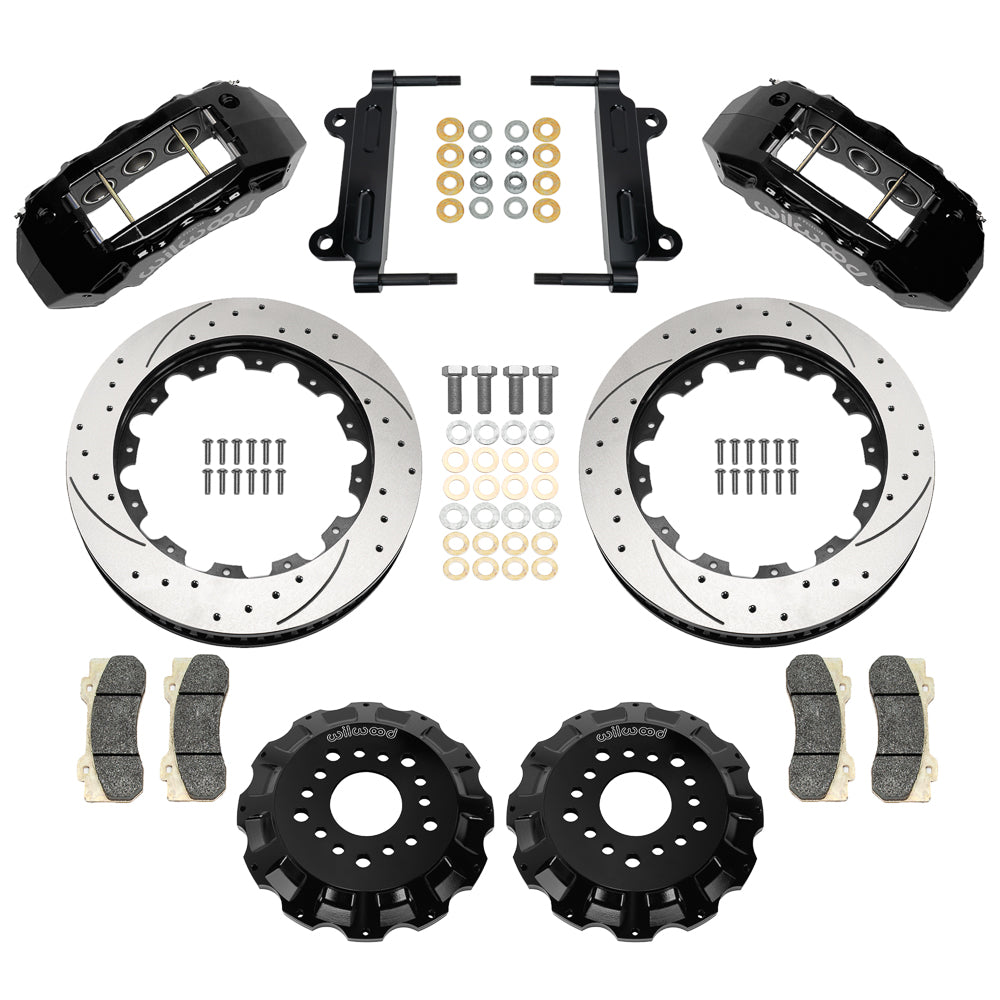

- Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included
Fitment & Compatibility
Requires Wilwood C10 Aluminum Modular Pro Drop Spindles and the listed five-lug configuration. It will not fit original-equipment spindles. Applications span the listed C10-family Chevrolet/GMC pickups, Suburbans and related utility models; use every model and year limitation in the table.
Relative to the original brake/spindle assembly, wheel offset changes by +0.41 inch outboard for 1963–1970 applications and -0.06 inch inboard for 1971–1987. Hydraulic hoses are separate: select the appropriate application from the manufacturer’s listed line-kit references rather than assuming all are required.
Check the complete application table below, including its model-year splits and configuration notes.
Manufacturer Resources
- Exact Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1963-1967 | Chevrolet | C10 Panel | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1974 | Chevrolet | C10 Pickup | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | Chevrolet | Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1965 | GMC | 1000 Series | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | GMC | Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1966 | GMC | 1000 | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1986 | Chevrolet | C10 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974 | GMC | C15/C1500 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974, 1979-1986 | GMC | C1500 Pickup | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1974 | Chevrolet | Blazer | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1982 | GMC | Jimmy | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1986 | Chevrolet | C10 | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1982 | Chevrolet | K5 Blazer | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1979-1986 | GMC | C1500 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Pickup | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | GMC | R1500 Pickup | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | GMC | R1500 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
Application Notes
- Brake kits require Wilwood C10 Aluminum Modular Pro Drop Spindles to fit. Will not fit original equipment spindles.
- Brake kit wheel offset is +0.41 inch outboard from stock OE brakes and spindle for 1963–1970; wheel offset is -0.06 inch inboard for 1971–1987.
- This front TX6R kit contains no parking-brake assembly or parking-brake cable; DS1646 specifies the front service-brake installation.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-7056, 220-11237, 220-12168
