Product details

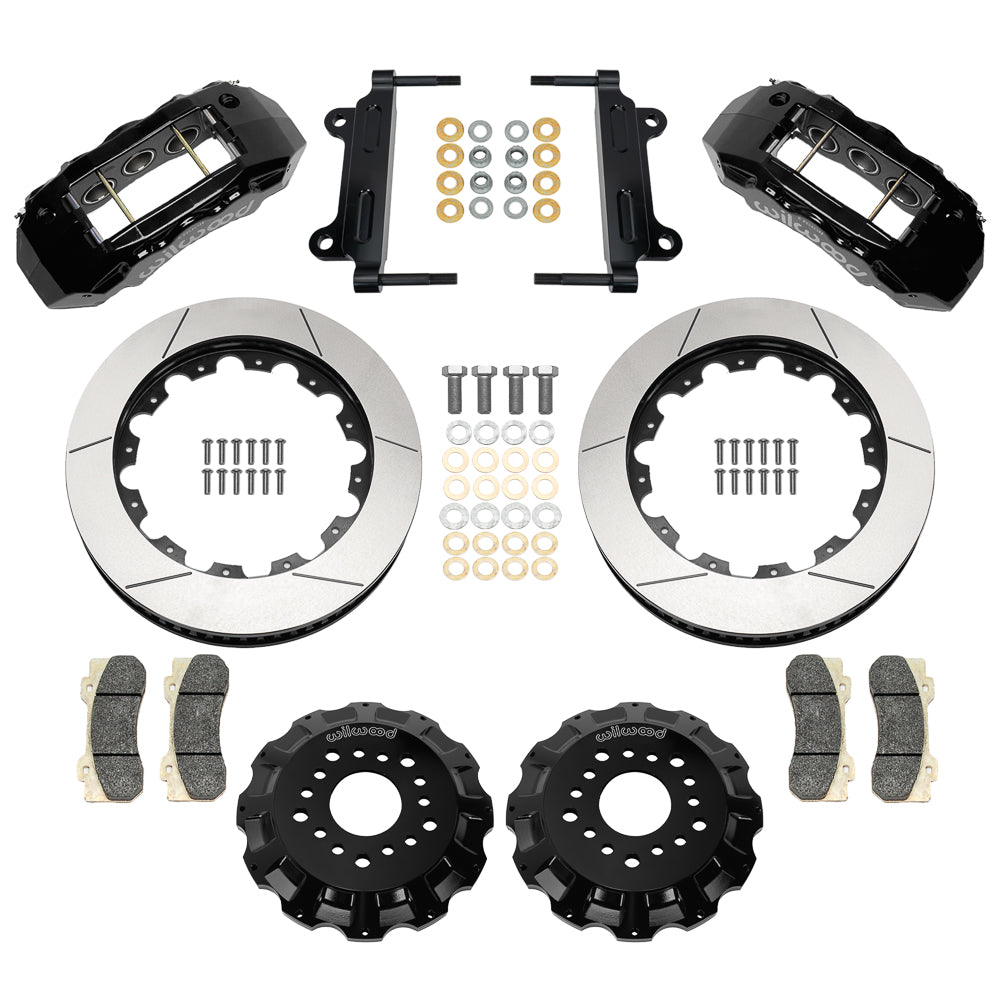

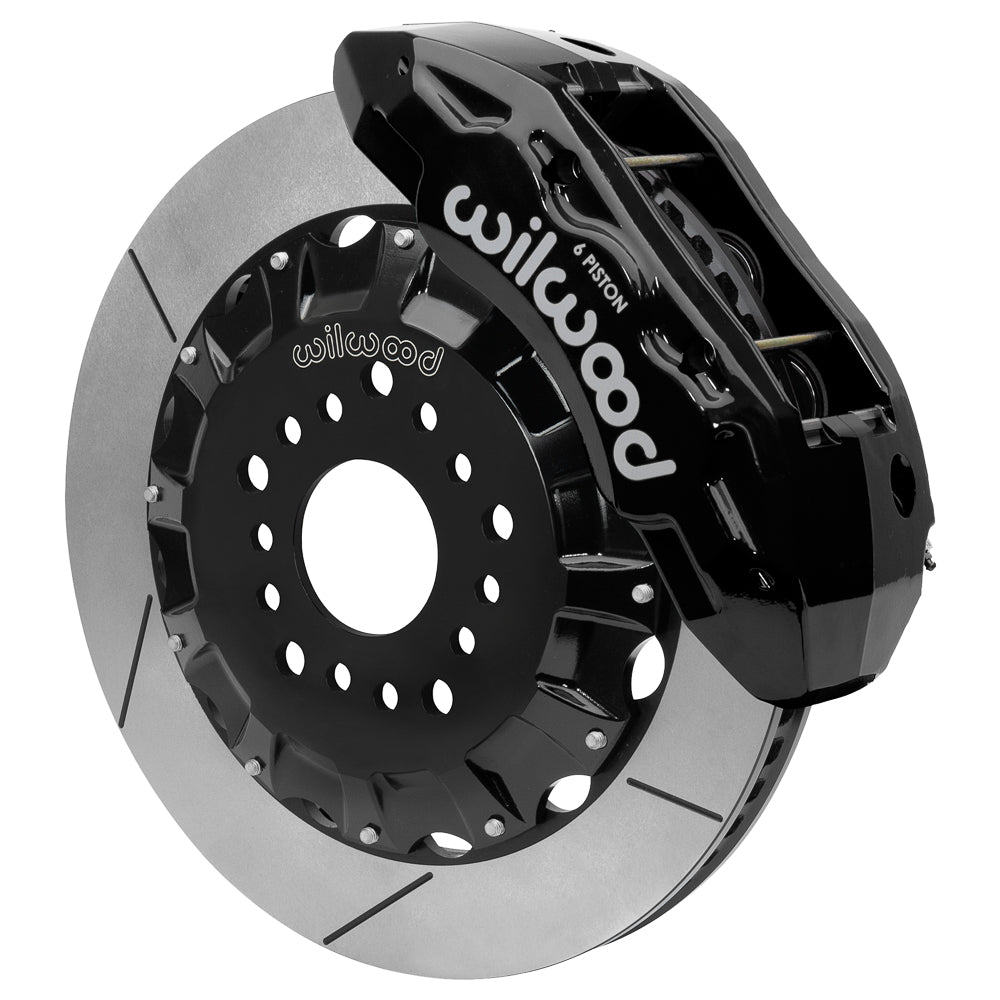

Black TX6R calipers and 16-inch GT-slotted rotors make up this front package for C10-family builds using Wilwood’s aluminum modular spindles. The six-piston brakes depend on those aftermarket spindles and require a separate wheel-offset and clearance check. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. It designs and manufactures disc brake components and complete systems, from calipers and brake rotors to valves, master cylinders, fittings and brake lines. Motorsport, street-performance and specialized installations each require those components to be matched to the complete brake system.
Technical Details
- Manufacturer part number: 140-18123
- Service calipers: TX6R; 6 pistons; radial mount; Black Powder Coat
- Brake rotors: 16.00 x 1.38 inches; Spec-37 Iron; GT Slotted; vented construction
- Pads: BP-22; piston material: Stainless
- Caliper body material: Forged aluminum
- Hydraulic inlet: 1/8-27 NPT
- Rotor/hat wheel-stud clearance pattern(s): 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm; 5 x 5.5 in; 5 x 139.7 mm; match the installed hub/axle pattern
- Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
- Wheel clearance: 20-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
- Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included
Fitment & Compatibility
Requires Wilwood C10 Aluminum Modular Pro Drop Spindles and the listed five-lug configuration. It will not fit original-equipment spindles. Applications span the listed C10-family Chevrolet/GMC pickups, Suburbans and related utility models; use every model and year limitation in the table.
Relative to the original brake/spindle assembly, wheel offset changes by +0.41 inch outboard for 1963–1970 applications and -0.06 inch inboard for 1971–1987. Hydraulic hoses are separate: select the appropriate application from the manufacturer’s listed line-kit references rather than assuming all are required.
Use the fitment table below to confirm the exact year, model, trim and installation notes.
Manufacturer Resources
- Exact Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1963-1967 | Chevrolet | C10 Panel | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1974 | Chevrolet | C10 Pickup | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | Chevrolet | Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1965 | GMC | 1000 Series | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | GMC | Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1966 | GMC | 1000 | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1986 | Chevrolet | C10 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974 | GMC | C15/C1500 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974, 1979-1986 | GMC | C1500 Pickup | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1974 | Chevrolet | Blazer | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1982 | GMC | Jimmy | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1986 | Chevrolet | C10 | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1982 | Chevrolet | K5 Blazer | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1979-1986 | GMC | C1500 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Pickup | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | GMC | R1500 Pickup | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | GMC | R1500 Suburban | Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
Application Notes
- Brake kits require Wilwood C10 Aluminum Modular Pro Drop Spindles to fit. Will not fit original equipment spindles.
- Brake kit wheel offset is +0.41 inch outboard from stock OE brakes and spindle for 1963–1970; wheel offset is -0.06 inch inboard for 1971–1987.
- This front TX6R kit contains no parking-brake assembly or parking-brake cable; DS1646 specifies the front service-brake installation.
- Line kit included (manufacturer): None
- Front line-kit reference: 220-7056, 220-11237, 220-12168
