Wilwood Rear Red EPB Caliper & Controller Retrofit — 12.19-Inch Forged Dynalite Pro Street Brakes

The red EPB retrofit equips a compatible Forged Dynalite Pro Street rear installation with electrically operated parking calipers. It is a parking-system addition for the specified 12.19-inch kits, with mounting and control equipment supplied rather than new service-brake rotors. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. It designs and manufactures disc brake components and complete systems, from calipers and brake rotors to valves, master cylinders, fittings and brake lines. Motorsport, street-performance and specialized installations each require those components to be matched to the complete brake system.

Technical Details

• Manufacturer part number: 140-18080-R
• Purpose: rear electric parking-brake retrofit for the specified existing Wilwood kits

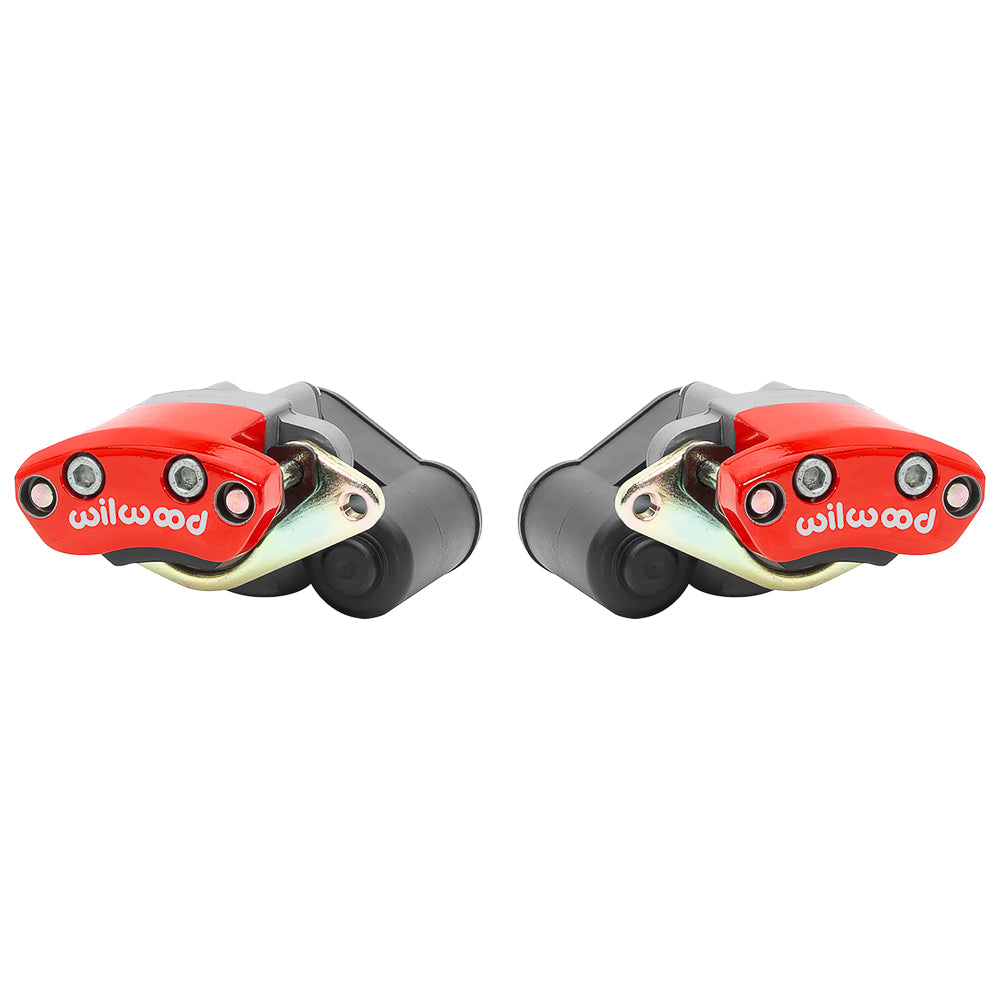

• Parking calipers: Red powder coat; single steel piston; lug mounting
• Caliper construction: aluminum/steel; electric actuation; composite metallic parking pads

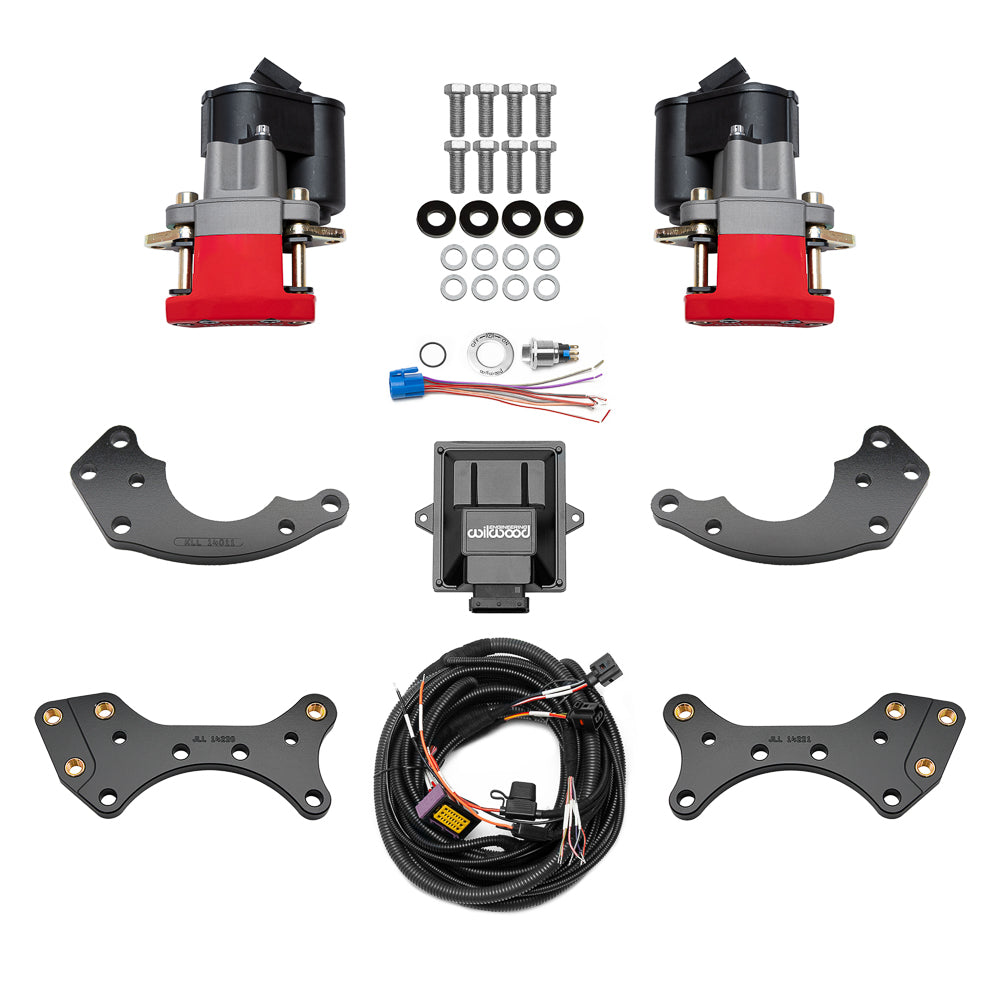

• Included: EPB calipers, mounting brackets/hardware, controller, switch and wiring harness

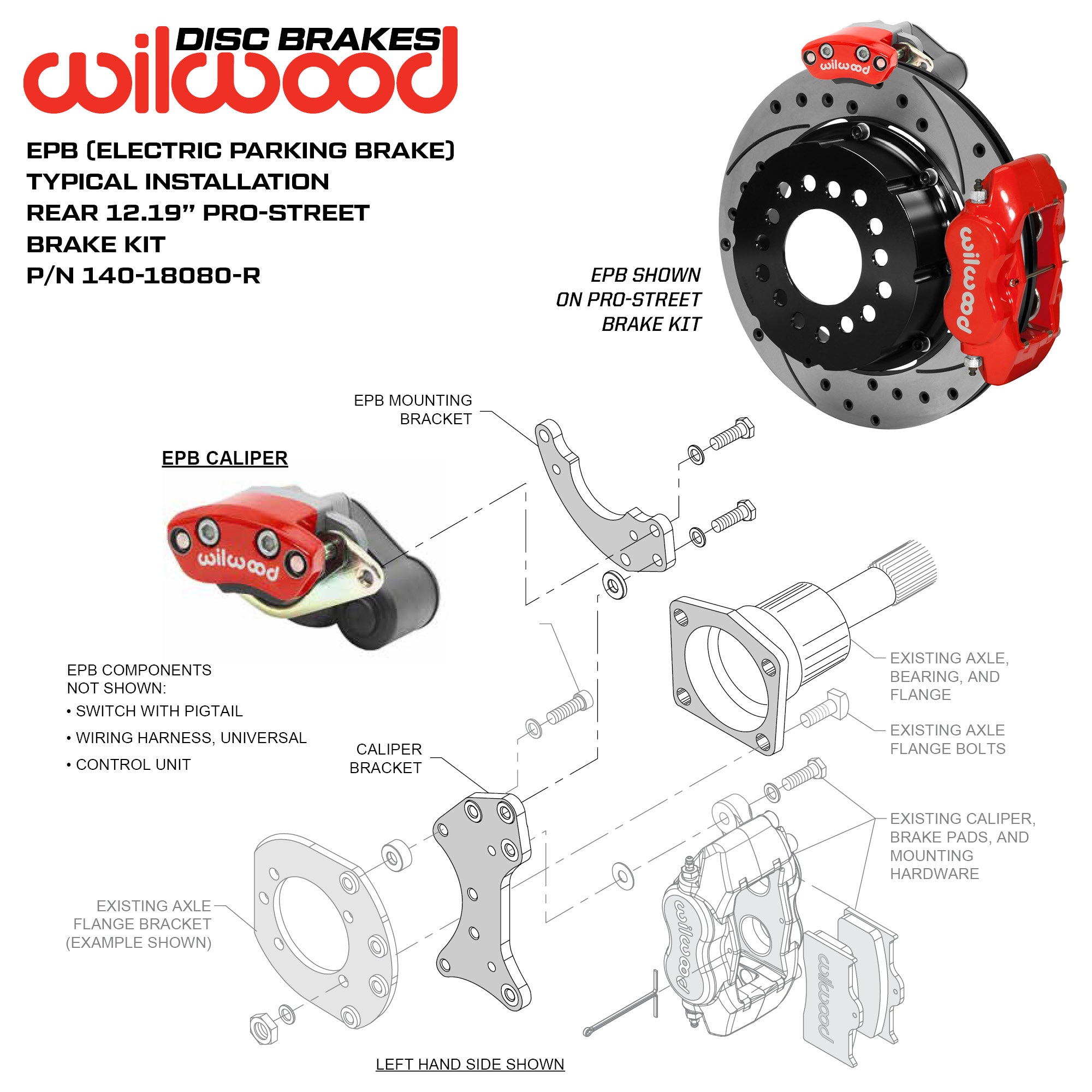

• Existing hydraulic service calipers and 12.19-inch rotors are retained; replacement service brakes are not supplied
• Wheel clearance: 15-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For existing Wilwood Forged Dynalite Pro Street rear kits with 12.19-inch rotors: 140-2111 through 140-2118, plus 140-3018, 140-3722, 140-5236, 140-5591 and 140-5746. Confirm the installed brake-kit number and the bracket/rotor arrangement; this retrofit does not supply a complete hydraulic rear brake conversion.

Frame clearance excludes 1968–1974 Chevelle, Buick Skylark, Oldsmobile Cutlass and Pontiac Tempest applications under DS1642. Verify the electric caliper’s wheel envelope and follow the supplied wiring instructions before installing the controller.

The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.
