Product details

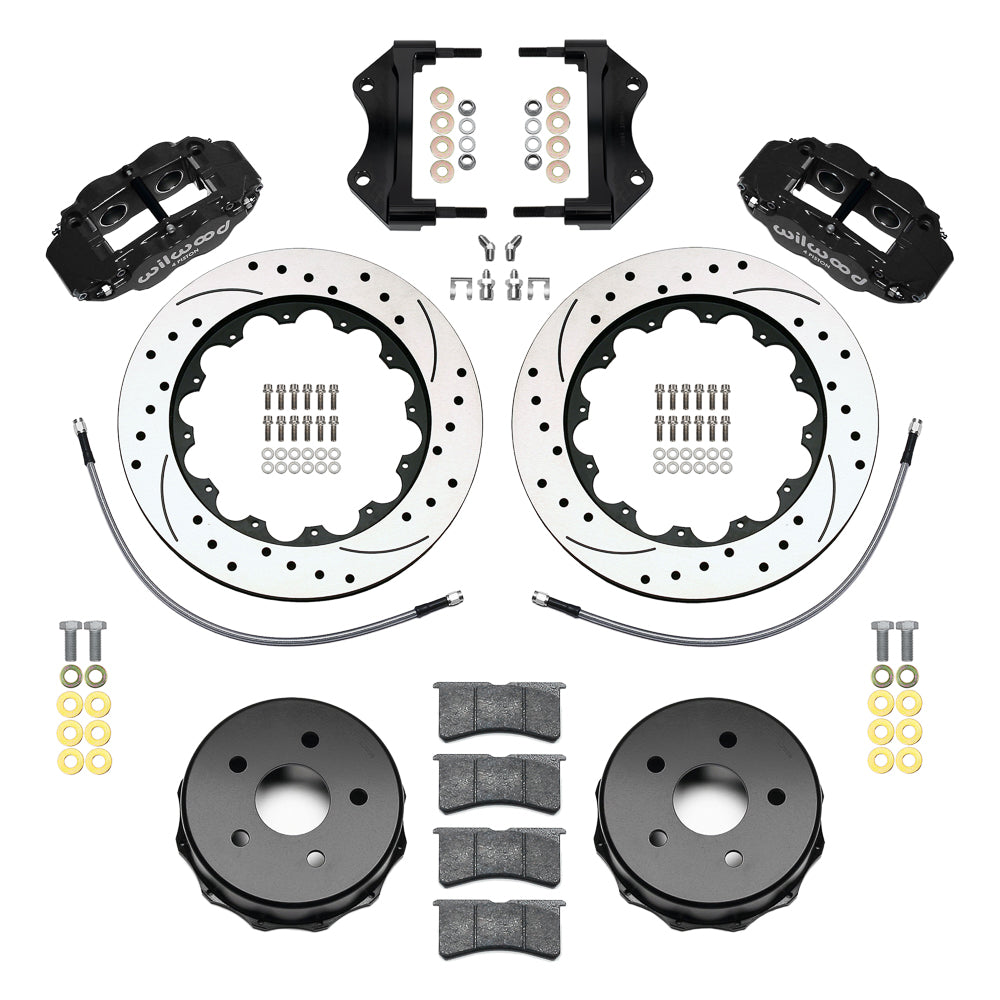

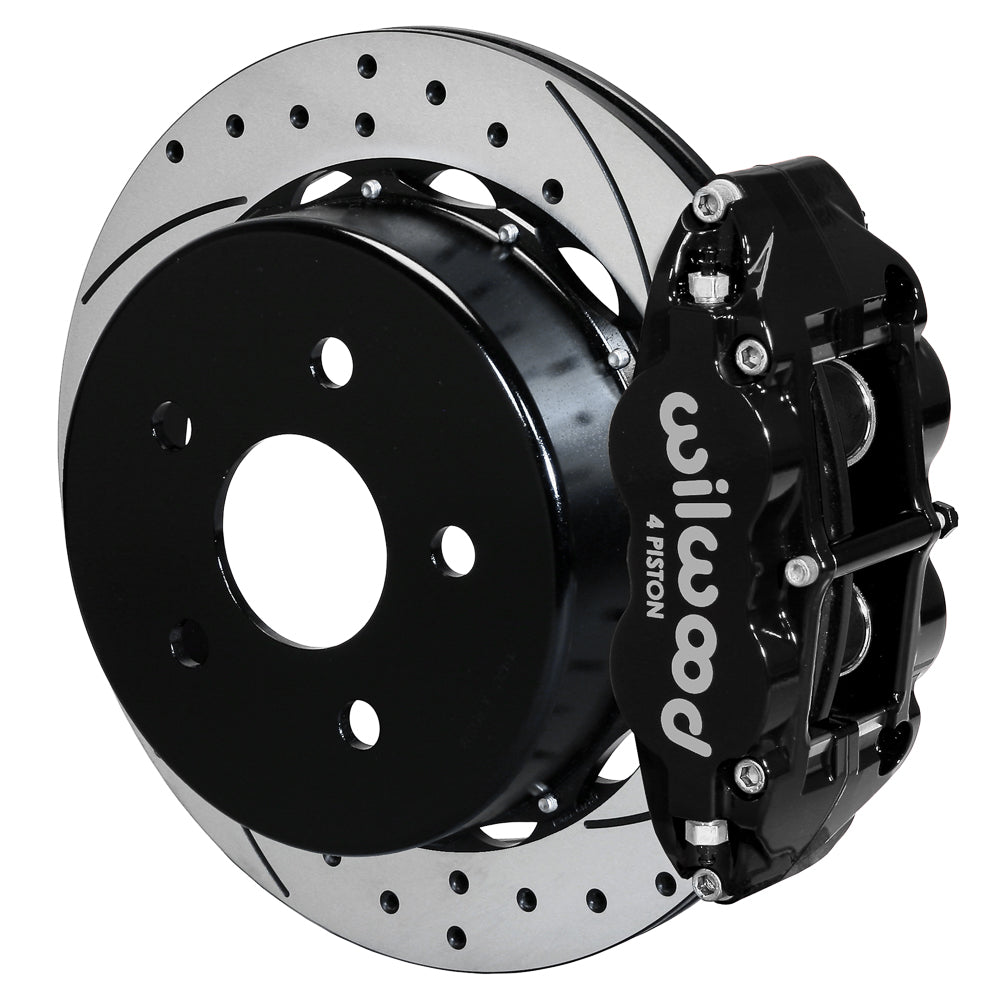

This black Superlite rear package gives the specified Gladiator JT a 13.50-inch SRP drilled-and-slotted rotor assembly. The supplied hydraulic hoses support the service-brake installation; the existing parking brake remains part of the completed system. Based in Camarillo, California, Wilwood Engineering has designed and manufactured disc brake systems and components since Bill Wood founded the company in 1977. Its work spans motorsport, street-performance and specialized applications, with a product range covering master cylinders, calipers, brake rotors, valves, fittings and brake lines. These parts must be chosen for the requirements of the entire brake system.
Technical Details
- Manufacturer part number: 140-18076-D
- Rotor specification: Iron, SRP Drilled & Slotted, vented; 13.50 x 0.81 inches
- Caliper specification: 4-piston Forged Narrow Superlite 4R in Black Powder Coat; radial mount
- Included service pad compound: BP-22; Stainless pistons
- Caliper body material: Forged aluminum
- Hydraulic inlet: 1/8-27 NPT
- Rotor/hat wheel-stud clearance pattern(s): 5 x 5 in; 5 x 127 mm; match the installed hub/axle pattern
- Parking arrangement: retain the original parking-brake assembly
- Hydraulic brake hoses: included; DOT-approved hose kit
- Wheel clearance: 17-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
- Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included
Fitment & Compatibility
For the 2020–2021 Gladiator JT applications specifically listed below, including year-dependent Sport, Sport S, Overland, Rubicon, High Altitude and Willys versions. Confirm the OE parking-brake configuration and 5 x 5-inch wheel pattern.
The original dust shields require modification using the layout in DS1639. Supplied 20-inch hoses must be routed and checked at the suspension’s full range of movement.
Check the complete application table below, including its model-year splits and configuration notes.
Manufacturer Resources
- Exact Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2020-2021 | Jeep | Gladiator | Overland | Overland | Disc | Disc | Rear Kit | 1, 2 |
| 2020-2021 | Jeep | Gladiator | Rubicon | Rubicon | Disc | Disc | Rear Kit | 1, 2 |
| 2020-2021 | Jeep | Gladiator | Sport | Sport | Disc | Disc | Rear Kit | 1, 2 |
| 2021 | Jeep | Gladiator | High Altitude | High Altitude | Disc | Disc | Rear Kit | 1, 2 |
| 2021 | Jeep | Gladiator | Sport S | Sport S | Disc | Disc | Rear Kit | 1, 2 |
| 2021 | Jeep | Gladiator | Willys | Willys | Disc | Disc | Rear Kit | 1, 2 |
| 2021 | Jeep | Gladiator | Willys Sport | Willys Sport | Disc | Disc | Rear Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): 220-16180 (20.00 in)
- Rear line-kit reference: 220-16180
