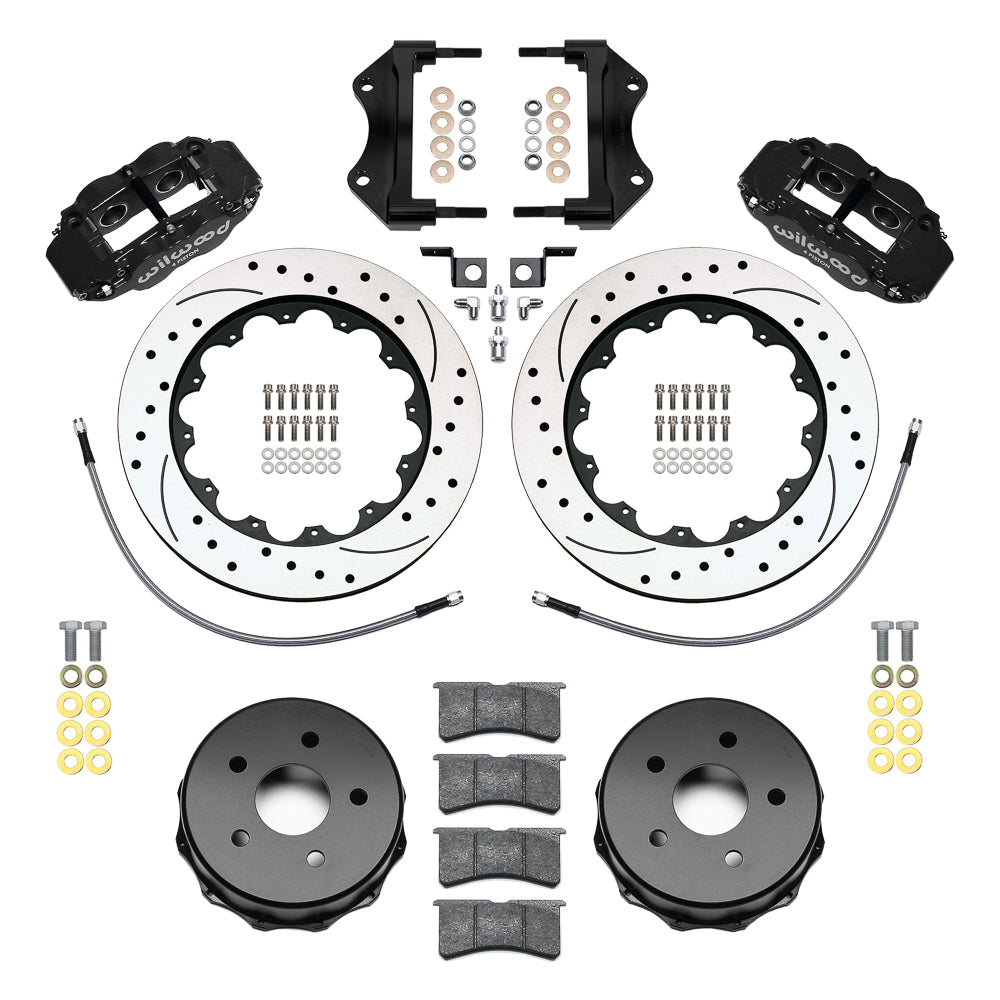

Wilwood rear Forged Narrow Superlite 4R kit components for Jeep Wrangler JK, black calipers and 13.5-inch srp drilled and slotted rotors

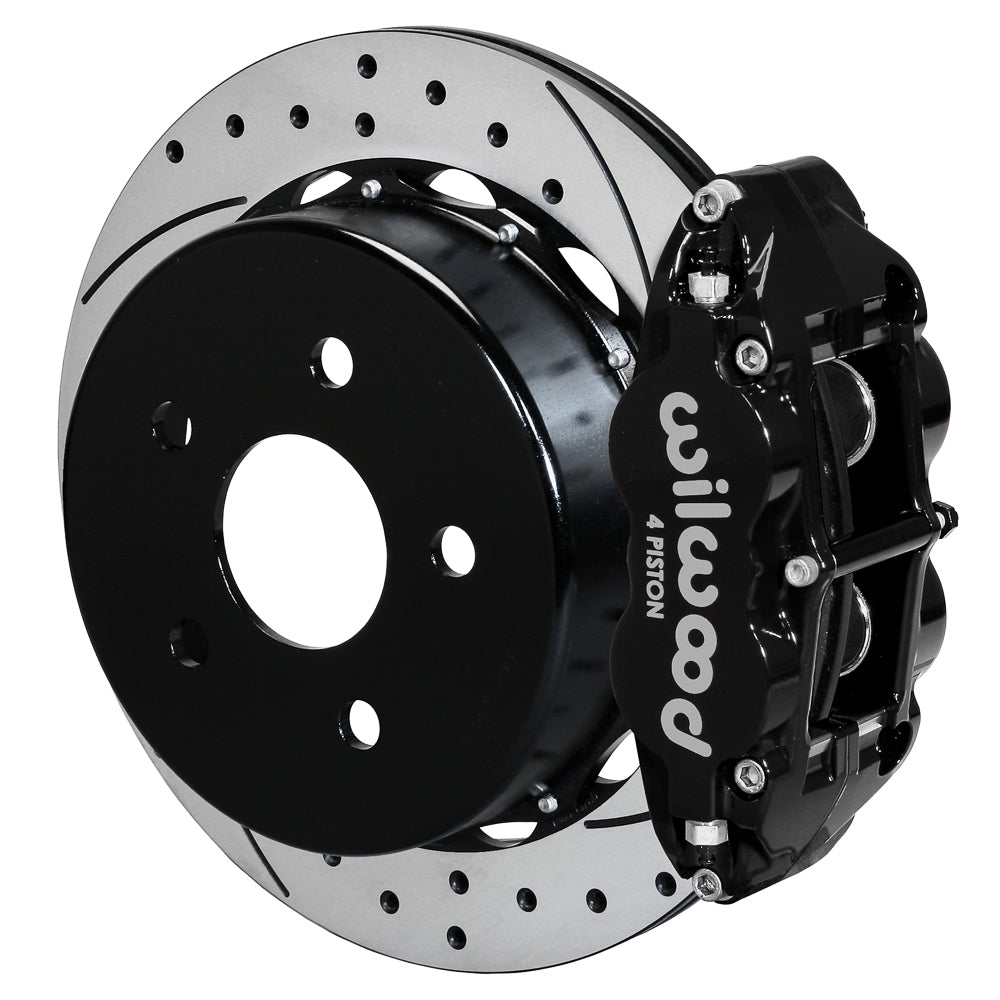

Wilwood rear Forged Narrow Superlite 4R assembly for Jeep Wrangler JK, black caliper and 13.5-inch srp drilled and slotted rotor
Wilwood rear Forged Narrow Superlite 4R kit components for Jeep Wrangler JK, black calipers and 13.5-inch srp drilled and slotted rotors
Wilwood rear Forged Narrow Superlite 4R assembly for Jeep Wrangler JK, black caliper and 13.5-inch srp drilled and slotted rotor

Wilwood Rear Black Superlite SRP Brakes for Wrangler JK (2007–2018), 13.50-Inch with Hoses

SKU: 140-18074-D

$2,290.94 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black Superlite calipers clamp 13.50-inch SRP drilled-and-slotted rotors in this Wrangler JK rear conversion. The package includes hydraulic hoses but depends on the Jeep’s original parking-brake assembly and requires dust-shield modification. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.

Technical Details

  • Manufacturer part number: 140-18074-D
  • Rotor specification: Iron, SRP Drilled & Slotted, vented; 13.50 x 0.81 inches
  • Caliper specification: 4-piston Forged Narrow Superlite 4R in Black Powder Coat; radial mount
  • Included service pad compound: BP-22; Stainless pistons
  • Caliper body material: Forged aluminum
  • Hydraulic inlet: 1/8-27 NPT
  • Rotor/hat wheel-stud clearance pattern(s): 5 x 5 in; 5 x 127 mm; match the installed hub/axle pattern
  • Parking arrangement: retain the original parking-brake assembly
  • Hydraulic brake hoses: included; DOT-approved hose kit
  • Wheel clearance: 17-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
  • Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2007–2018 Wrangler JK configurations, including the model-year-specific two-door and Unlimited applications in the table. The kit retains the original parking-brake arrangement; verify the original brake package and five-lug 5 x 5-inch hubs.

Installation requires modification of the original dust shields as detailed in DS1639. The kit supplies the application’s 20-inch hydraulic hoses; route them to avoid stretch or contact through suspension travel.

Check the complete application table below, including its model-year splits and configuration notes.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
2007-2013 Jeep Wrangler 4 x 2 & 4 x 4 Left Hand Drive Disc Disc Rear Kit 1, 2
2007-2013 Jeep Wrangler 4 x 4 Right Hand Drive Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Rubicon Rubicon Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Sahara Sahara Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Sport Sport Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Unlimited Rubicon Unlimited Rubicon Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Unlimited Sahara Unlimited Sahara Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Unlimited Sport Unlimited Sport Disc Disc Rear Kit 1, 2
2014 Jeep Wrangler Unlimited Willys Wheeler Unlimited Willys Wheeler Disc Disc Rear Kit 1, 2
2014 Jeep Wrangler Willys Wheeler Willys Wheeler Disc Disc Rear Kit 1, 2
2016 Jeep Wrangler 75th Anniversary 75th Anniversary Disc Disc Rear Kit 1, 2
2016 Jeep Wrangler Sport S Sport S Disc Disc Rear Kit 1, 2
2016 Jeep Wrangler Unlimited 75th Anniversary Unlimited 75th Anniversary Disc Disc Rear Kit 1, 2
2016 Jeep Wrangler Unlimited Sport S Unlimited Sport S Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Rubicon Rubicon Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Sahara Sahara Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Sport Sport Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Unlimited Rubicon Unlimited Rubicon Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Unlimited Sahara Unlimited Sahara Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Unlimited Sport Unlimited Sport Disc Disc Rear Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): 220-13968 (20.00 in)
  2. Rear line-kit reference: 220-13968
