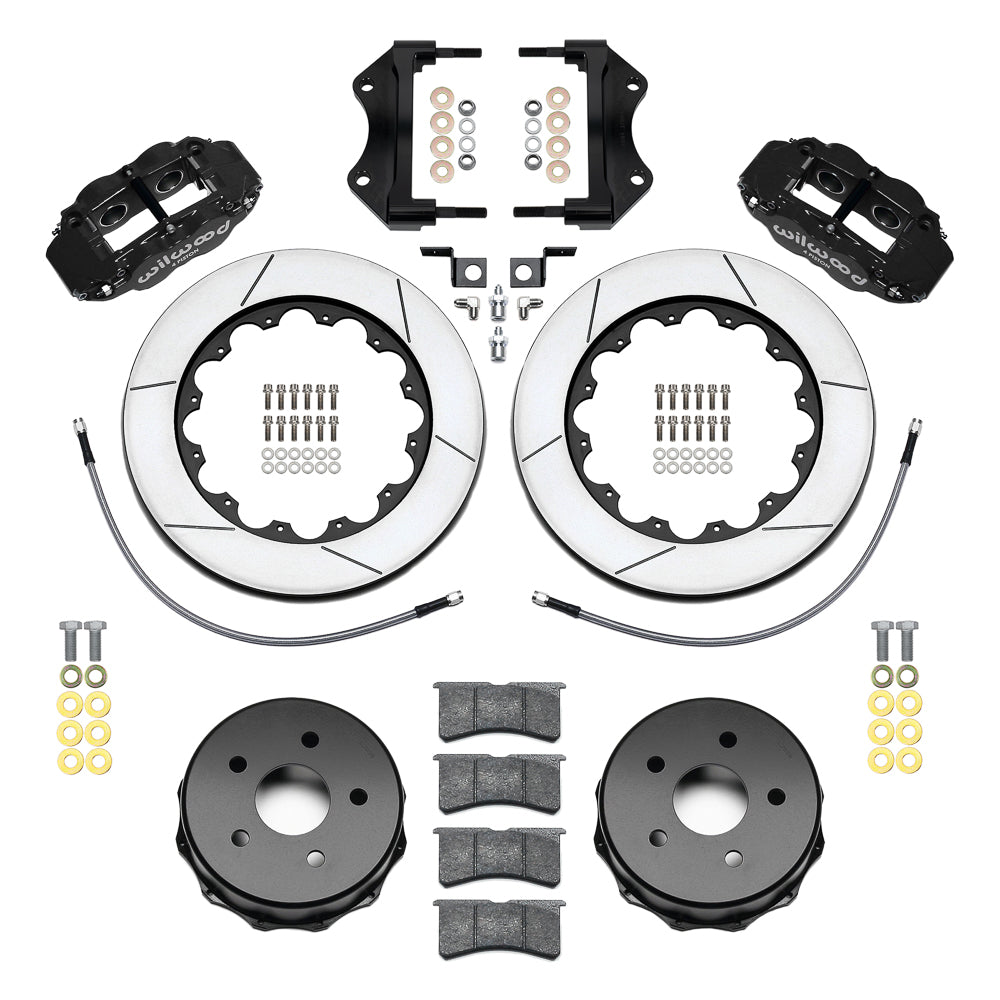

Wilwood rear Forged Narrow Superlite 4R kit components for Jeep Wrangler JK, black calipers and 13.5-inch gt slotted rotors

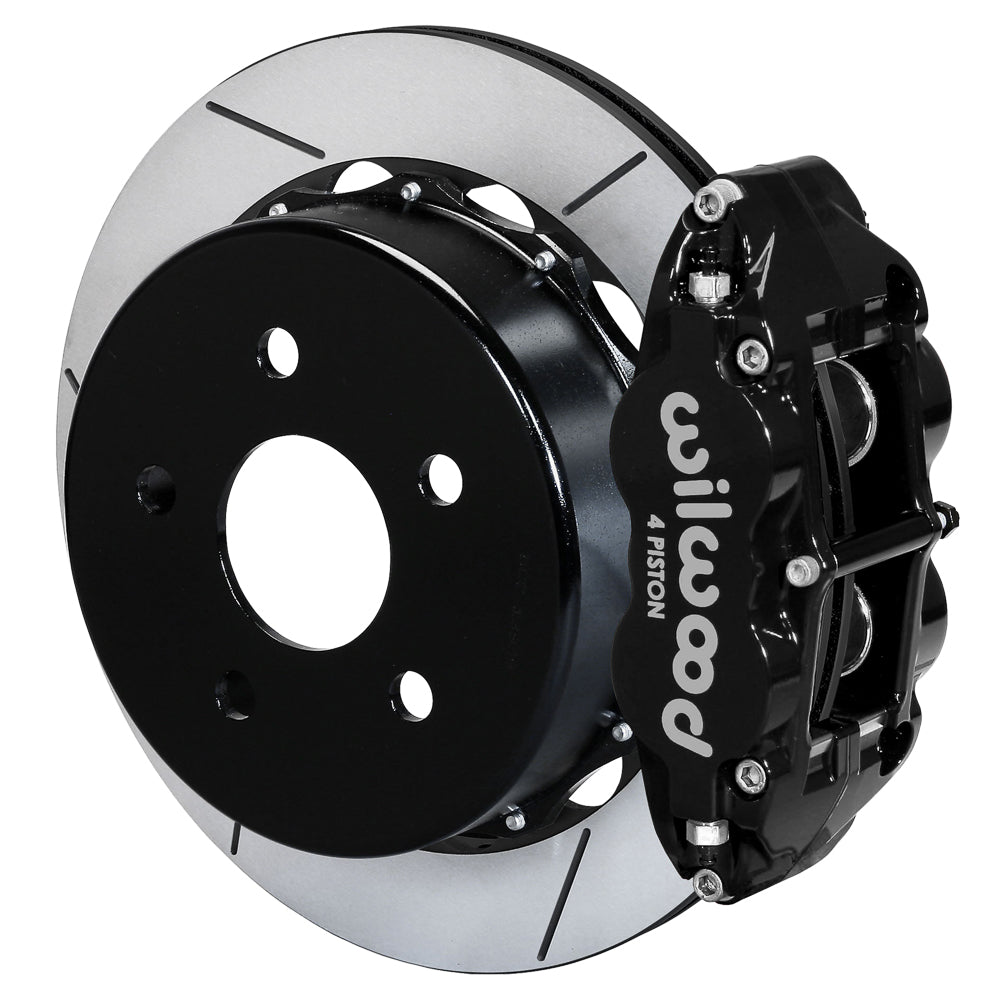

Wilwood rear Forged Narrow Superlite 4R assembly for Jeep Wrangler JK, black caliper and 13.5-inch gt slotted rotor
Wilwood rear Forged Narrow Superlite 4R kit components for Jeep Wrangler JK, black calipers and 13.5-inch gt slotted rotors
Wilwood rear Forged Narrow Superlite 4R assembly for Jeep Wrangler JK, black caliper and 13.5-inch gt slotted rotor

Wilwood Rear Wrangler JK Brake Kit (2007–2018), Black FNSL4R & 13.50-Inch GT Rotors

SKU: 140-18074

$2,290.94 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This Wrangler JK rear kit uses black FNSL4R calipers and 13.50-inch GT-slotted brake rotors while retaining the factory parking brake. BP-22 pads and the specified 20-inch hose set accompany the four-piston service-brake hardware. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977, the company also produces the individual calipers, brake rotors, master cylinders, valves, fittings and brake lines used in these installations. Selection should account for how each component works within the complete brake system.

Technical Details

  • Manufacturer part number: 140-18074
  • Service calipers: Forged Narrow Superlite 4R; 4 pistons; radial mount; Black Powder Coat
  • Brake rotors: 13.50 x 0.81 inches; Iron; GT Slotted; vented construction
  • Pads: BP-22; piston material: Stainless
  • Caliper body material: Forged aluminum
  • Hydraulic inlet: 1/8-27 NPT
  • Rotor/hat wheel-stud clearance pattern(s): 5 x 5 in; 5 x 127 mm; match the installed hub/axle pattern
  • Parking arrangement: retain the original parking-brake assembly
  • Hydraulic brake hoses: included; DOT-approved hose kit
  • Wheel clearance: 17-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
  • Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2007–2018 Wrangler JK configurations, including the model-year-specific two-door and Unlimited applications in the table. The kit retains the original parking-brake arrangement; verify the original brake package and five-lug 5 x 5-inch hubs.

Installation requires modification of the original dust shields as detailed in DS1639. The kit supplies the application’s 20-inch hydraulic hoses; route them to avoid stretch or contact through suspension travel.

Use the fitment table below to confirm the exact year, model, trim and installation notes.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
2007-2013 Jeep Wrangler 4 x 2 & 4 x 4 Left Hand Drive Disc Disc Rear Kit 1, 2
2007-2013 Jeep Wrangler 4 x 4 Right Hand Drive Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Rubicon Rubicon Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Sahara Sahara Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Sport Sport Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Unlimited Rubicon Unlimited Rubicon Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Unlimited Sahara Unlimited Sahara Disc Disc Rear Kit 1, 2
2014-2017 Jeep Wrangler Unlimited Sport Unlimited Sport Disc Disc Rear Kit 1, 2
2014 Jeep Wrangler Unlimited Willys Wheeler Unlimited Willys Wheeler Disc Disc Rear Kit 1, 2
2014 Jeep Wrangler Willys Wheeler Willys Wheeler Disc Disc Rear Kit 1, 2
2016 Jeep Wrangler 75th Anniversary 75th Anniversary Disc Disc Rear Kit 1, 2
2016 Jeep Wrangler Sport S Sport S Disc Disc Rear Kit 1, 2
2016 Jeep Wrangler Unlimited 75th Anniversary Unlimited 75th Anniversary Disc Disc Rear Kit 1, 2
2016 Jeep Wrangler Unlimited Sport S Unlimited Sport S Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Rubicon Rubicon Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Sahara Sahara Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Sport Sport Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Unlimited Rubicon Unlimited Rubicon Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Unlimited Sahara Unlimited Sahara Disc Disc Rear Kit 1, 2
2018 Jeep Wrangler JK Unlimited Sport Unlimited Sport Disc Disc Rear Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): 220-13968 (20.00 in)
  2. Rear line-kit reference: 220-13968
