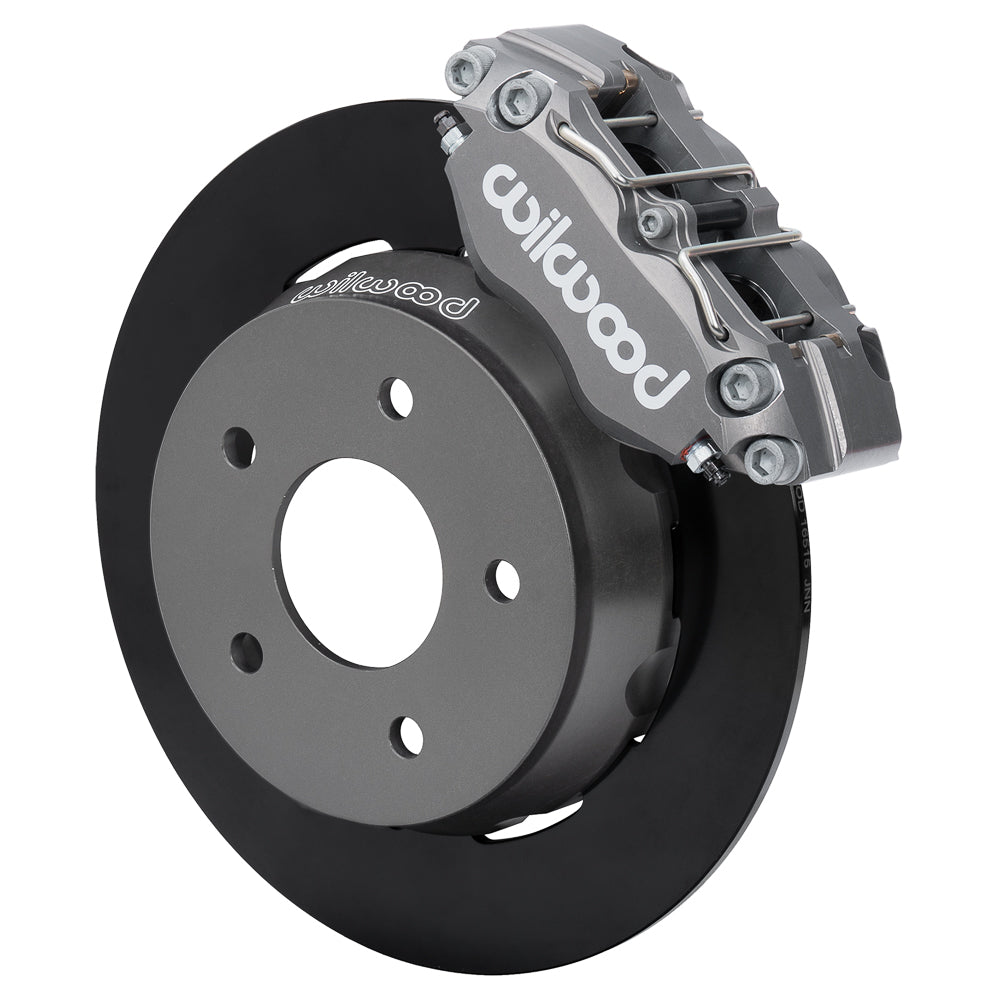

Wilwood Front NDPR Race Brakes for RZR Pro R/Turbo R (2022–2024), Type III Anodized, BP-28 & Plain 11.25-Inch Rotors

Wilwood specifies Type III anodized NDPR calipers and BP-28 pads for this RZR front race kit. The included 11.25-inch plain steel rotors use the Lug-Drive mounting system for the listed five-lug Pro R and Turbo R applications. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

• Manufacturer part number: 140-18072
• Service calipers: NDPR; 4 pistons; radial mount; Type III Anodize
• Brake rotors: 11.25 x 0.25 inches; Steel; Plain face; solid construction
• Pads: BP-28; piston material: Stainless
• Caliper body material: aluminum
• Hydraulic inlet: M10 x 1.25
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; match the installed hub/axle pattern
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 15-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

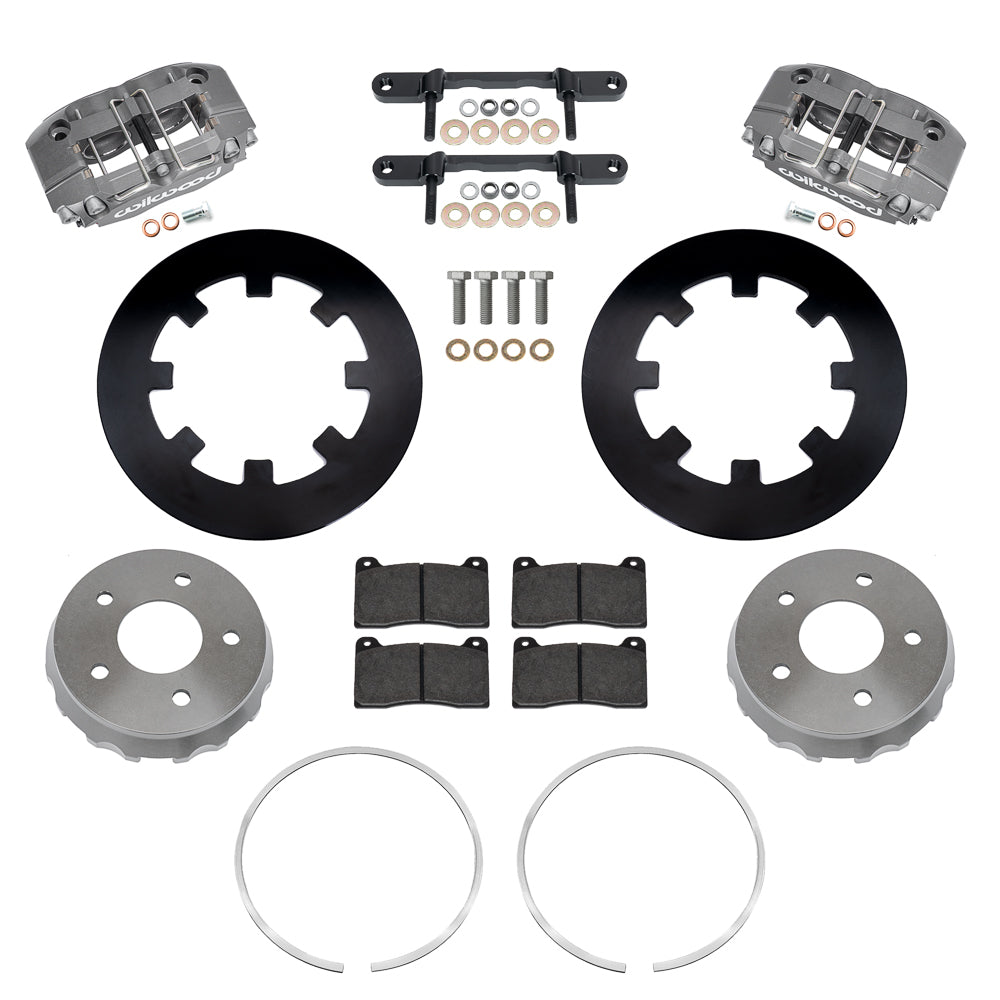

• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2022–2024 Polaris RZR Pro R, Pro R 4, Turbo R and Turbo R 4 versions with five-lug hubs. Sport, Premium, Ultimate and Launch Edition coverage varies by model year; use the table rather than assuming every trim is included.

The supplied M10 x 1.25 banjo bolts must replace the original M10 x 1.00 bolts at the new calipers. Retain the applicable original brake hoses with the supplied fittings; do not force the original bolt thread into the caliper.

Use the fitment table below to confirm the exact year, model, trim and installation notes.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
