Wilwood Rear Red NDPR Plain-Rotor Package — Polaris RZR Pro R/Turbo R (2022–2024), 11.25-Inch

The plain-rotor rear option uses red NDPR calipers on compatible RZR Pro R and Turbo R five-lug hubs. Its 11.25-inch solid steel rotors are dynamically mounted, so the supplied mounting instructions govern rotor assembly and clearance. Wilwood Engineering’s disc brake systems and components serve motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California. Wilwood designs and manufactures brake rotors and calipers as well as master cylinders, valves, brake lines and fittings. Selecting compatible components is essential to the complete system.

Technical Details

• Manufacturer part number: 140-18060-R
• Rotor specification: Steel, Plain Face, solid; 11.25 x 0.25 inches
• Caliper specification: 4-piston NDPR in Red Powder Coat; radial mount
• Included service pad compound: BP-10; Stainless pistons
• Caliper body material: aluminum
• Hydraulic inlet: M10 x 1.25
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; match the installed hub/axle pattern
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 15-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

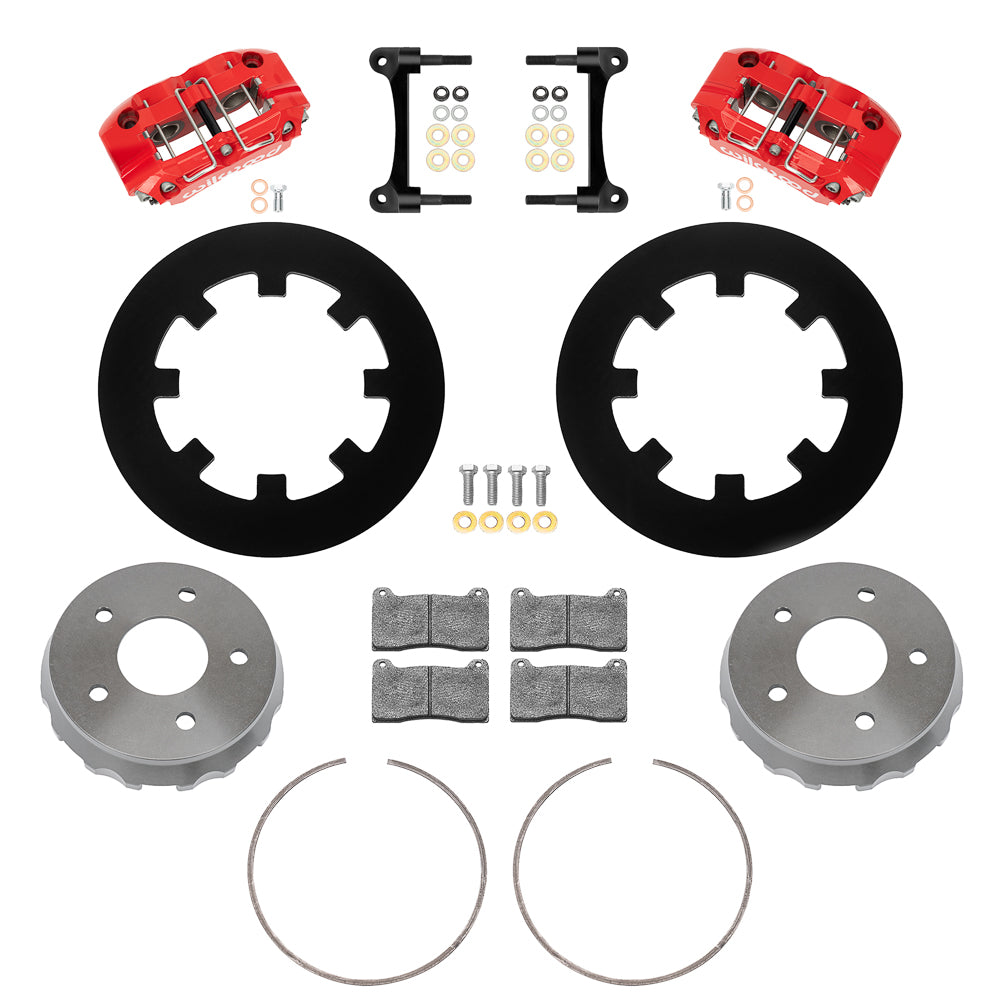

• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2022–2024 Polaris RZR Pro R, Pro R 4, Turbo R and Turbo R 4 versions with five-lug hubs. Sport, Premium, Ultimate and Launch Edition coverage varies by model year; use the table rather than assuming every trim is included.

The supplied M10 x 1.25 banjo bolts must replace the original M10 x 1.00 bolts at the new calipers. Retain the applicable original brake hoses with the supplied fittings; do not force the original bolt thread into the caliper.

The table below provides the full application breakdown; match its year, model and brake-configuration details.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
