Wilwood Rear RZR Pro R/Turbo R Conversion (2022–2024) — Black NDPR, Plain 11.25-Inch Rotors

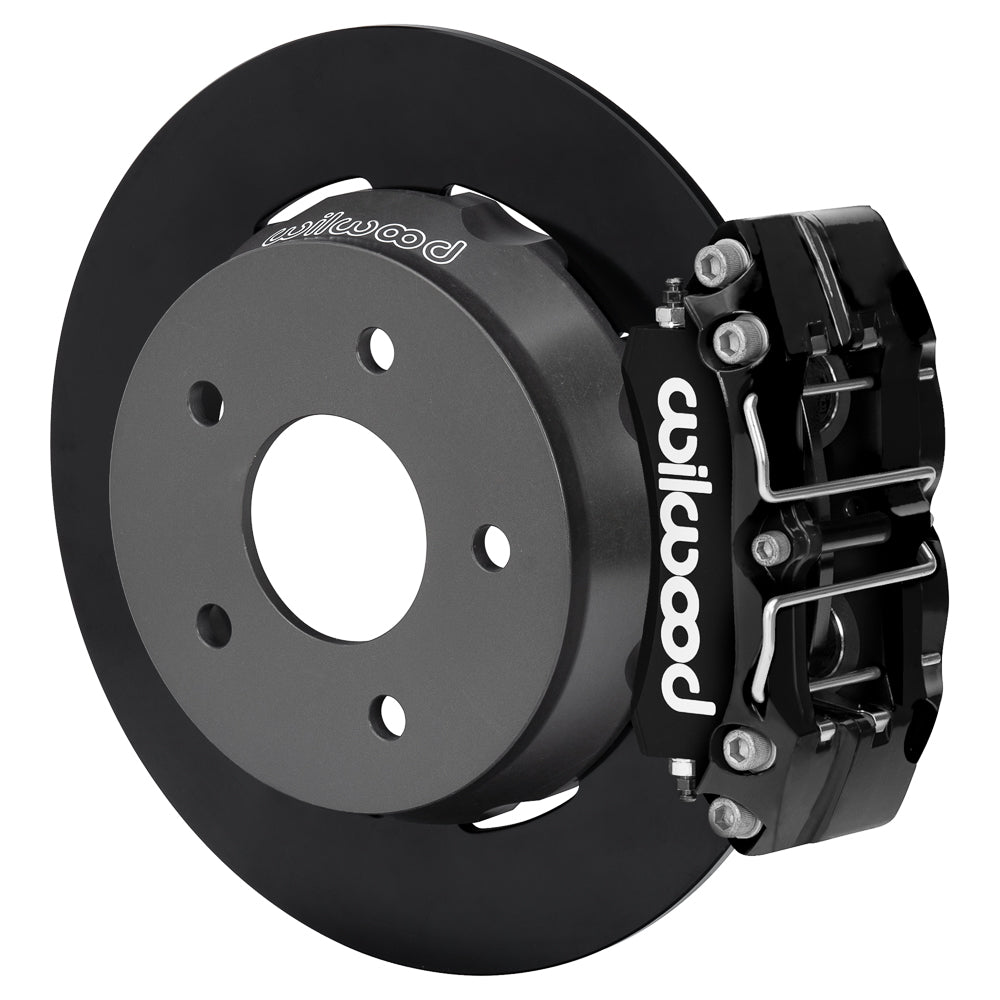

Black four-piston NDPR calipers and plain 11.25-inch rotors form this Wilwood rear brake conversion for the five-lug RZR platform. The solid steel rotor rings mount through Wilwood’s Lug-Drive arrangement, with BP-10 pads supplied for the service calipers. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. It designs and manufactures disc brake components and complete systems, from calipers and brake rotors to valves, master cylinders, fittings and brake lines. Motorsport, street-performance and specialized installations each require those components to be matched to the complete brake system.

Technical Details

• Manufacturer part number: 140-18060
• Service calipers: NDPR; 4 pistons; radial mount; Black Powder Coat
• Brake rotors: 11.25 x 0.25 inches; Steel; Plain Face; solid construction
• Pads: BP-10; piston material: Stainless
• Caliper body material: aluminum
• Hydraulic inlet: M10 x 1.25
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; match the installed hub/axle pattern
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 15-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

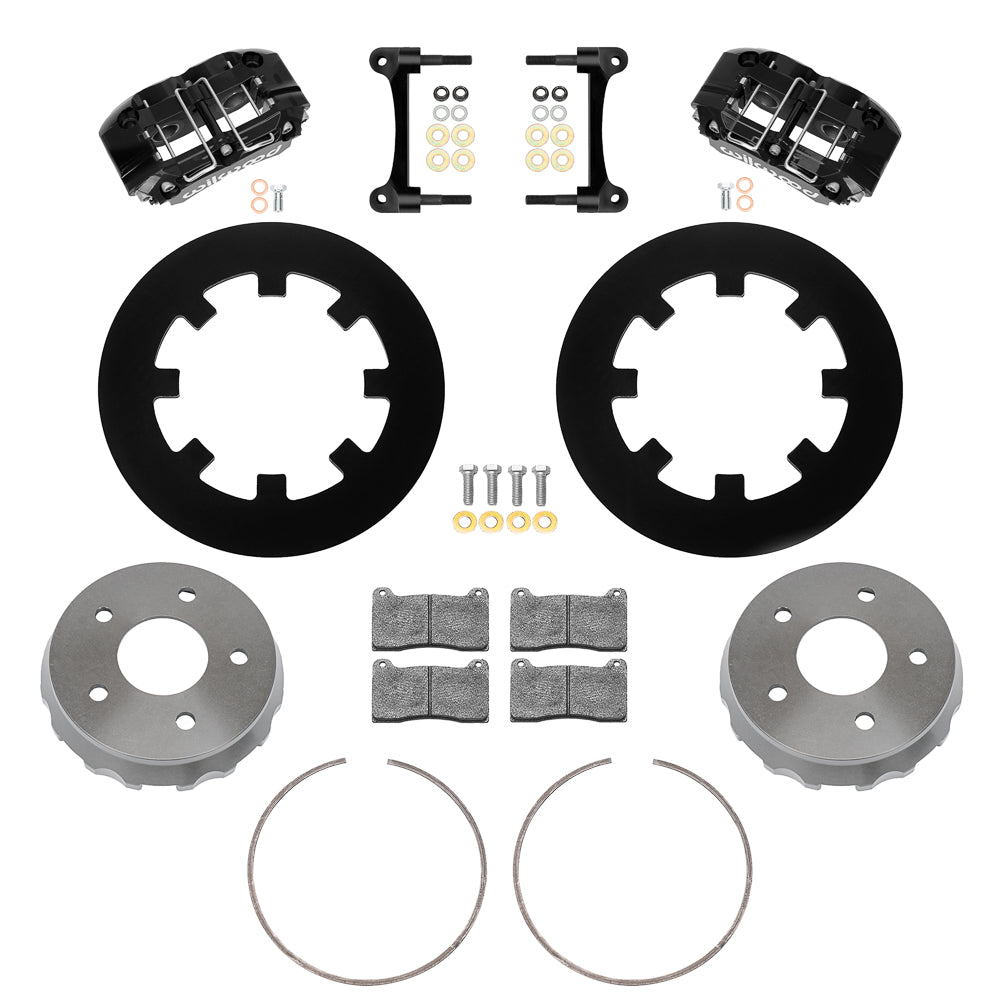

• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2022–2024 Polaris RZR Pro R, Pro R 4, Turbo R and Turbo R 4 versions with five-lug hubs. Sport, Premium, Ultimate and Launch Edition coverage varies by model year; use the table rather than assuming every trim is included.

The supplied M10 x 1.25 banjo bolts must replace the original M10 x 1.00 bolts at the new calipers. Retain the applicable original brake hoses with the supplied fittings; do not force the original bolt thread into the caliper.

Use the fitment table below to confirm the exact year, model, trim and installation notes.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of experience with brake components and fitment details. Send us your VIN together with the installed axle, spindle, brake and wheel specifications if you need help confirming this package.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
