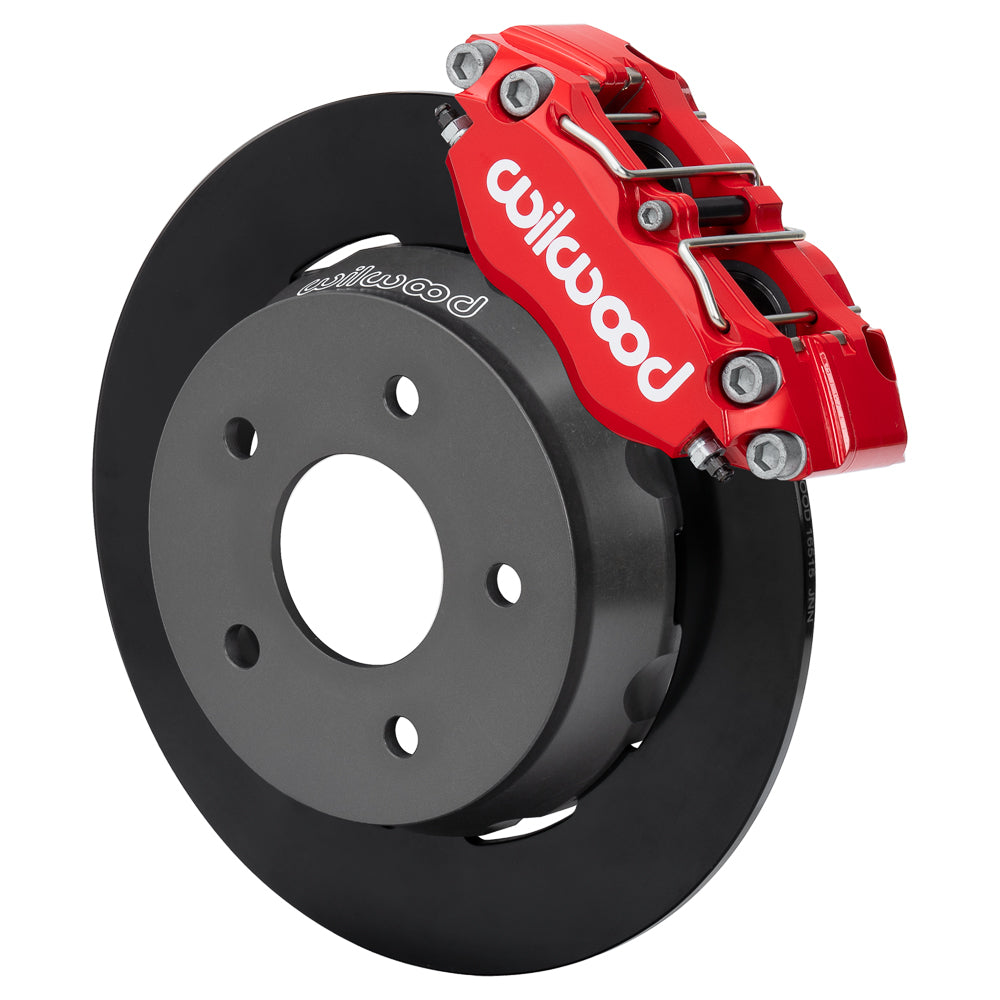

Wilwood Front RZR Pro R/Turbo R Brake Kit (2022–2024), Red Calipers & Plain-Face 11.25-Inch Rotors

Choose this red NDPR front configuration when the intended RZR build calls for plain-face steel rotors. The 11.25-inch rotor diameter, 0.25-inch thickness and five-lug application must all match the vehicle and wheel installation. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines as part of its disc brake systems and component range for motorsport, street-performance and specialized applications. Each component must suit the requirements of the complete brake installation.

Technical Details

• Manufacturer part number: 140-18059-R
• Rotor specification: Steel, Plain Face, solid; 11.25 x 0.25 inches
• Caliper specification: 4-piston NDPR in Red Powder Coat; radial mount
• Included service pad compound: BP-10; Stainless pistons
• Caliper body material: aluminum
• Hydraulic inlet: M10 x 1.25
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; match the installed hub/axle pattern
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 15-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

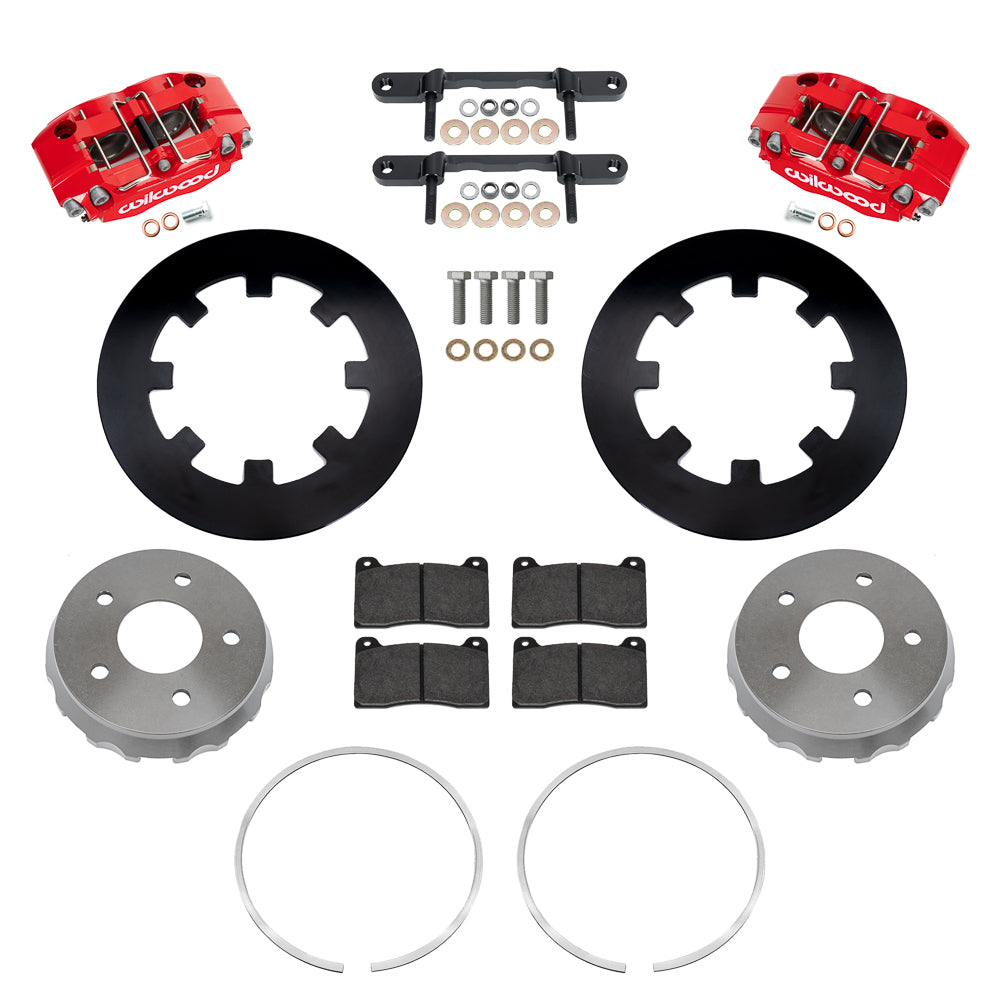

• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2022–2024 Polaris RZR Pro R, Pro R 4, Turbo R and Turbo R 4 versions with five-lug hubs. Sport, Premium, Ultimate and Launch Edition coverage varies by model year; use the table rather than assuming every trim is included.

The supplied M10 x 1.25 banjo bolts must replace the original M10 x 1.00 bolts at the new calipers. Retain the applicable original brake hoses with the supplied fittings; do not force the original bolt thread into the caliper.

The table below provides the full application breakdown; match its year, model and brake-configuration details.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
