Wilwood Front Red NDPR Brakes with 11.25-Inch Drilled Rotors — RZR Pro R/Turbo R (2022–2024)

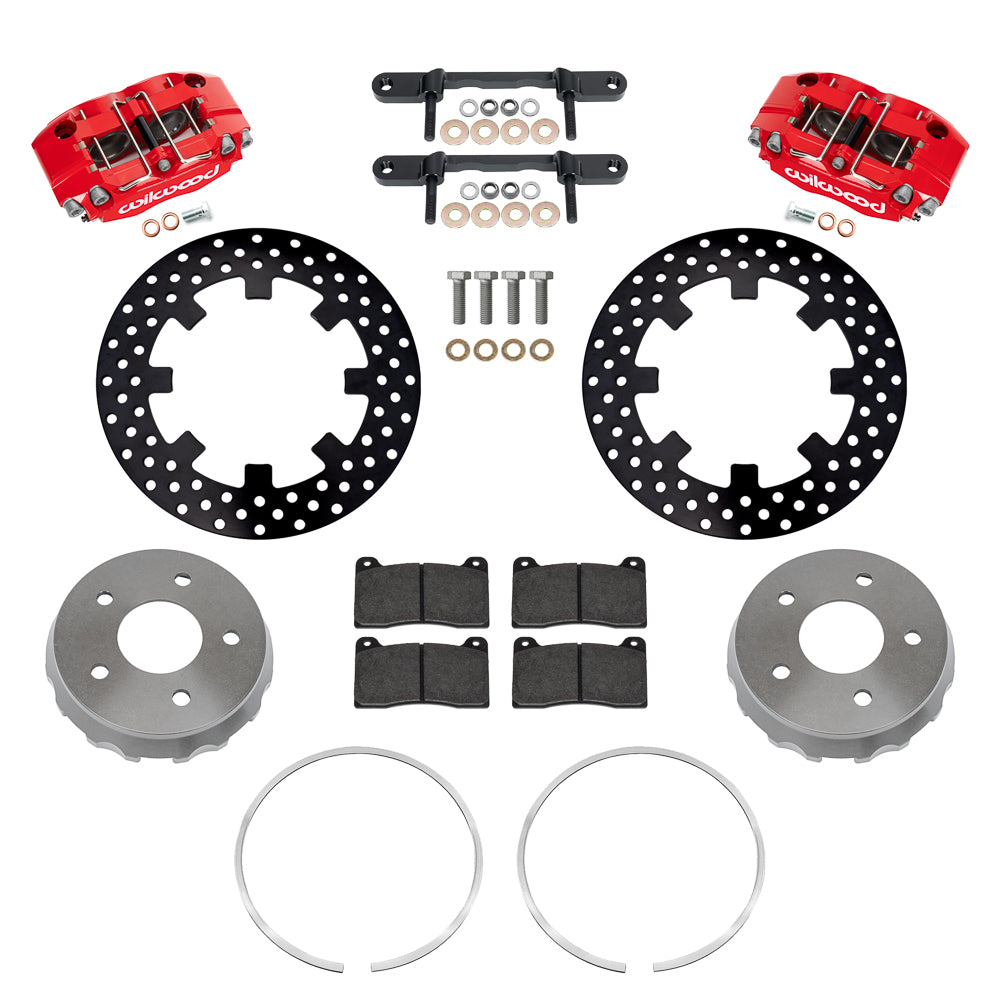

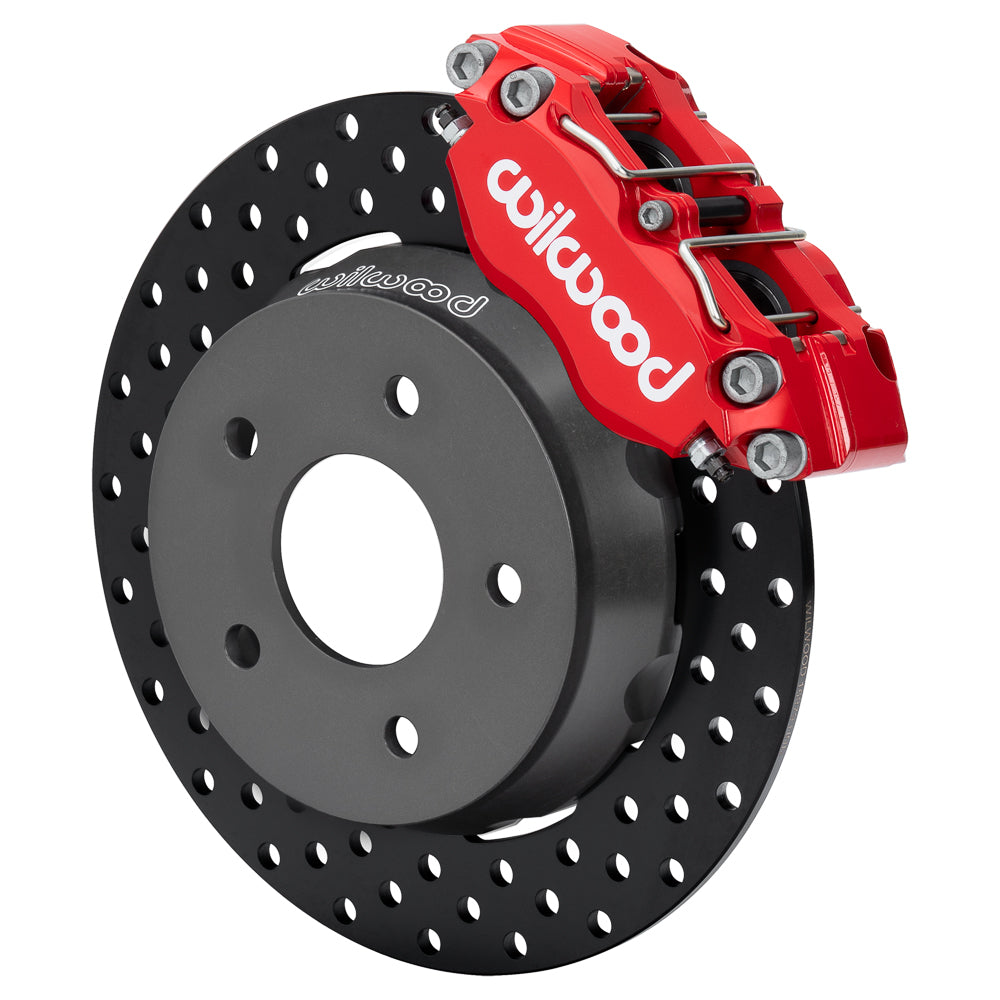

The red NDPR front conversion pairs drilled steel rotors with four-piston calipers for the listed RZR Pro R and Turbo R models. Its 11.25-inch Lug-Drive rotors use the five-lug hub layout, and BP-10 pads are included. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded by Bill Wood in 1977, the company also produces the individual calipers, brake rotors, master cylinders, valves, fittings and brake lines used in these installations. Selection should account for how each component works within the complete brake system.

Technical Details

• Manufacturer part number: 140-18059-DR
• Service calipers: NDPR; 4 pistons; radial mount; Red Powder Coat
• Brake rotors: 11.25 x 0.25 inches; Steel; Drilled; solid construction
• Pads: BP-10; piston material: Stainless
• Caliper body material: aluminum
• Hydraulic inlet: M10 x 1.25
• Rotor/hat wheel-stud clearance pattern(s): 5 x 4.5 in; 5 x 114.3 mm; match the installed hub/axle pattern
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 15-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed 2022–2024 Polaris RZR Pro R, Pro R 4, Turbo R and Turbo R 4 versions with five-lug hubs. Sport, Premium, Ultimate and Launch Edition coverage varies by model year; use the table rather than assuming every trim is included.

The supplied M10 x 1.25 banjo bolts must replace the original M10 x 1.00 bolts at the new calipers. Retain the applicable original brake hoses with the supplied fittings; do not force the original bolt thread into the caliper.

Confirm the applicable vehicle entry and all numbered notes in the fitment table below.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
