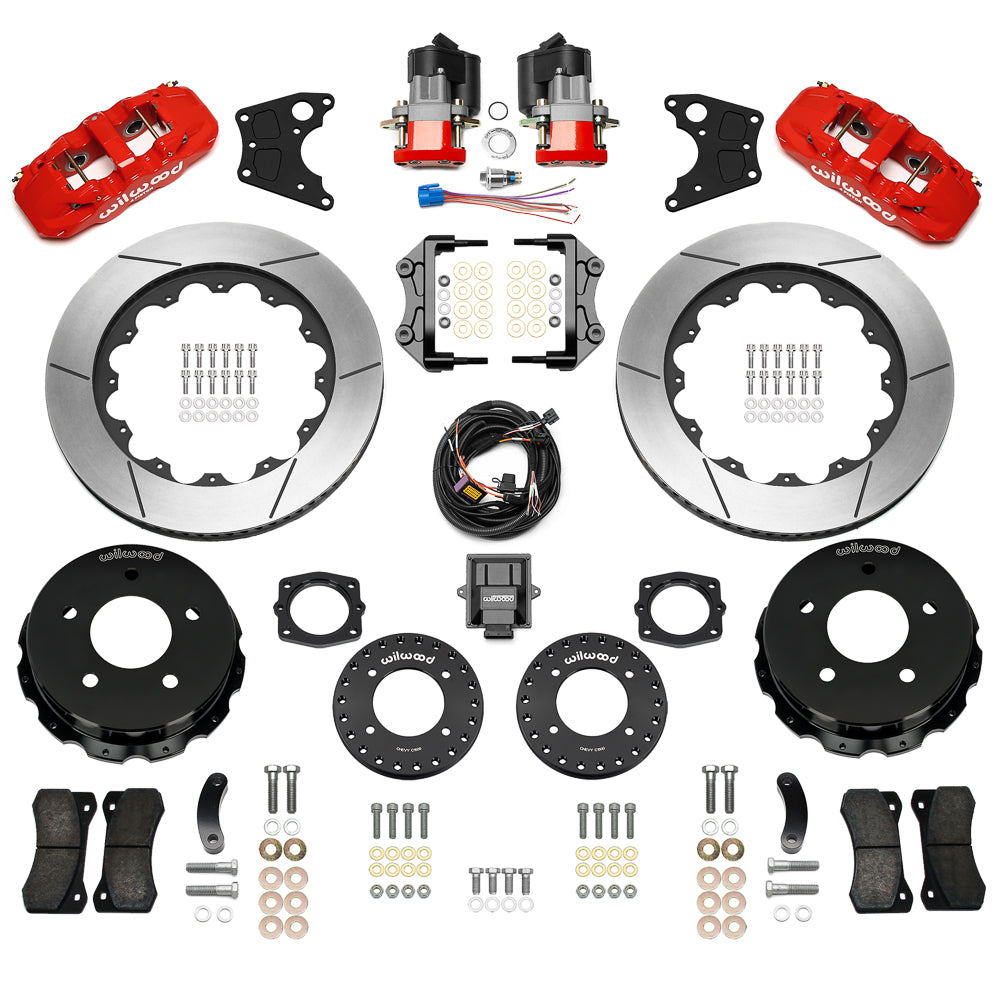

Wilwood rear AERO4 kit components for C1500, red calipers and 14-inch gt slotted rotors, with electric parking calipers

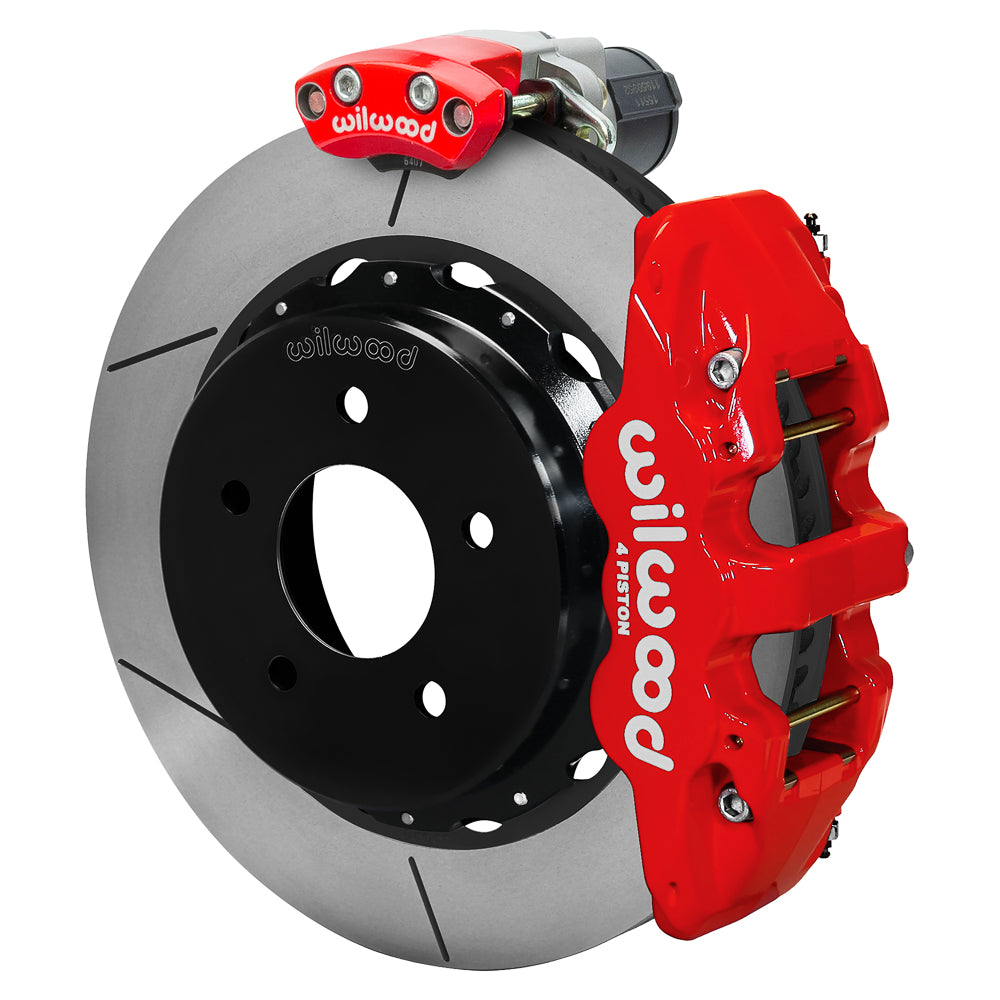

Wilwood rear AERO4 assembly for C1500, red caliper and 14-inch gt slotted rotor, with electric parking caliper
Wilwood rear AERO4 kit components for C1500, red calipers and 14-inch gt slotted rotors, with electric parking calipers
Wilwood rear AERO4 assembly for C1500, red caliper and 14-inch gt slotted rotor, with electric parking caliper

Wilwood Rear Red AERO4 Brakes for C1500 (1988–1998), 14-Inch GT Rotors and EPB Controls

SKU: 140-18046-R

$3,988.60 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red AERO4 calipers, BP-20 pads and GT-slotted 14-inch rotors distinguish this C1500 rear EPB kit. Check the axle flange and available wheel envelope before committing to the larger rotor package. Founded in 1977 by Bill Wood and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to work together within a properly matched brake system.

Technical Details

  • Manufacturer part number: 140-18046-R
  • Rotor specification: Spec-37 Iron, GT Slotted, vented; 14.00 x 1.10 inches
  • Caliper specification: 4-piston AERO4 in Red Powder Coat; radial mount
  • Included service pad compound: BP-20; Stainless pistons
  • Caliper body material: Forged aluminum
  • Hydraulic inlet: 1/8-27 NPT
  • Rotor/hat wheel-stud clearance pattern(s): 5 x 5 in; 5 x 127 mm; match the installed hub/axle pattern
  • Housing/flange application: 88-98 C1500
  • Required axle offset: 3.25 in; 82.55 mm
  • Parking equipment: separate electric calipers, controller and harness included
  • Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
  • Wheel clearance: 18-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
  • Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

Use on the specified 1988–1998 Chevrolet/GMC C1500 rear axle configurations, following every brake-option and spindle qualification in the table. Required dimensions include a 3.25-inch axle offset, 5 x 5-inch lug pattern and 3.09-inch axle register.

The axle flange must not exceed 6.61 inches and needs the specified 0.050-inch x 45-degree chamfer. Confirm clearance around both the service and parking calipers using the manufacturer’s diagram before selecting wheels.

The table below provides the full application breakdown; match its year, model and brake-configuration details.

The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.

Manufacturer Resources

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1988-1991 Chevrolet C1500 Pickup 4 x 2 w/ 1.00" Wide Front Rotor Disc Drum Rear Kit 1
1988-1991 Chevrolet C1500 Pickup 4 x 2 w/ 1.00" Wide Front Rotor Disc Drum Rear Kit 1
1988-1991 Chevrolet C1500 Pickup 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44) Disc Drum Rear Kit 1
1988-1991 Chevrolet C1500 Pickup 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44) Disc Drum Rear Kit 1
1988-1998 Chevrolet C1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1
1988-1998 Chevrolet C1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1
1988-1991 GMC C1500 Pickup 4 x 2 w/ 1.00" Wide Front Rotor Disc Drum Rear Kit 1
1988-1991 GMC C1500 Pickup 4 x 2 w/ 1.00" Wide Front Rotor Disc Drum Rear Kit 1
1988-1991 GMC C1500 Pickup 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44) Disc Drum Rear Kit 1
1988-1991 GMC C1500 Pickup 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44) Disc Drum Rear Kit 1
1988-1998 GMC C1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1
1988-1998 GMC C1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Rear Kit 1
1992-1998 Chevrolet C1500 Pickup 5 Lug - 4 x 2 Disc Drum Rear Kit 1
1992-1998 Chevrolet C1500 Pickup 5 Lug - 4 x 2 Disc Drum Rear Kit 1
1992-1998 GMC C1500 Pickup 5 Lug - 4 x 2 Disc Drum Rear Kit 1
1992-1998 GMC C1500 Pickup 5 Lug - 4 x 2 Disc Drum Rear Kit 1

Application Notes

  1. Line kit included (manufacturer): None
