Product details

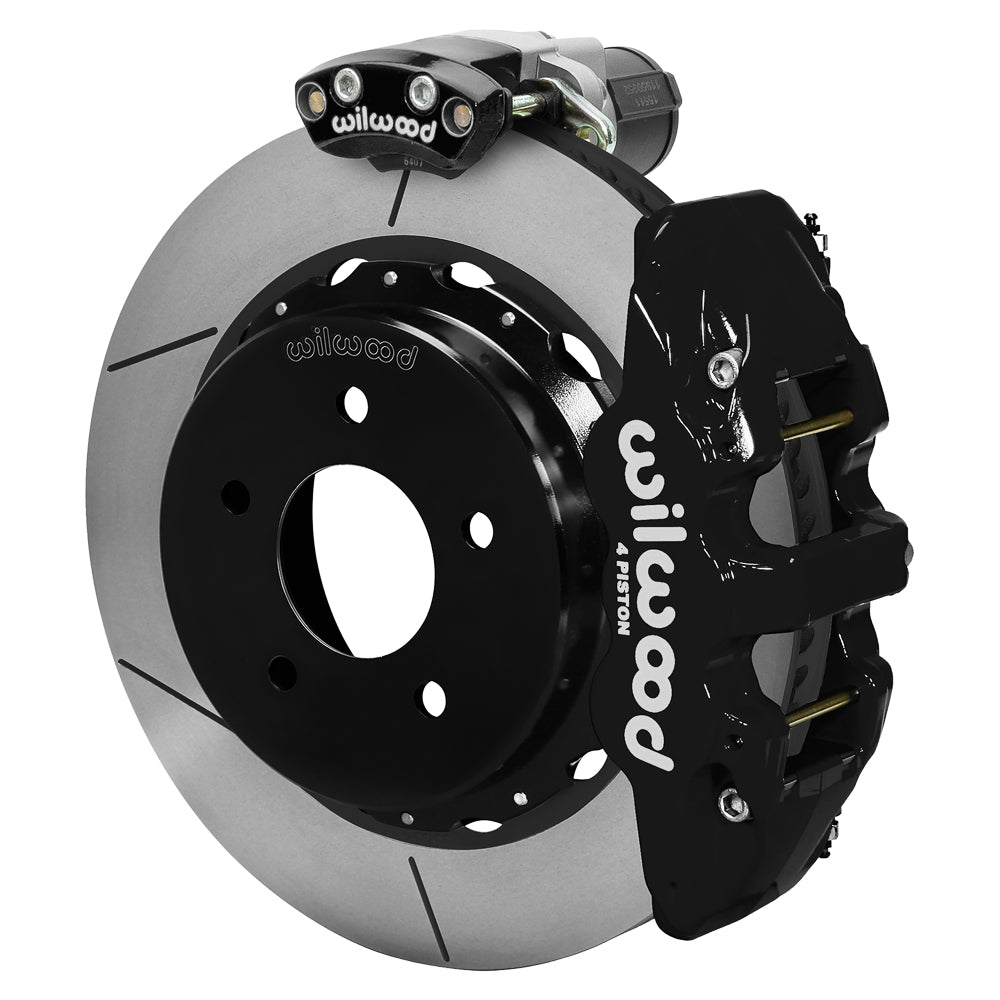

The black AERO4 C1500 rear package brings together 14-inch GT-slotted Spec-37 rotors and BP-20 pads in four-piston service calipers. Dedicated EPB calipers, a controller and a harness provide the accompanying parking-brake system. Wilwood Engineering’s disc brake systems and components serve motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California. Wilwood designs and manufactures brake rotors and calipers as well as master cylinders, valves, brake lines and fittings. Selecting compatible components is essential to the complete system.
Technical Details
- Manufacturer part number: 140-18046
- Service calipers: AERO4; 4 pistons; radial mount; Black Powder Coat
- Brake rotors: 14.00 x 1.10 inches; Spec-37 Iron; GT Slotted; vented construction
- Pads: BP-20; piston material: Stainless
- Caliper body material: Forged aluminum
- Hydraulic inlet: 1/8-27 NPT
- Rotor/hat wheel-stud clearance pattern(s): 5 x 5 in; 5 x 127 mm; match the installed hub/axle pattern
- Housing/flange application: 88-98 C1500
- Required axle offset: 3.25 in; 82.55 mm
- Parking equipment: separate electric calipers, controller and harness included
- Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
- Wheel clearance: 18-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

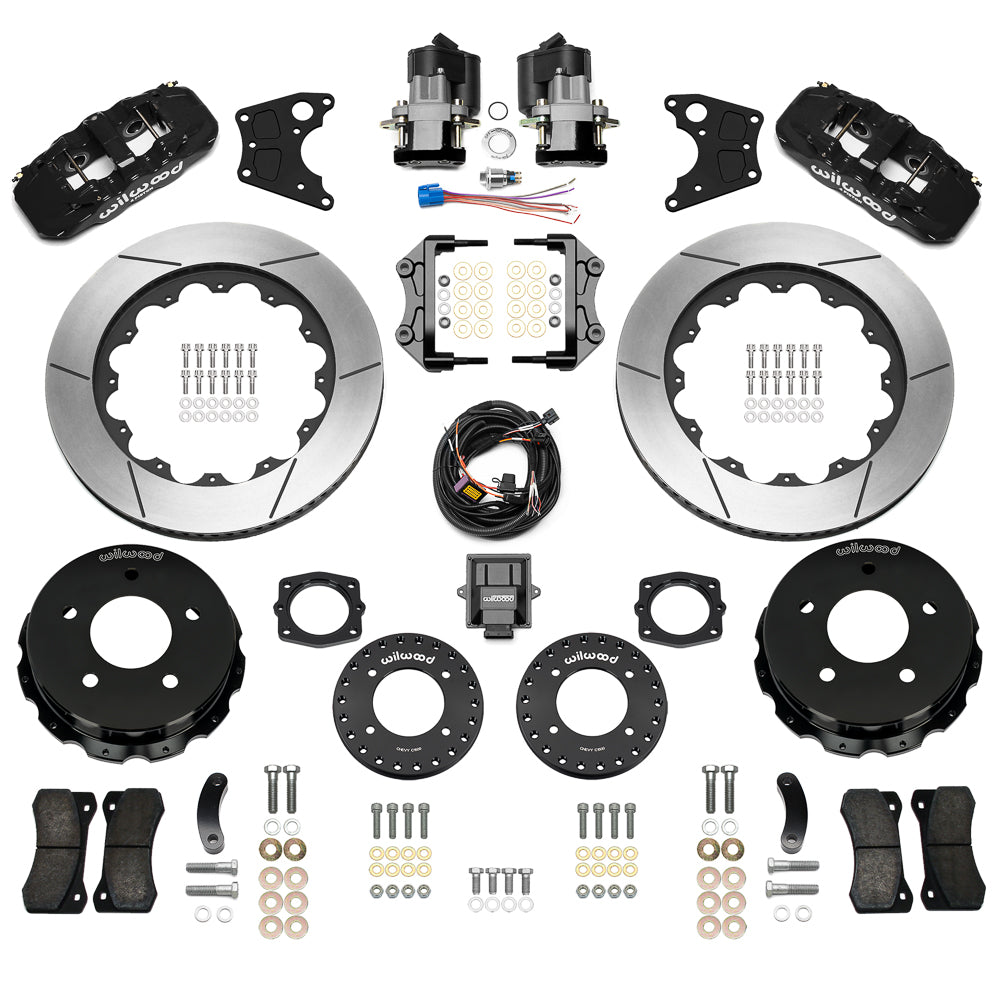

- Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included
Fitment & Compatibility
Use on the specified 1988–1998 Chevrolet/GMC C1500 rear axle configurations, following every brake-option and spindle qualification in the table. Required dimensions include a 3.25-inch axle offset, 5 x 5-inch lug pattern and 3.09-inch axle register.
The axle flange must not exceed 6.61 inches and needs the specified 0.050-inch x 45-degree chamfer. Confirm clearance around both the service and parking calipers using the manufacturer’s diagram before selecting wheels.
Use the fitment table below to confirm the exact year, model, trim and installation notes.
The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.
Manufacturer Resources
- Exact Wilwood kit specifications and wheel-clearance information
- Installation instructions and component list
- Axle-offset measurement worksheet
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
With over 20 years of parts and fitment experience, PMB Performance can help review the intended brake installation. Provide your VIN, wheel measurements and any modified axle or spindle details when asking about compatibility.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1988-1991 | Chevrolet | C1500 Pickup | 4 x 2 w/ 1.00" Wide Front Rotor | Disc | Drum | Rear Kit | 1 |
| 1988-1991 | Chevrolet | C1500 Pickup | 4 x 2 w/ 1.00" Wide Front Rotor | Disc | Drum | Rear Kit | 1 |
| 1988-1991 | Chevrolet | C1500 Pickup | 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44) | Disc | Drum | Rear Kit | 1 |
| 1988-1991 | Chevrolet | C1500 Pickup | 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44) | Disc | Drum | Rear Kit | 1 |
| 1988-1998 | Chevrolet | C1500 Pickup | Vehicles using Wilwood Iron ProSpindles | Drop | Drum | Rear Kit | 1 |
| 1988-1998 | Chevrolet | C1500 Pickup | Vehicles using Wilwood Iron ProSpindles | Drop | Drum | Rear Kit | 1 |
| 1988-1991 | GMC | C1500 Pickup | 4 x 2 w/ 1.00" Wide Front Rotor | Disc | Drum | Rear Kit | 1 |
| 1988-1991 | GMC | C1500 Pickup | 4 x 2 w/ 1.00" Wide Front Rotor | Disc | Drum | Rear Kit | 1 |
| 1988-1991 | GMC | C1500 Pickup | 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44) | Disc | Drum | Rear Kit | 1 |
| 1988-1991 | GMC | C1500 Pickup | 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44) | Disc | Drum | Rear Kit | 1 |
| 1988-1998 | GMC | C1500 Pickup | Vehicles using Wilwood Iron ProSpindles | Drop | Drum | Rear Kit | 1 |
| 1988-1998 | GMC | C1500 Pickup | Vehicles using Wilwood Iron ProSpindles | Drop | Drum | Rear Kit | 1 |
| 1992-1998 | Chevrolet | C1500 Pickup | 5 Lug - 4 x 2 | Disc | Drum | Rear Kit | 1 |
| 1992-1998 | Chevrolet | C1500 Pickup | 5 Lug - 4 x 2 | Disc | Drum | Rear Kit | 1 |
| 1992-1998 | GMC | C1500 Pickup | 5 Lug - 4 x 2 | Disc | Drum | Rear Kit | 1 |
| 1992-1998 | GMC | C1500 Pickup | 5 Lug - 4 x 2 | Disc | Drum | Rear Kit | 1 |
Application Notes
- Line kit included (manufacturer): None
