Wilwood Rear 14-Inch Drilled/Slotted Brakes for C1500 (1988–1998) — Red Superlite with EPB

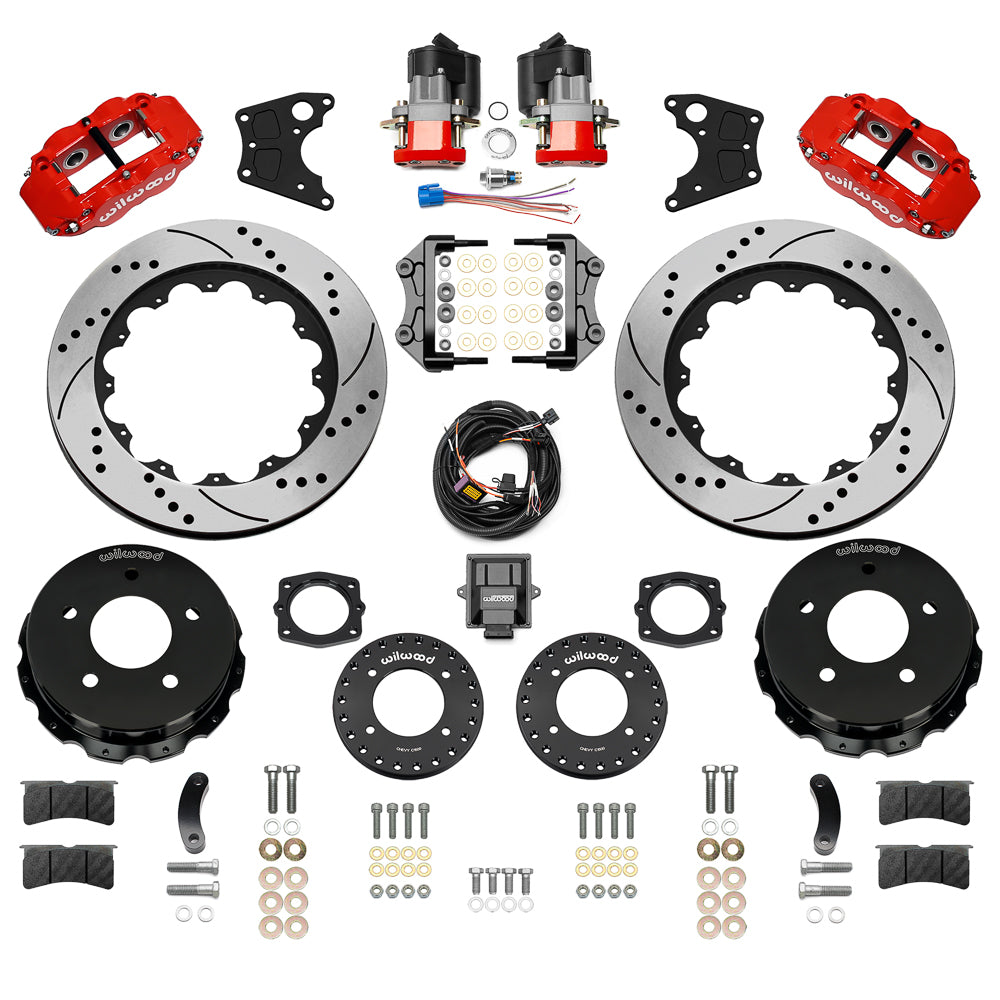

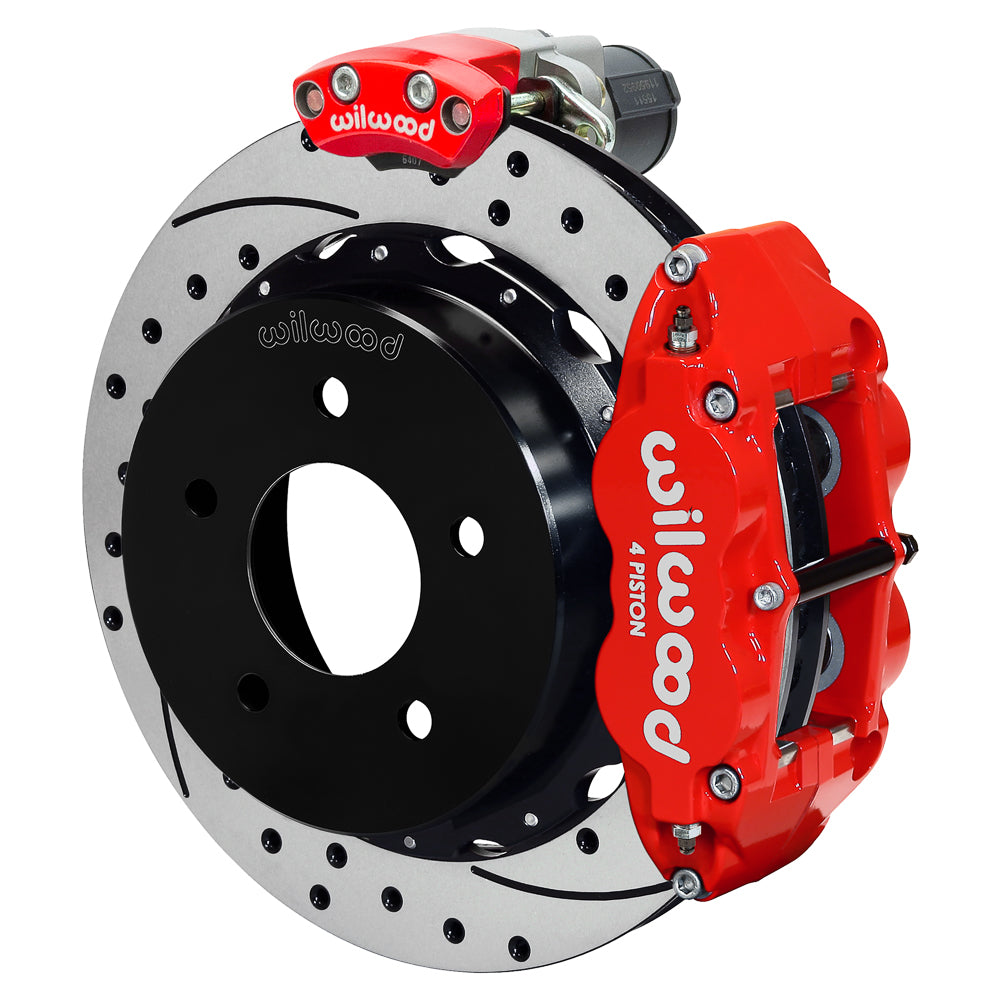

Red four-piston Superlite calipers sit over 14-inch SRP rotors in this C1500 rear brake kit. Parking duty is assigned to additional electric calipers rather than the hydraulic service calipers, with the EPB controller included. Wilwood Engineering designs and manufactures the disc brake systems and components used throughout its motorsport, street-performance and specialized product range. Bill Wood established Wilwood in 1977, and the company is based in Camarillo, California. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings are selected according to the demands of the whole brake installation.

Technical Details

• Manufacturer part number: 140-18045-DR
• Service calipers: Forged Narrow Superlite 4R; 4 pistons; radial mount; Red Powder Coat
• Brake rotors: 14.00 x 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted; vented construction
• Pads: BP-10; piston material: Stainless
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 5 x 5 in; 5 x 127 mm; match the installed hub/axle pattern
• Housing/flange application: 88-98 C1500
• Required axle offset: 3.25 in; 82.55 mm
• Parking equipment: separate electric calipers, controller and harness included
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 18-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel
• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

The 1988–1998 Chevrolet/GMC C1500 applications below have configuration-specific limits, including five-lug 4x2 trucks and vehicles using Wilwood Iron ProSpindles. Verify the rear flange, 3.25-inch axle offset and 5 x 5-inch pattern; a year/model match alone is insufficient.

The 14-inch brake package requires a wheel-template check even where an 18-inch wheel is used. Axle preparation must meet the 6.61-inch maximum flange diameter, 0.050-inch x 45-degree chamfer and 3.09-inch register shown in the instructions.

Confirm the applicable vehicle entry and all numbered notes in the fitment table below.

The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Ask PMB Performance to help confirm the configuration before ordering if the vehicle has modified brakes or running gear. We have over 20 years of experience with parts and fitment; a VIN plus the installed component details gives us the best starting point.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
