Wilwood Rear 12.88-Inch SRP Conversion for C1500 (1988–1998), Black Superlite & Electric Parking Brakes

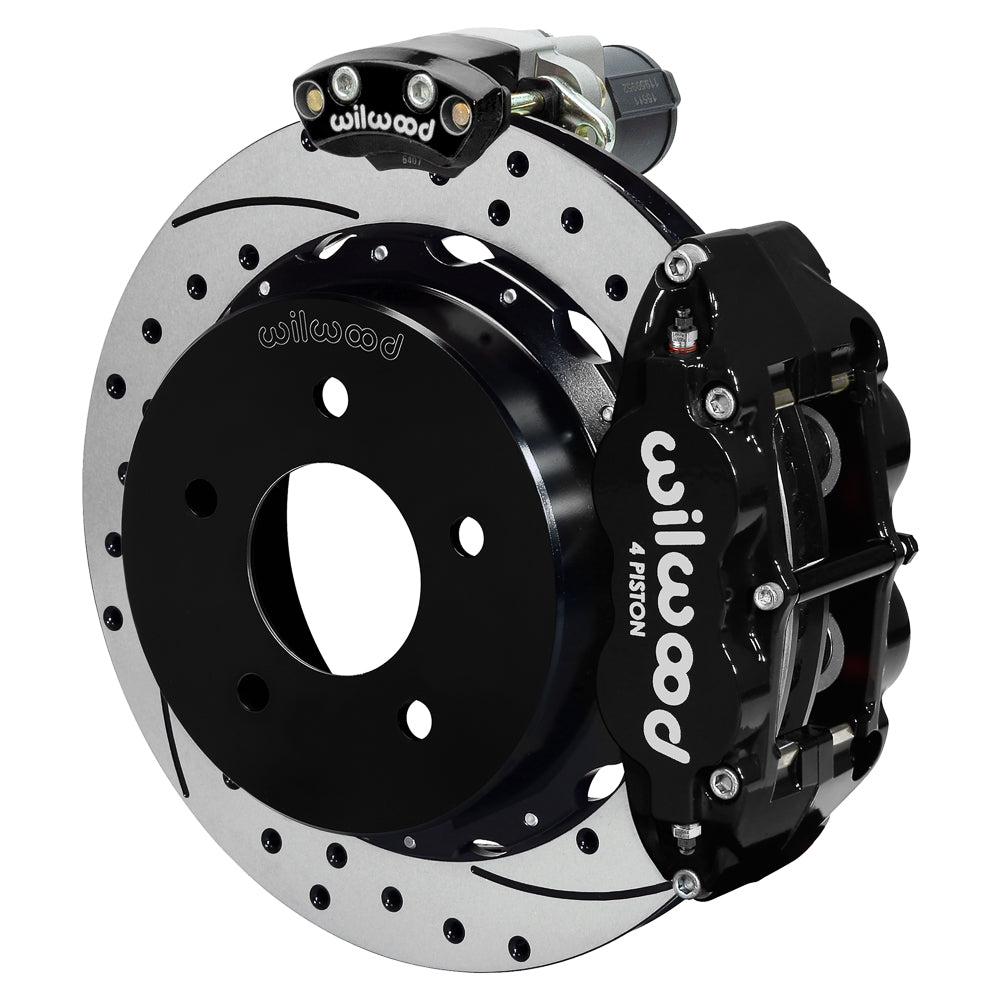

Black FNSL4R calipers and drilled/slotted 12.88-inch SRP rotors define this C1500 rear brake package. Its EPB system replaces cable actuation with dedicated electric parking calipers, so installation includes both hydraulic plumbing and electrical wiring. Wilwood Engineering’s disc brake systems and components serve motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977; it is based in Camarillo, California. Wilwood designs and manufactures brake rotors and calipers as well as master cylinders, valves, brake lines and fittings. Selecting compatible components is essential to the complete system.

Technical Details

• Manufacturer part number: 140-18044-D
• Rotor specification: Spec-37 Iron, SRP Drilled & Slotted, vented; 12.88 x 1.10 inches
• Caliper specification: 4-piston Forged Narrow Superlite 4R in Black Powder Coat; radial mount
• Included service pad compound: BP-10; Stainless pistons
• Caliper body material: Forged aluminum
• Hydraulic inlet: 1/8-27 NPT
• Rotor/hat wheel-stud clearance pattern(s): 5 x 5 in; 5 x 127 mm; match the installed hub/axle pattern
• Housing/flange application: 88-98 C1500
• Required axle offset: 3.25 in; 82.55 mm
• Parking equipment: separate electric calipers, controller and harness included
• Hydraulic brake hoses: not included; select the correct application-specific lines/fittings
• Wheel clearance: 17-inch wheels may fit; verify the manufacturer’s complete caliper/rotor template for the installed wheel

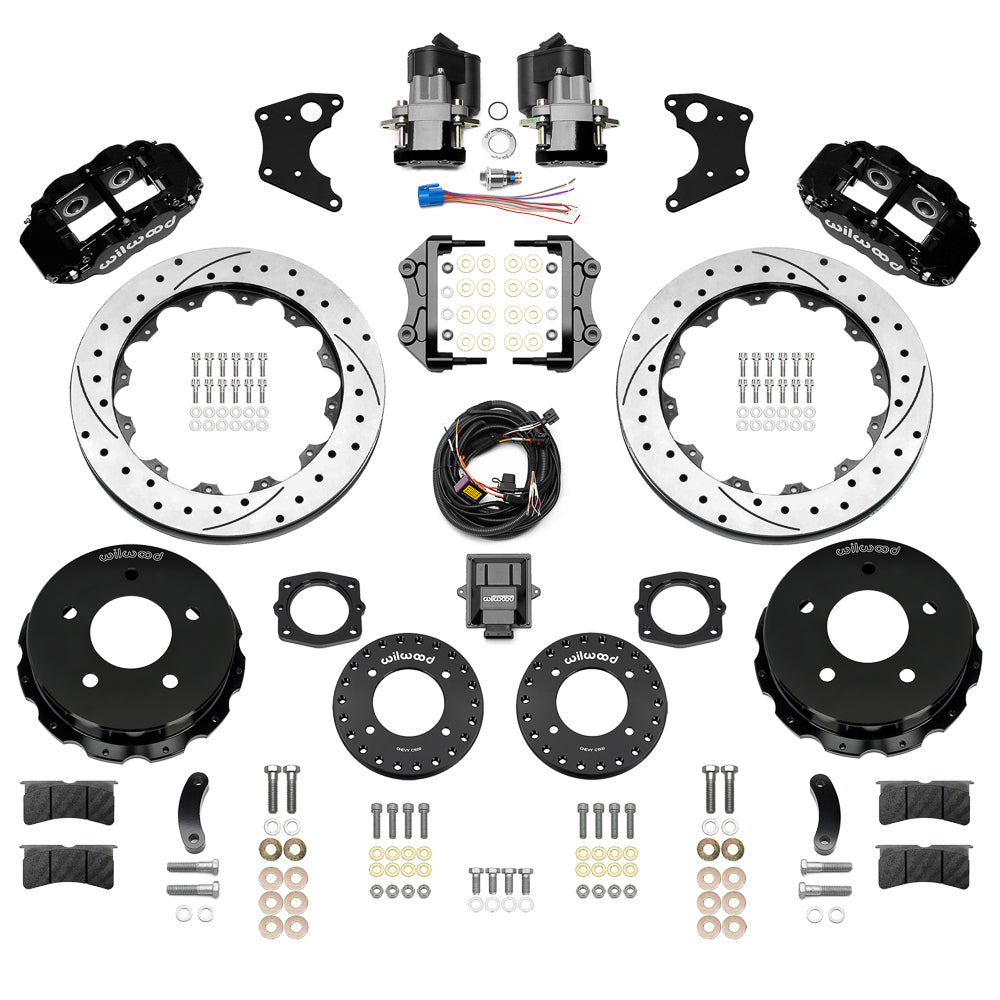

• Supplied as one kit with mounting hardware; spindles, hubs, master cylinder and booster are not included

Fitment & Compatibility

For the listed Chevrolet and GMC C1500 pickups with the specified five-lug, two-wheel-drive configuration or Wilwood Iron ProSpindles. Match the 1988–1991 front-brake/F44 distinctions and later applications in the table; the rear housing must have a 3.25-inch axle offset and 5 x 5-inch wheel pattern.

For the 12.88-inch Superlite/EPB assembly, compare the C1500 rear axle with DS1634: a 6.61-inch maximum flange diameter, 0.050-inch x 45-degree chamfer and 3.09-inch register are specified. Table entries that distinguish trucks by front rotor width still describe a rear-kit application here. Select suitable hydraulic hoses separately, and check clearance around both rear calipers using the wheel diagram.

Check the complete application table below, including its model-year splits and configuration notes.

The electric parking brake is for stationary parking, not an emergency-stop brake. Applying it while the vehicle is moving can lock the rear wheels and cause a skid. Follow the wiring and holding-test procedures in the manufacturer’s instructions.

Manufacturer Resources

• Exact Wilwood kit specifications and wheel-clearance information
• Installation instructions and component list
• Axle-offset measurement worksheet

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

For fitment help, contact PMB Performance with your VIN and details of any axle, spindle or brake changes. Our team has over 20 years of experience checking parts and fitment, including the dimensions that a model-year search cannot establish.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
