Wilwood Red Dynalite Rear Caliper and Plain Rotor Kit with Electronic Parking, Chevrolet and GMC C1500 Pickup (1988–1998)

Fit plain rear rotors, red service calipers and electric parking to listed Chevrolet and GMC C1500 Pickup axles. Confirm offset, wheel space and wiring. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood, the company produces calipers, brake rotors, master cylinders, valves, fittings and brake lines. Component selection depends on the requirements of the complete braking system.

Technical Details

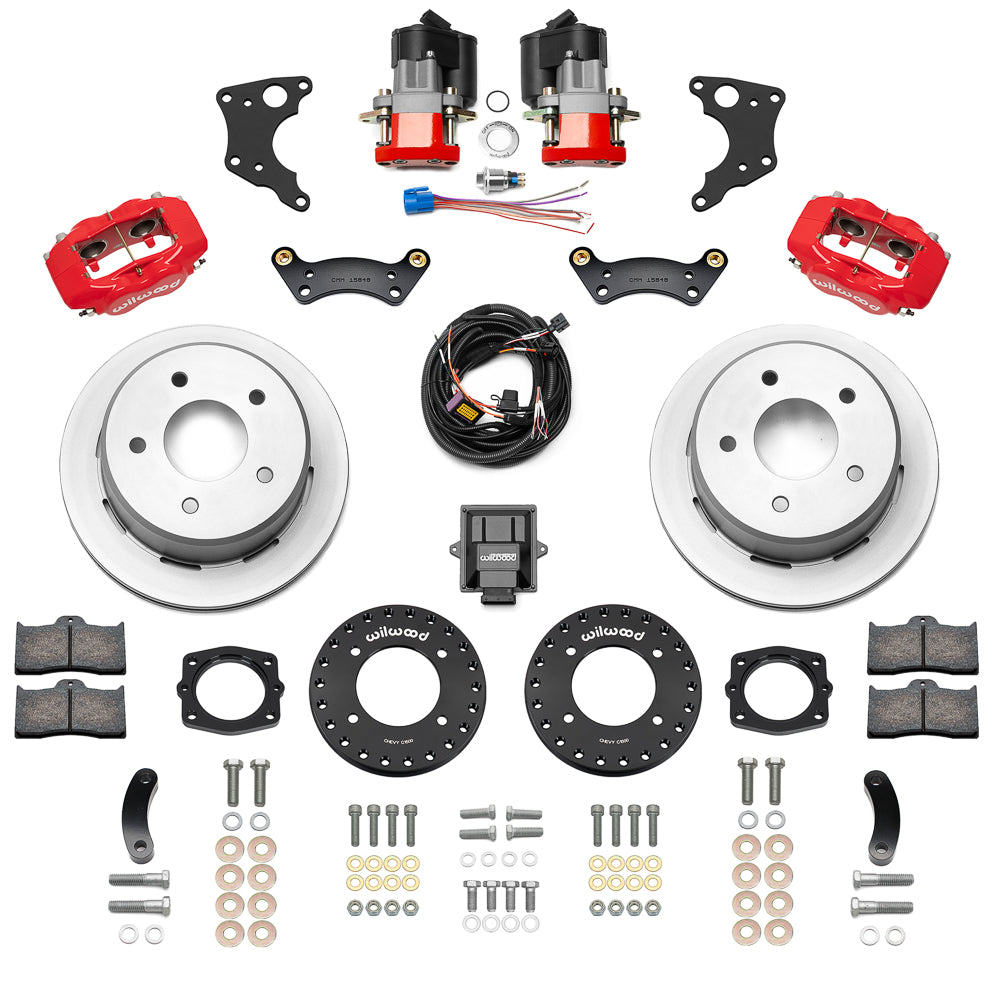

• Brake assembly: rear conversion kit; Sold as a kit.

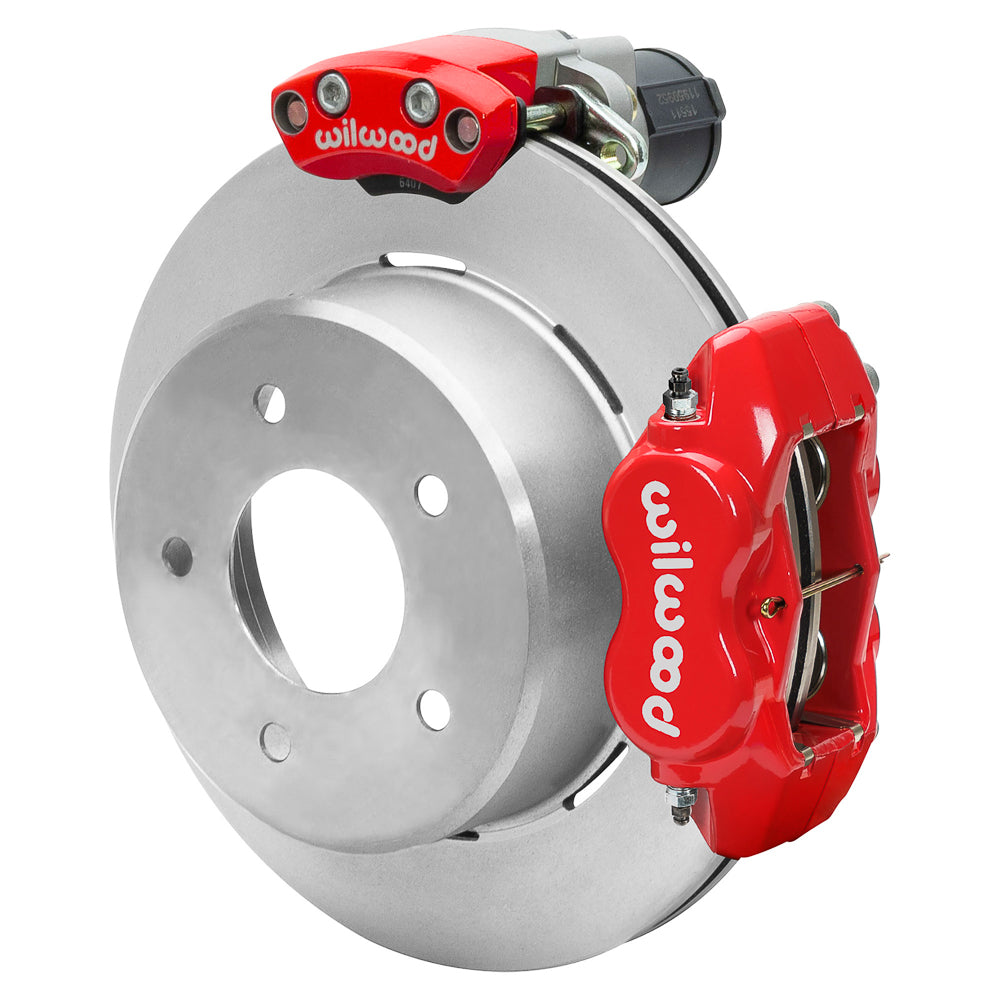

• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat
• Caliper mounting: Lug
• Included pad compound: BP-10
• Piston material: Stainless
• Hydraulic caliper inlet: 1/8-27 NPT
• Rotor dimensions and construction: 12.19 × 0.81 inches; Iron; Plain Face
• Wheel-size reference: 15 in; the complete wheel-clearance drawing determines fit
• Axle mounting interface: 88-98 C1500; measured axle offset 3.25 in
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Electronic parking controls: Controller, switch and wiring harness included; retain the supplied 40-amp fuse in the primary 12V positive circuit
• Parking use: Static holding only; not an emergency stopping brake; retain separate hydraulic service braking
• Manufacturer part number: 140-18043-R

Fitment & Compatibility

Applies to the listed 1988–1998 Chevrolet and GMC C1500 Pickup five-lug, two-wheel-drive axle configurations with a measured 3.25-inch offset. The table below distinguishes the early front-brake/chassis options and later five-lug versions; an Iron ProSpindle entry does not replace the rear-axle checks. Compare axle-flange registration, housing ends and wheel clearance before ordering. Electronic parking is independent of the hydraulic service calipers. Install the controller, switch, ground, accessory feed and fused 12V battery supply to DS-1353; this system is for parking, not emergency stops. Suitable hydraulic flexlines are required separately.

Wilwood product specifications · Wilwood installation and compatibility information · Axle measurement worksheet · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the actual housing flange, axle offset, rotor registration and parking or hydraulic arrangement. We have over 20 years of experience working through parts and fitment details.
