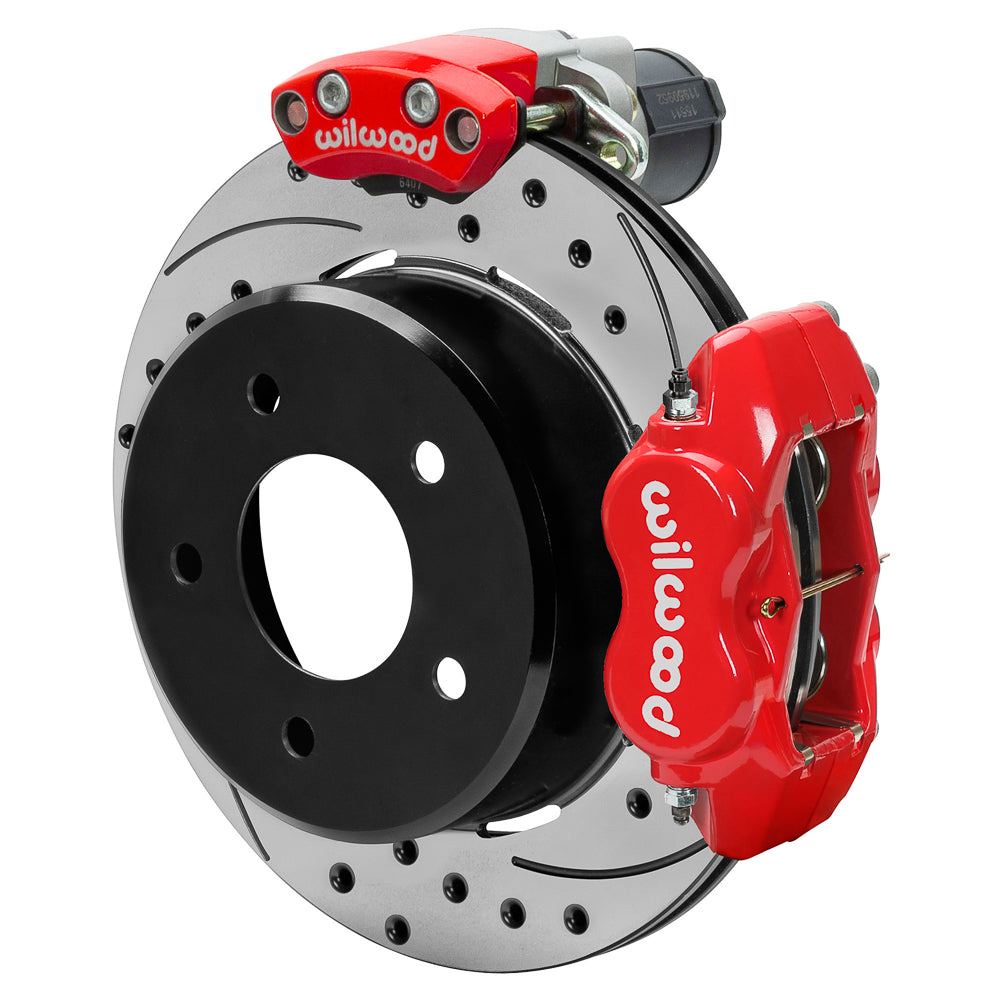

Wilwood Chevrolet and GMC C1500 Pickup Rear Disc Kit, Red Calipers, Drilled Rotors and Electronic Parking (1988–1998)

Red Dynalite rear brakes for Chevrolet and GMC C1500 Pickup include separate electric parking calipers. Check five-lug mounting and 3.25-inch offset. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its product range includes brake rotors, calipers, master cylinders, valves, fittings and brake lines, selected individually to match the complete brake system.

Technical Details

• Electronic parking controls: Controller, switch and wiring harness included; retain the supplied 40-amp fuse in the primary 12V positive circuit
• Parking use: Static holding only; not an emergency stopping brake; retain separate hydraulic service braking
• Manufacturer identification: 140-18043-DR

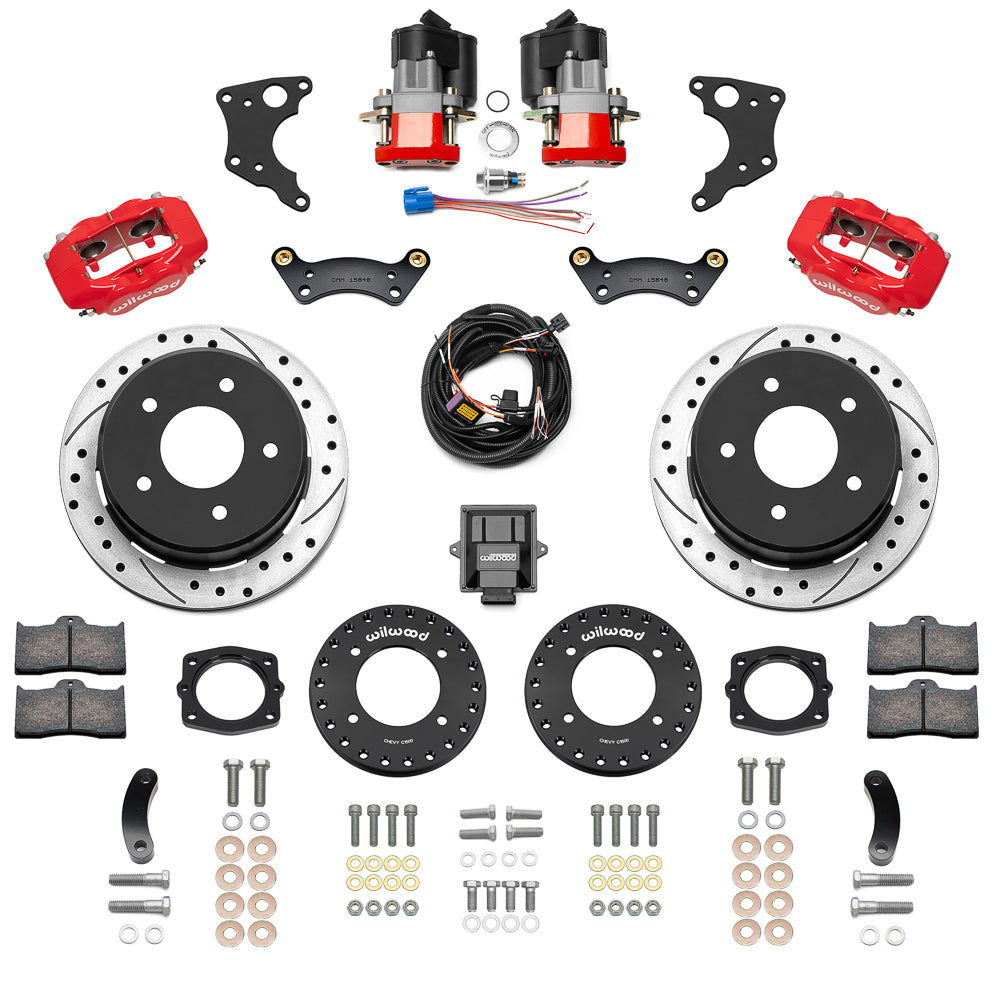

• Application and supplied quantity: rear conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat
• Caliper attachment: Lug
• Brake pads supplied: BP-10
• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT
• Rotor assembly specification: 12.19 × 0.81 inches; Iron; SRP Drilled & Slotted
• Wheel envelope: 15 in; the complete wheel-clearance drawing determines fit
• Rear housing interface: 88-98 C1500; measured axle offset 3.25 in
• Rotor attachment pattern: 5 x 5 in; 5 x 127 mm; verify the retained hub or axle flange separately
• Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster

Fitment & Compatibility

Applies to the listed 1988–1998 Chevrolet and GMC C1500 Pickup five-lug, two-wheel-drive axle configurations with a measured 3.25-inch offset. The table below distinguishes the early front-brake/chassis options and later five-lug versions; an Iron ProSpindle entry does not replace the rear-axle checks. Compare axle-flange registration, housing ends and wheel clearance before ordering. Electronic parking is independent of the hydraulic service calipers. Install the controller, switch, ground, accessory feed and fused 12V battery supply to DS-1353; this system is for parking, not emergency stops. Suitable hydraulic flexlines are required separately.

Wilwood product specifications · Wilwood installation and compatibility information · Axle measurement worksheet · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the actual housing flange, axle offset, rotor registration and parking or hydraulic arrangement for that review.
