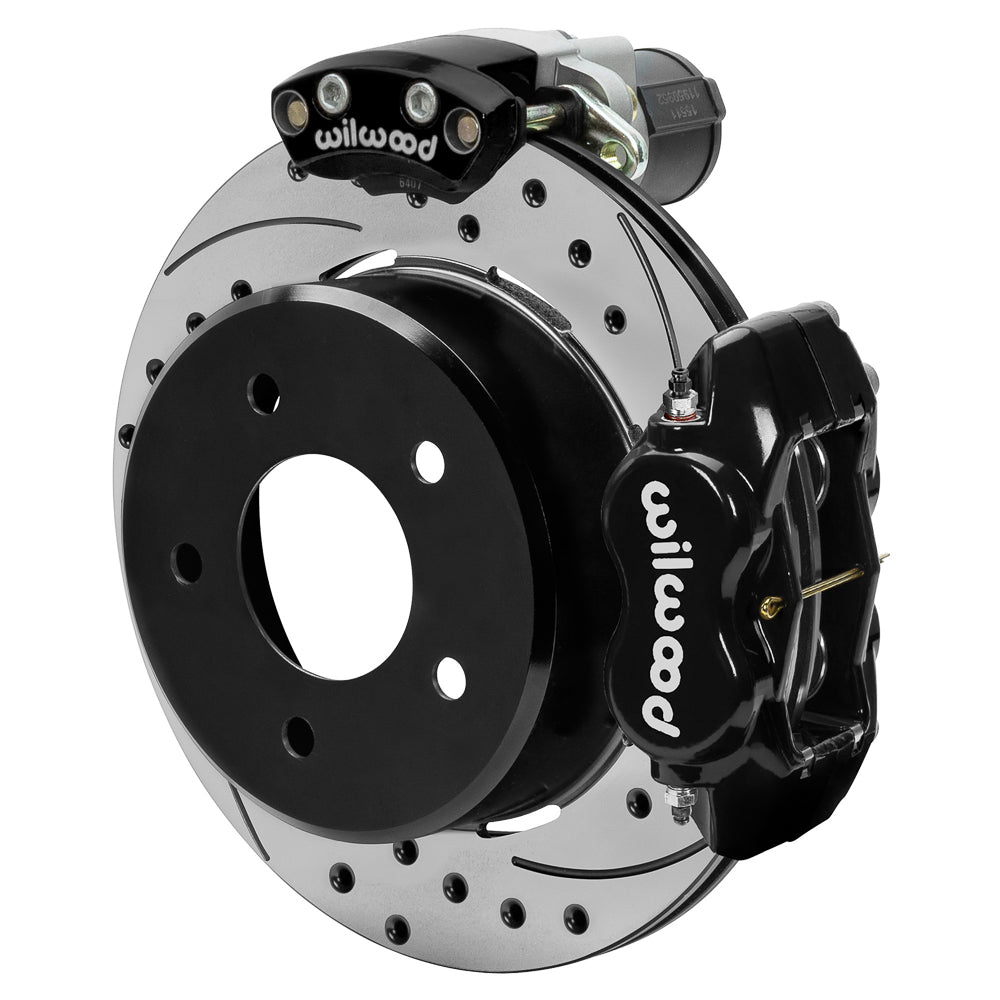

Wilwood Black Dynalite Rear Brake and EPB Conversion with 12.19-Inch SRP Rotors, Chevrolet and GMC C1500 Pickup (1988–1998)

Drilled rear rotors, black service calipers and electric parking suit specified Chevrolet and GMC C1500 Pickup axles. Verify offset and fused wiring. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized applications require individual components matched to the complete brake system.

Technical Details

• Included pad compound: BP-10
• Piston material: Stainless
• Hydraulic caliper inlet: 1/8-27 NPT
• Rotor dimensions and construction: 12.19 × 0.81 inches; Iron; SRP Drilled & Slotted
• Wheel-size reference: 15 in; the complete wheel-clearance drawing determines fit
• Axle mounting interface: 88-98 C1500; measured axle offset 3.25 in
• Rotor / hat mounting drilling: 5 x 5 in; 5 x 127 mm; verify the retained hub or axle flange separately
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Electronic parking controls: Controller, switch and wiring harness included; retain the supplied 40-amp fuse in the primary 12V positive circuit
• Parking use: Static holding only; not an emergency stopping brake; retain separate hydraulic service braking
• Manufacturer part number: 140-18043-D

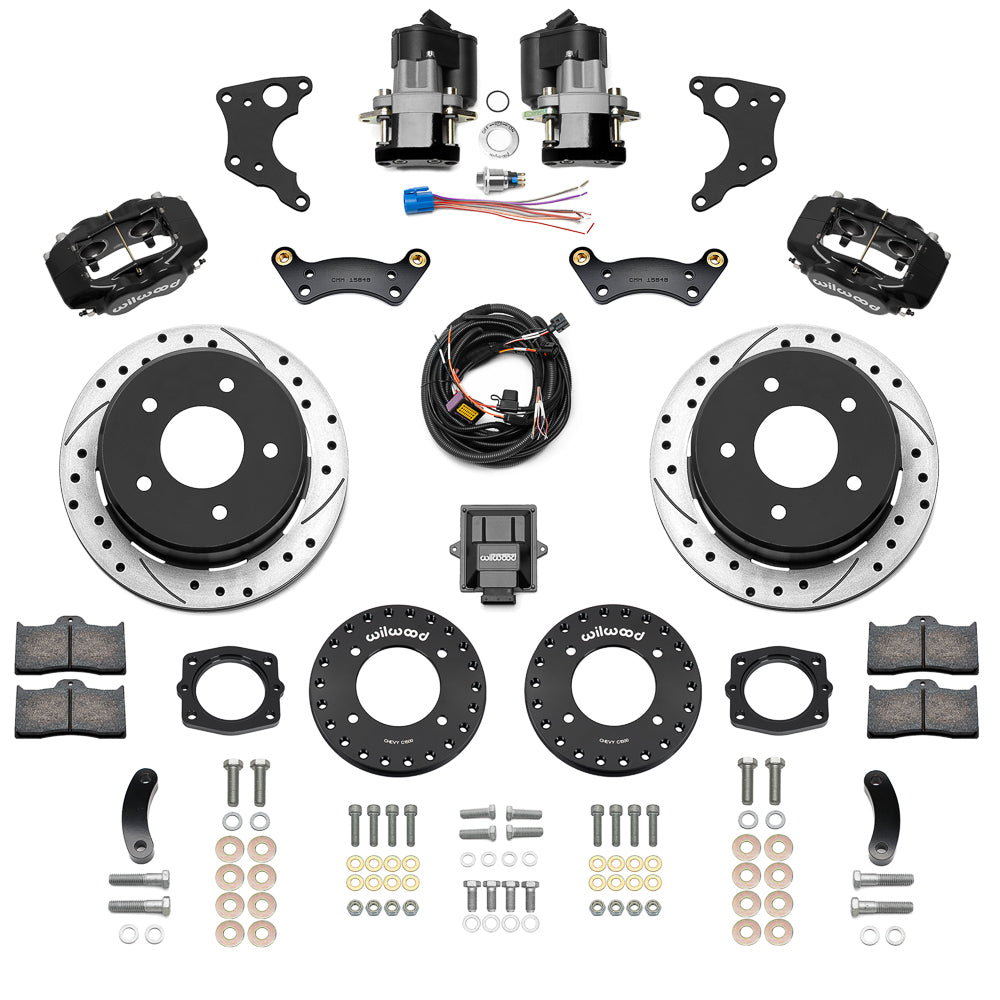

• Brake assembly: rear conversion kit; Sold as a kit.
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Black Powder Coat
• Caliper mounting: Lug

Fitment & Compatibility

Applies to the listed 1988–1998 Chevrolet and GMC C1500 Pickup five-lug, two-wheel-drive axle configurations with a measured 3.25-inch offset. The table below distinguishes the early front-brake/chassis options and later five-lug versions; an Iron ProSpindle entry does not replace the rear-axle checks. Compare axle-flange registration, housing ends and wheel clearance before ordering. Electronic parking is independent of the hydraulic service calipers. Install the controller, switch, ground, accessory feed and fused 12V battery supply to DS-1353; this system is for parking, not emergency stops. Suitable hydraulic flexlines are required separately.

Wilwood product specifications · Wilwood installation and compatibility information · Axle measurement worksheet · Wilwood installation and compatibility information

Before purchase, send PMB Performance the actual housing flange, axle offset, rotor registration and parking or hydraulic arrangement. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
