Product details

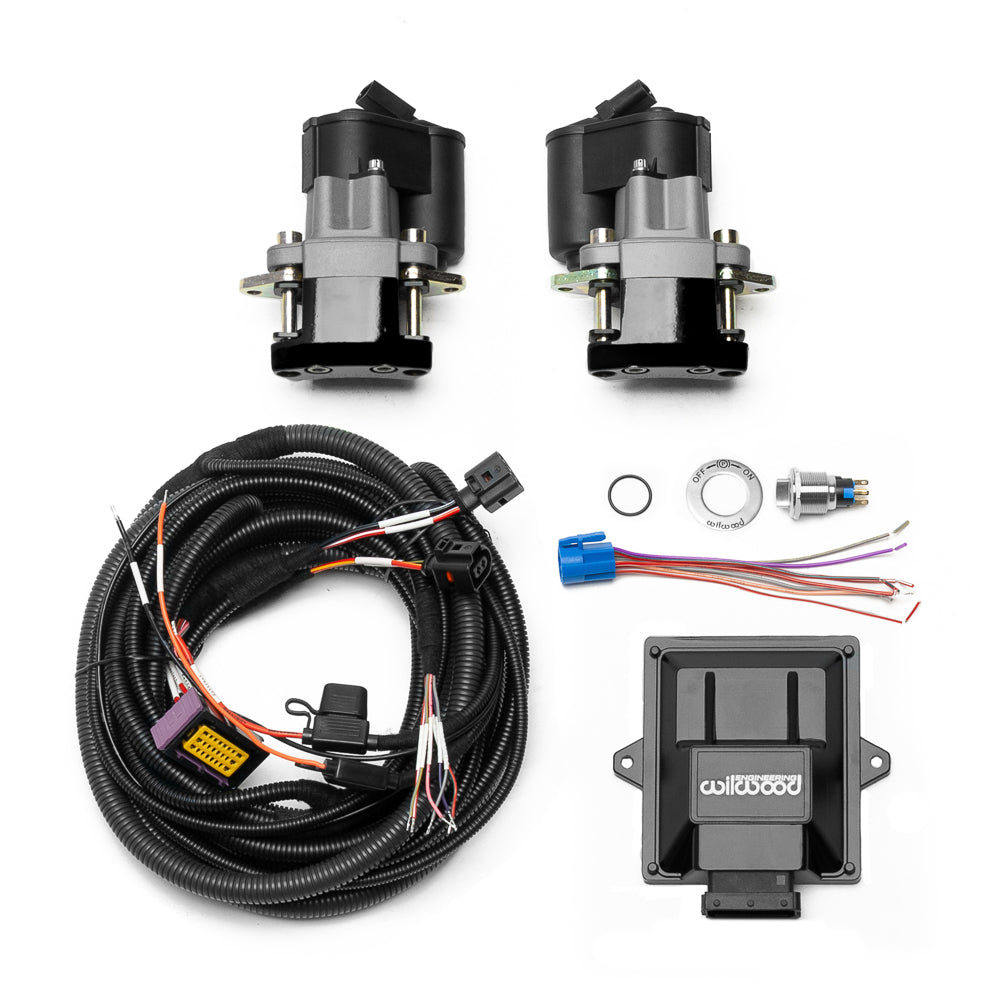

Black Wilwood rear parking calipers include controls and wiring. Confirm the permitted rotor-width range with Wilwood before fabricating brackets. This is a separate static-parking system for a custom installation, not a complete service-brake conversion. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems along with calipers, rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications each call for components matched to the overall braking arrangement.
Technical Details
- Electronic parking controls: Controller, switch and wiring harness included; retain the supplied 40-amp fuse in the primary 12V positive circuit
- Parking use: Static holding only; not an emergency stopping brake; retain separate hydraulic service braking
- Nominal mating rotor width: 0.62 inch; this is rotor thickness, not rotor diameter; no rotors supplied
- Caliper mounting envelope: 4.75-inch lug-mount centers; nominal rotor diameter envelope 11–14 inches; verify custom bracket geometry
- Manufacturer part number: 140-18031-BK
- Brake assembly: rear conversion kit; Sold as a kit.
- Parking calipers: Electronic Parking Brake; 1 piston per caliper; Black Powder Coat
- Caliper mounting: Lug
- Included pad compound: BP-10
- Piston material: Steel
- Mounting hardware: Included; verify the installed fastener engagement
- Not included: brake rotors, vehicle-specific mounting brackets, hydraulic service brakes
Fitment & Compatibility
The black calipers in this universal rear retrofit are catalogued for nominal 0.62-inch rotor width, but the manufacturer dimensional limits must be confirmed before a bracket is fabricated. Check the selected 16980/16981 calipers, 4.75-inch mount centers, rotor sweep and full wheel envelope. The kit includes the controller, switch and harness; vehicle-specific brackets, rotors and hydraulic service brakes remain separate. DS-1353 requires the primary 12V battery supply to retain its 40-amp fuse, together with a suitable ground and accessory feed. These motors provide static parking only and must not replace hydraulic braking or be used for emergency stops.
Wilwood product specifications · Electronic parking installation · Axle measurement worksheet · Wilwood installation and compatibility information · Caliper specifications · Caliper specifications · Wilwood installation and compatibility information
PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the rotor width, fabricated bracket dimensions and parking-control installation so we can help check the configuration before ordering.
