Wilwood Can-Am Maverick R / R X / R X RS / R X RS Smart-Shox Rear Race Brake Kit, Anodized NDPR Calipers and BP-28 Pads (2024)

Rear race brakes for Maverick R, R X, R X RS and R X RS Smart-Shox use anodized NDPR calipers and BP-28 pads. Check six-lug hubs and rock-guard removal. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Camarillo, California, is home to Wilwood Engineering, the disc-brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including master cylinders, calipers, rotors, valves, fittings and brake lines. Those parts serve motorsport, street-performance and specialized uses and must be selected as part of the complete brake system.

Technical Details

• Supplied installation fasteners: Included; verify the installed fastener engagement
• Components outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Wilwood manufacturer number: 140-18029

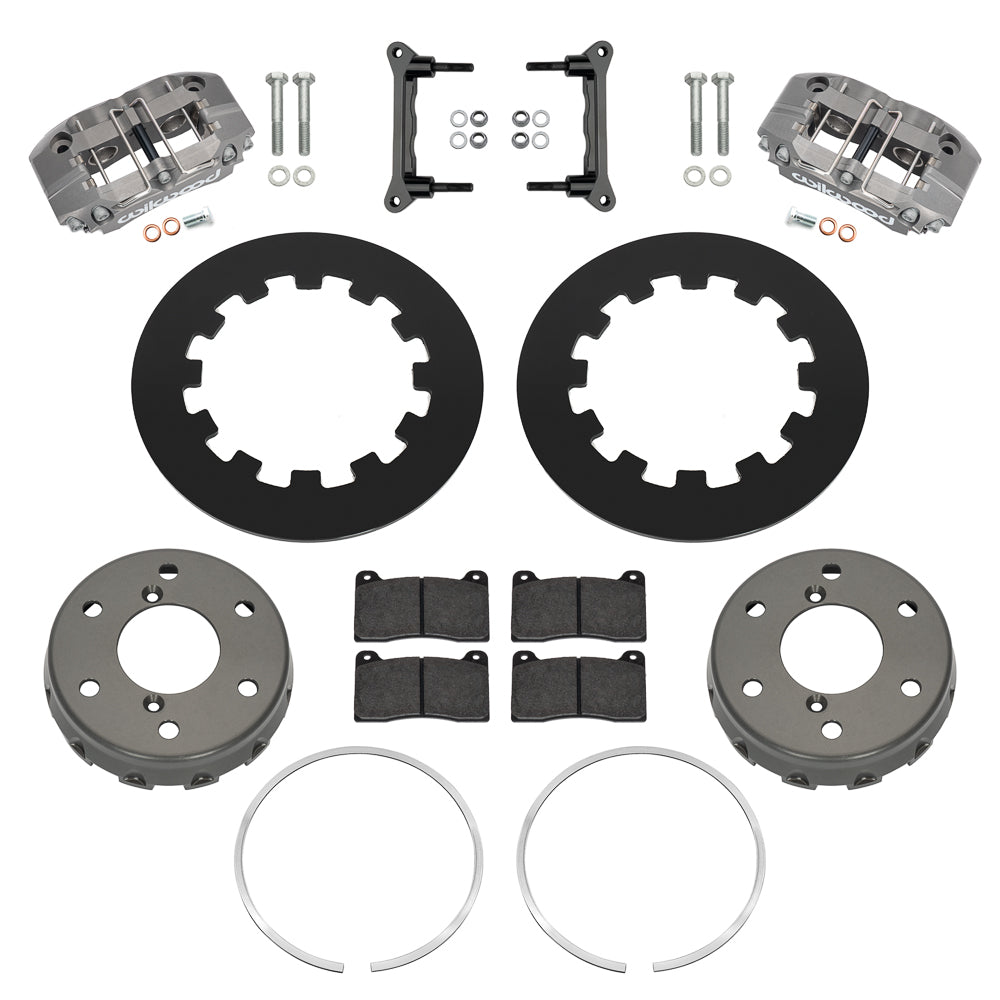

• Kit function and position: rear conversion kit; Sold as a kit.
• Caliper family, piston count and finish: NDPR; 4 pistons per caliper; Type III Anodize
• Mount arrangement: Radial
• Supplied brake-pad material: BP-28
• Caliper piston construction: Stainless
• Caliper fluid connection: M10 x 1.25
• Rotor diameter, width, material and face: 11.60 × 0.25 inches; Steel; Plain Face
• Nominal wheel diameter starting point: 15 in; the complete wheel-clearance drawing determines fit
• Hat drilling for retained axle flange: 6 x 5.50 inches; this does not change the retained hub or axle wheel pattern
• Brake-hose provision: Not included; supply suitable hoses and fittings separately

Fitment & Compatibility

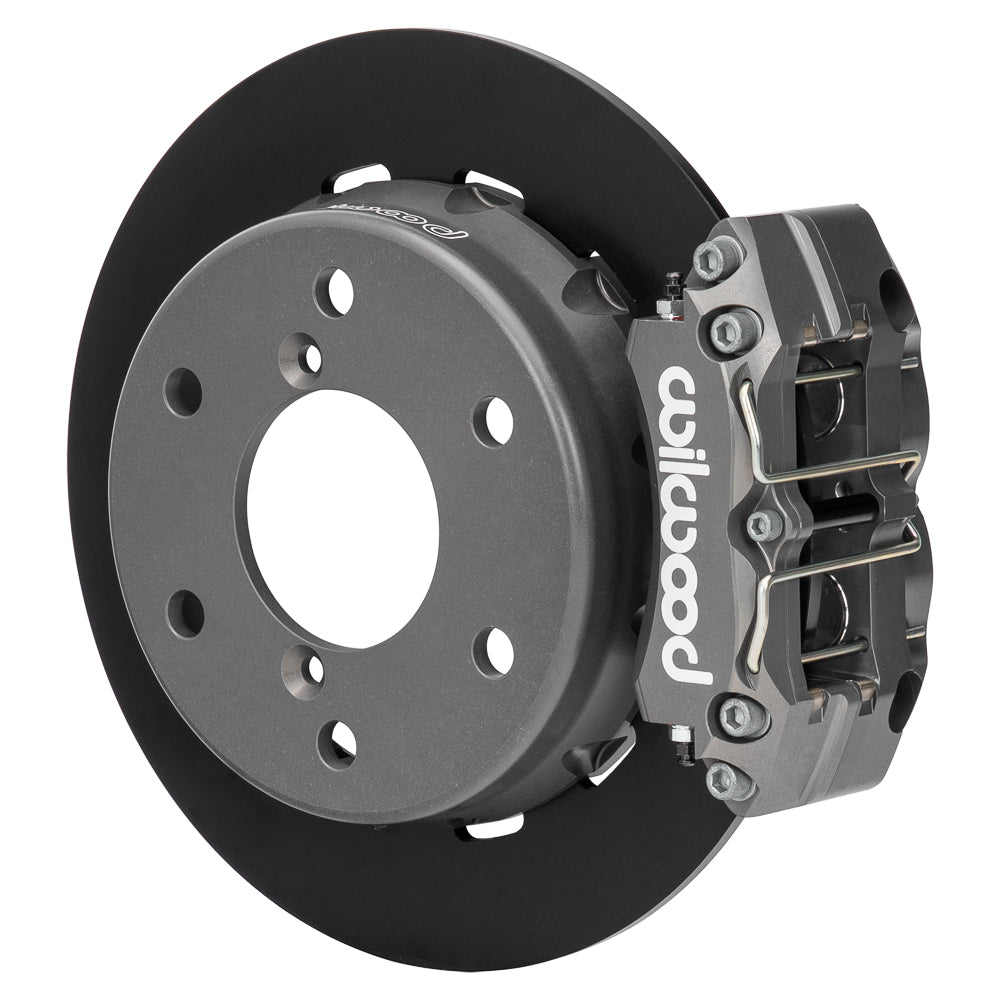

This rear race configuration uses anodized NDPR calipers, BP-28 pads and plain 11.60 × 0.25-inch steel rotors on the listed 2024 Can-Am Maverick R, R X, R X RS and R X RS Smart-Shox six-lug hubs. Remove the factory rear rock guard as required by DS-1626 before fitting the larger assembly. Confirm rotor registration, lug-drive retention and suspension clearance at each rear corner. Use the complete wheel template rather than assuming every 15-inch wheel clears the caliper. Use the fitment table below to confirm the listed model variants and production years.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.
