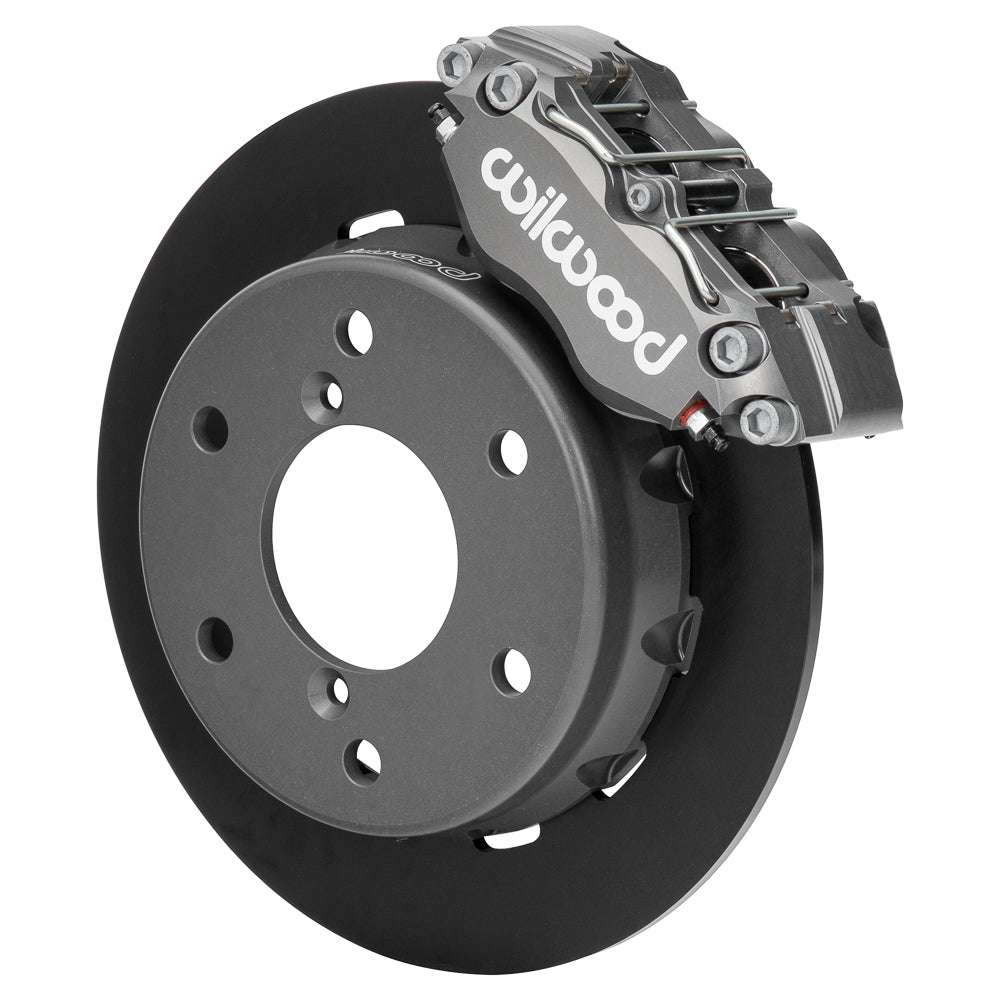

Wilwood Front NDPR Race Brake Kit, Type III Anodized Calipers and BP-28 Pads, Can-Am Maverick R / R X / R X RS / R X RS Smart-Shox (2024)

Anodized NDPR front race brakes serve Maverick R, R X, R X RS and R X RS Smart-Shox. Match six-lug hubs, 11.60-inch rotors and steering-stop clearance. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Camarillo, California, is home to Wilwood Engineering, the disc-brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including master cylinders, calipers, rotors, valves, fittings and brake lines. Those parts serve motorsport, street-performance and specialized uses and must be selected as part of the complete brake system.

Technical Details

• Included pad compound: BP-28
• Piston material: Stainless
• Hydraulic caliper inlet: M10 x 1.25
• Rotor dimensions and construction: 11.60 × 0.25 inches; Steel; Plain Face
• Wheel-size reference: 15 in; the complete wheel-clearance drawing determines fit
• Rotor / hat axle-flange drilling: 6 x 5.50 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-18028

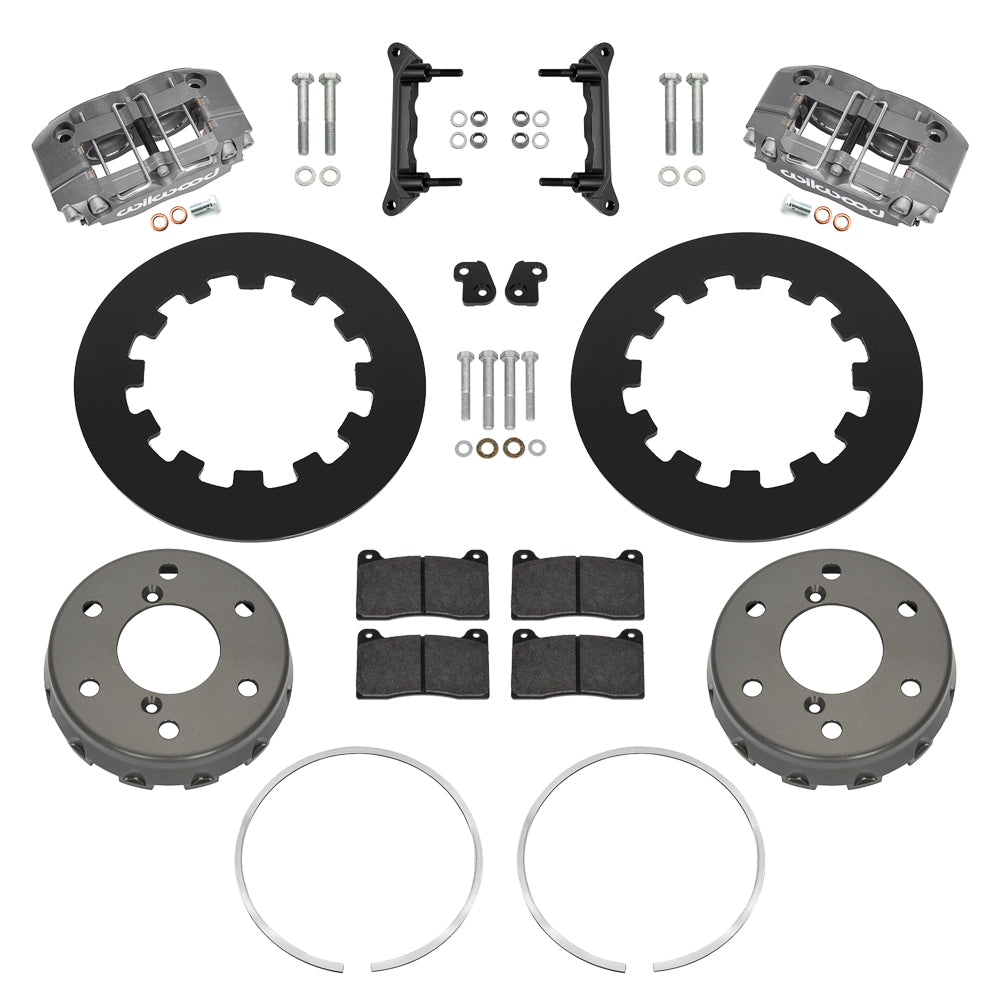

• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: NDPR; 4 pistons per caliper; Type III Anodize
• Caliper mounting: Radial

Fitment & Compatibility

For the listed 2024 Can-Am Maverick R, Maverick R X, Maverick R X RS and Maverick R X RS Smart-Shox six-lug applications. The brake rotor measures 11.60 × 0.25 inches. DS-1625 requires modifying the factory steering stop near the lower ball joint and installing the supplied new stop bracket. Check steering lock and brake clearance after that work. Compare the complete NDPR wheel template with the actual wheel; a 15-inch nominal diameter does not guarantee clearance. This version has Type III anodized calipers and BP-28 pads; the supplied rotor face is plain as shown in the kit and installation document. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.
