Product details

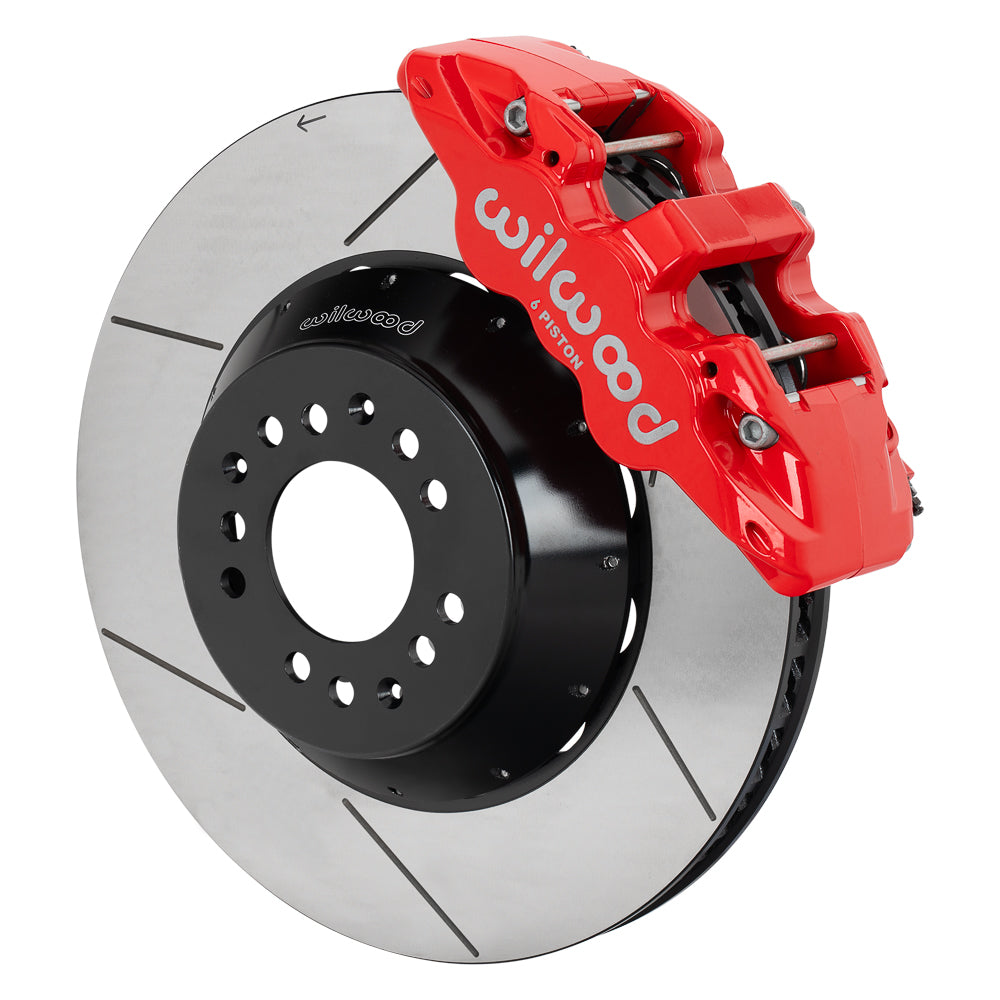

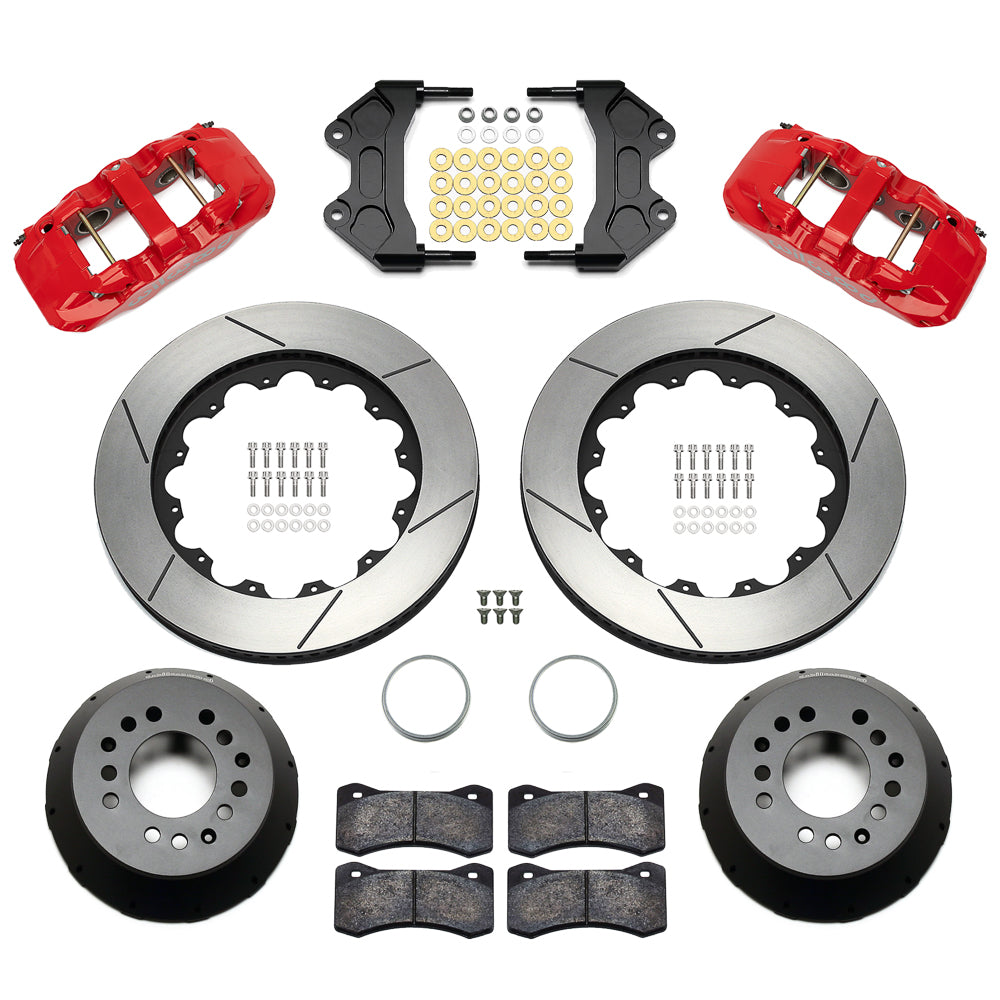

Slotted 15-inch front rotors and red AERO6 calipers form this ProSpindle brake package. Match the separate spindle and hub kit to the wheel profile. These brake components attach to the separately supplied aluminum ProSpindle and sealed hub assembly. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized applications require individual components matched to the complete brake system.
Technical Details
- Hydraulic service-caliper specification: AERO6; 6 pistons per caliper; Red Powder Coat
- Caliper attachment: Radial
- Brake pads supplied: BP-10
- Piston type: Stainless
- Service-caliper port: 1/8-27 NPT
- Rotor assembly specification: 15.00 × 1.25 inches; Spec-37 Iron; GT Slotted
- Wheel envelope: 19 in; the complete wheel-clearance drawing determines fit
- Required separate assembly: Wilwood aluminum ProSpindle sealed-hub kit 830-17728; brake kit does not include the spindle or hub
- Hat mounting pattern: 5 × 4.50 / 4.75 inches; verify the mating ProSpindle hub and wheel arrangement
- Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
- Hardware provision: Included; verify the installed fastener engagement
- Not included: spindles, wheel hubs, master cylinder or brake booster
- Manufacturer identification: 140-17988-R
- Application and supplied quantity: front conversion kit; Sold as a kit.
Fitment & Compatibility
The 15.00 × 1.25-inch AERO6 package is the large-rotor selection for Wilwood aluminum ProSpindle sealed-hub kit 830-17728. Purchase that spindle/hub assembly separately and compare the complete rotor/caliper envelope in DS-1623 with the actual wheel. The documented hat uses a 1.75-inch component offset and 5 × 4.50/4.75-inch drilling. Check rotor registration, steering-arm geometry and fastener engagement. Supply compatible hydraulic hoses; this configuration is not established by a generic Mustang II suspension description. The front-steer arm supplied with the separate ProSpindle kit does not establish correct rear-steer geometry; rear-steer arrangements require application-specific steering arms.
Wilwood installation and compatibility information · ProSpindle kit configurations
For help matching the brake assembly, contact PMB Performance with the ProSpindle identification, hub configuration and actual wheel measurements. We have over 20 years of experience working through parts and fitment details.
