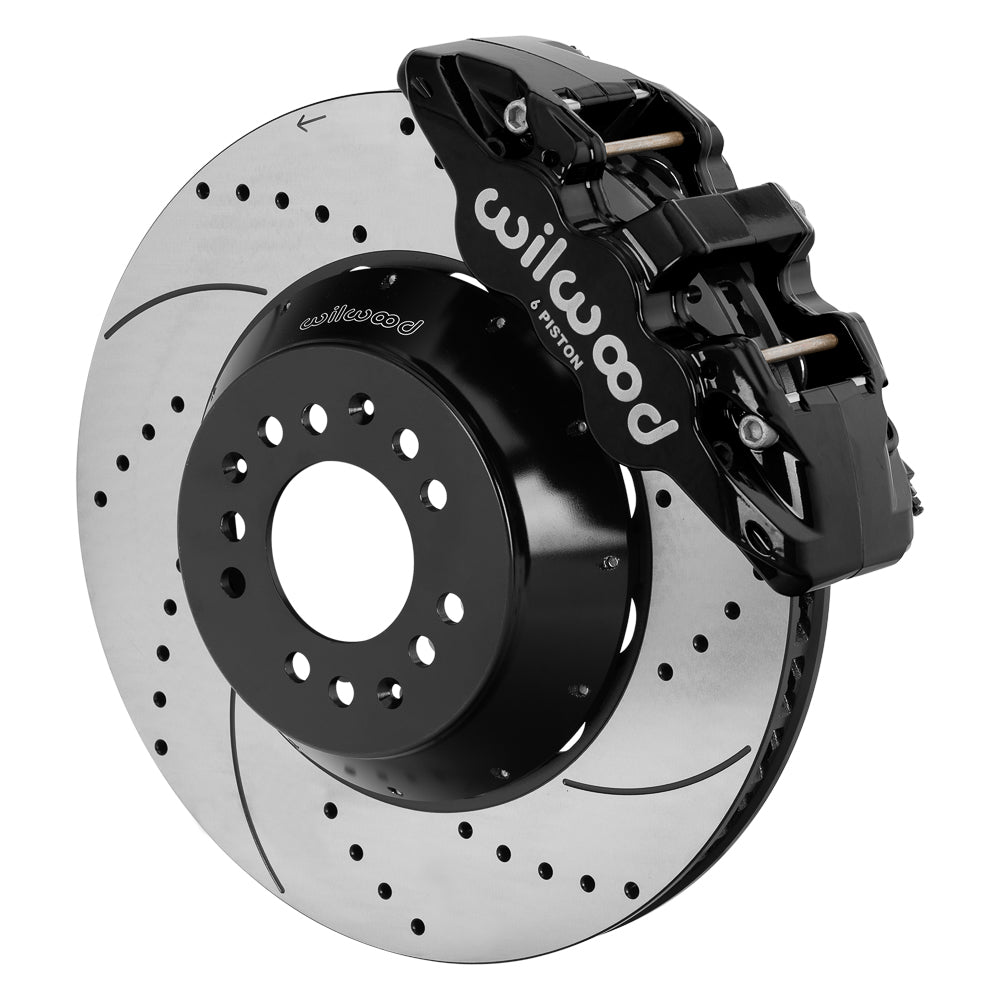

Wilwood Black AERO6 Front Disc Package with 15-Inch Drilled Rotors, Aluminum ProSpindle Mounting

Black six-piston AERO6 front brakes and 15-inch SRP rotors suit the specified ProSpindle assembly. Verify spindle hardware, hub alignment and hoses. These brake components attach to the separately supplied aluminum ProSpindle and sealed hub assembly. Camarillo, California, is home to Wilwood Engineering, the disc-brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including master cylinders, calipers, rotors, valves, fittings and brake lines. Those parts serve motorsport, street-performance and specialized uses and must be selected as part of the complete brake system.

Technical Details

• Hat mounting pattern: 5 × 4.50 / 4.75 inches; verify the mating ProSpindle hub and wheel arrangement
• Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17988-D

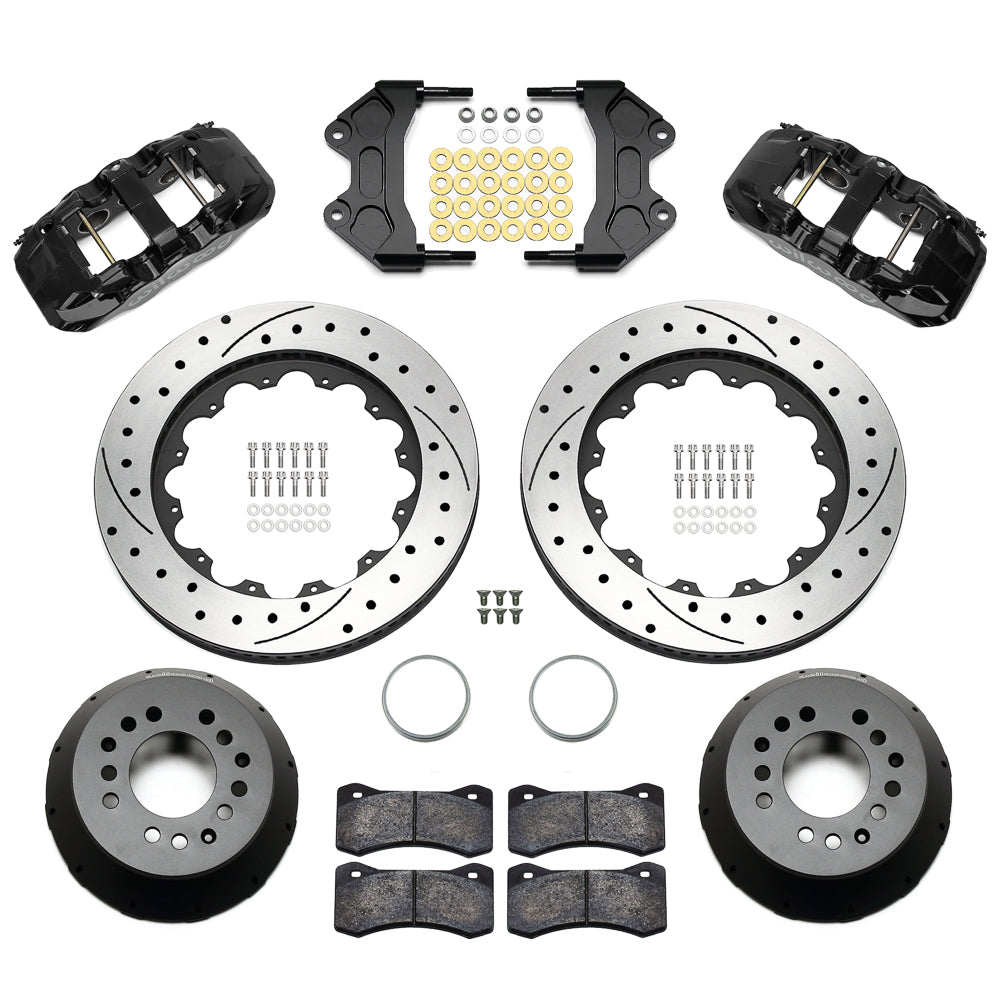

• Application and supplied quantity: front conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: AERO6; 6 pistons per caliper; Black Powder Coat
• Caliper attachment: Radial
• Brake pads supplied: BP-10
• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT
• Rotor assembly specification: 15.00 × 1.25 inches; Spec-37 Iron; SRP Drilled & Slotted
• Wheel envelope: 19 in; the complete wheel-clearance drawing determines fit
• Required separate assembly: Wilwood aluminum ProSpindle sealed-hub kit 830-17728; brake kit does not include the spindle or hub

Fitment & Compatibility

The 15.00 × 1.25-inch AERO6 package is the large-rotor selection for Wilwood aluminum ProSpindle sealed-hub kit 830-17728. Purchase that spindle/hub assembly separately and compare the complete rotor/caliper envelope in DS-1623 with the actual wheel. The documented hat uses a 1.75-inch component offset and 5 × 4.50/4.75-inch drilling. Check rotor registration, steering-arm geometry and fastener engagement. Supply compatible hydraulic hoses; this configuration is not established by a generic Mustang II suspension description. The front-steer arm supplied with the separate ProSpindle kit does not establish correct rear-steer geometry; rear-steer arrangements require application-specific steering arms.

Wilwood installation and compatibility information · ProSpindle kit configurations

Before purchase, send PMB Performance the ProSpindle identification, hub configuration and actual wheel measurements. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
