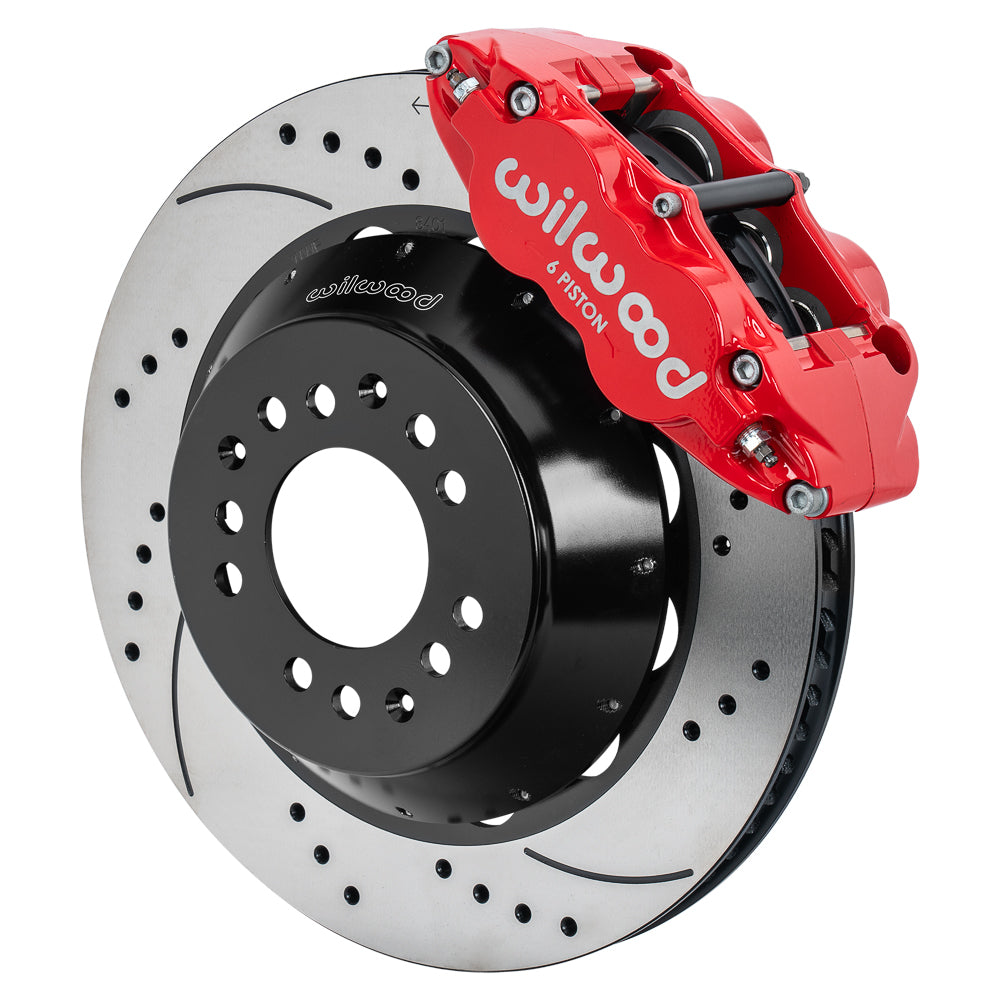

Wilwood Red Superlite Six-Piston Front Brake Kit with 14-Inch Drilled Rotors for Aluminum ProSpindles

Red Superlite front brakes and 14-inch drilled rotors suit the documented aluminum ProSpindle layout. Provide matching hydraulic flexlines separately. These brake components attach to the separately supplied aluminum ProSpindle and sealed hub assembly. Wilwood Engineering was established in 1977 by Bill Wood and is based in Camarillo, California. Disc brake systems and components are its focus, from brake rotors and calipers to master cylinders, valves, brake lines and fittings. Its work spans motorsport, street-performance and specialized applications, with the complete brake system determining the correct individual components.

Technical Details

• Hydraulic caliper inlet: 1/8-27 NPT
• Rotor dimensions and construction: 14.00 × 1.10 inches; Spec-37 Iron; SRP Drilled & Slotted
• Wheel-size reference: 18 in; the complete wheel-clearance drawing determines fit
• Required separate assembly: Wilwood aluminum ProSpindle sealed-hub kit 830-17728; brake kit does not include the spindle or hub
• Hat mounting pattern: 5 × 4.50 / 4.75 inches; verify the mating ProSpindle hub and wheel arrangement
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17986-DR
• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat
• Caliper mounting: Radial
• Included pad compound: BP-10
• Piston material: Stainless

Fitment & Compatibility

For the 14-inch Superlite conversion, use the aluminum Wilwood ProSpindle sealed-hub assembly 830-17728 rather than assuming another Mustang II-style spindle is interchangeable. The separate spindle/hub kit supports the documented 5 × 4.50/4.75-inch rotor-hat interface. DS-1615 identifies the longer caliper studs and additional bracket spacers used by this 14.00 × 1.10-inch package. Verify those components, rotor centering and the complete wheel profile. Hydraulic hoses and any application-specific steering-arm work remain separate. The front-steer arm supplied with the separate ProSpindle kit does not establish correct rear-steer geometry; rear-steer arrangements require application-specific steering arms.

Wilwood installation and compatibility information · ProSpindle kit configurations

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the ProSpindle identification, hub configuration and actual wheel measurements for that review.
