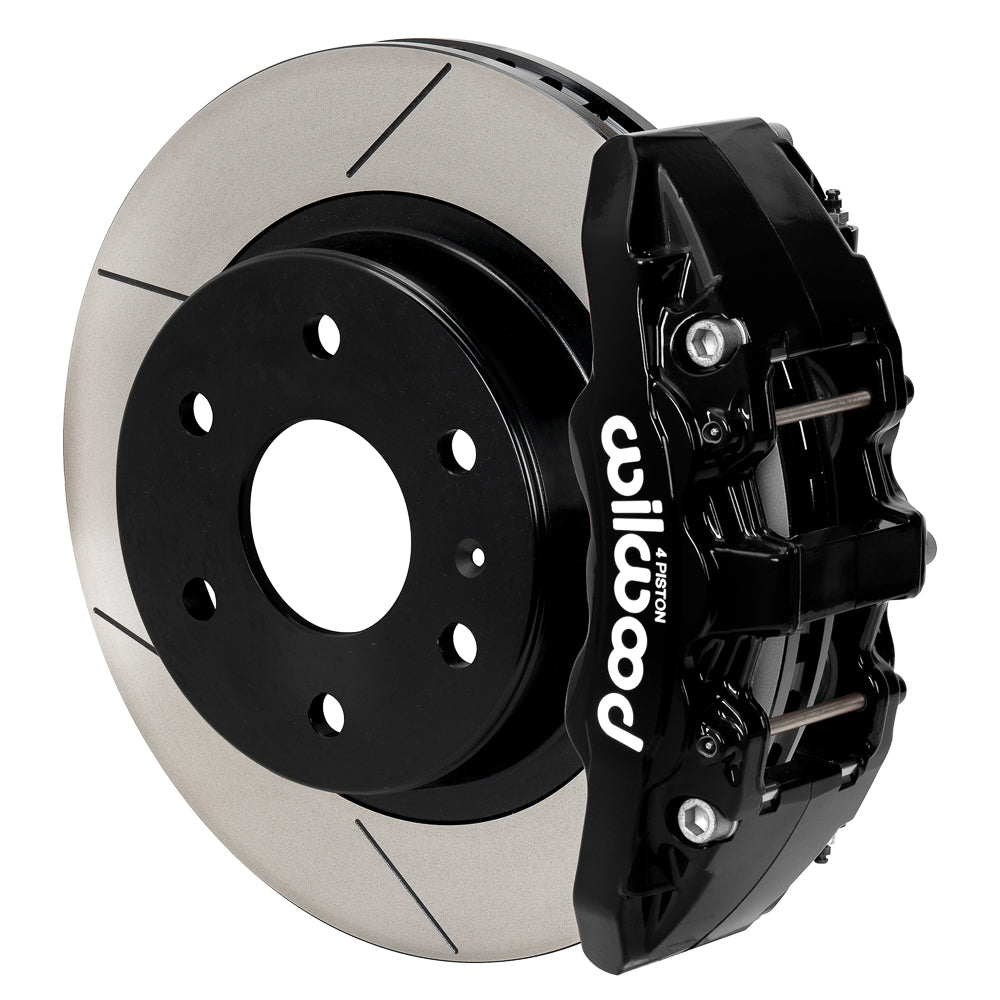

Wilwood Rear AERO4-DM Brake Kit, Black with 13.25-Inch GT Rotors, Mercedes-Benz Sprinter 2500 AWD/RWD without Electric Parking Brake (2022–2024)

Black rear AERO4-DM brakes suit listed Sprinter 2500 AWD/RWD vans without electric parking brakes. Check dust-shield and line-bracket modifications. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering was established in 1977 by Bill Wood and is based in Camarillo, California. Disc brake systems and components are its focus, from brake rotors and calipers to master cylinders, valves, brake lines and fittings. Its work spans motorsport, street-performance and specialized applications, with the complete brake system determining the correct individual components.

Technical Details

• Brake pads supplied: BP-22
• Piston type: Stainless
• Service-caliper port: 1/8-27 NPT
• Rotor assembly specification: 13.25 × 1.10 inches; Iron; GT Slotted
• Wheel envelope: 17 in; the complete wheel-clearance drawing determines fit
• Rotor attachment pattern: 6 x 5.118 in; 6 x 130 mm; verify the retained hub or axle flange separately
• Hydraulic hose selection: Included; confirm correct routing and hard-line connection
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17956

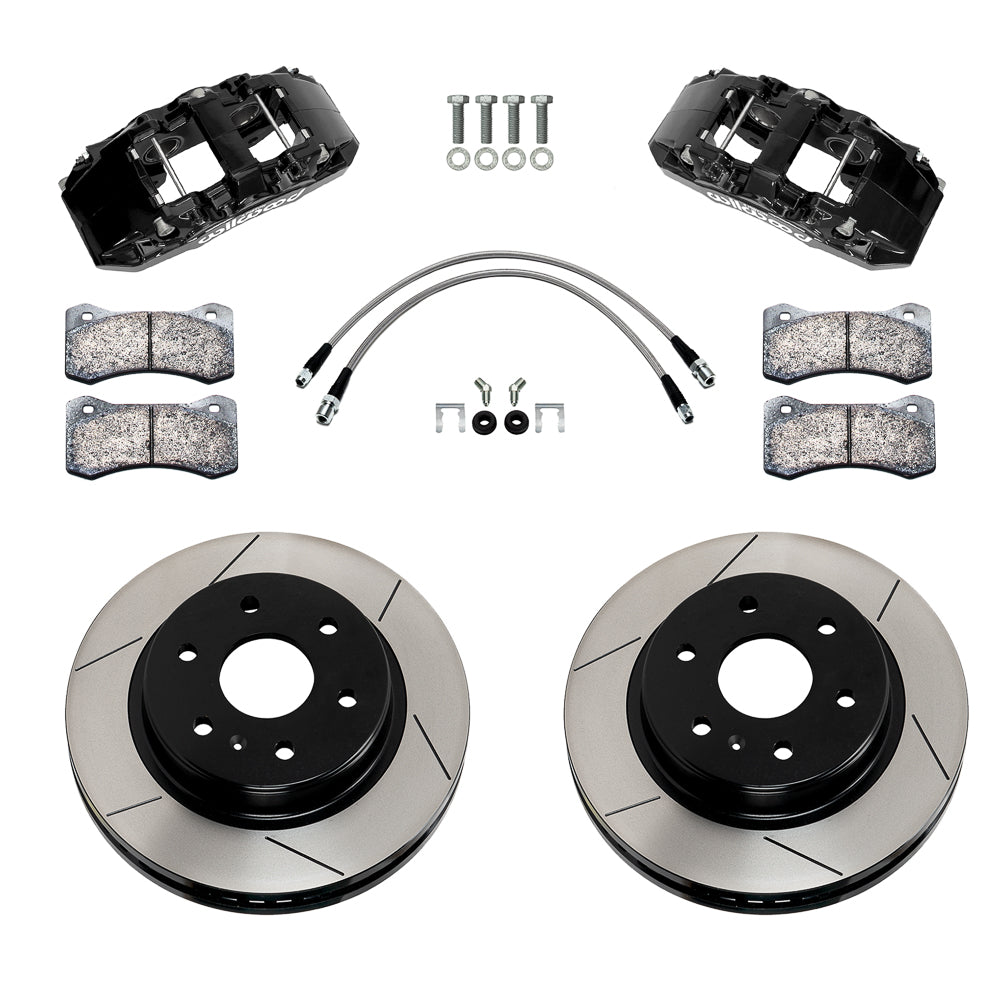

• Application and supplied quantity: rear conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: AERODM; 4 pistons per caliper; Black Powder Coat
• Caliper attachment: Lug

Fitment & Compatibility

Check the factory parking-brake type before choosing this black AERO4-DM rear package: the listed 2022–2024 Sprinter 2500 AWD/RWD applications exclude electric parking brakes. The rear rotor measures 13.25 × 1.10 inches and must match the retained six-lug hub. DS-1630 calls for trimming the dust shield and modifying the original brake-line bracket. Use the supplied flexlines with the correct hard-line adapters, leaving clearance through full suspension movement. Compare the entire caliper/rotor drawing with the wheel, and use the table below for the exact year and drivetrain entries.
