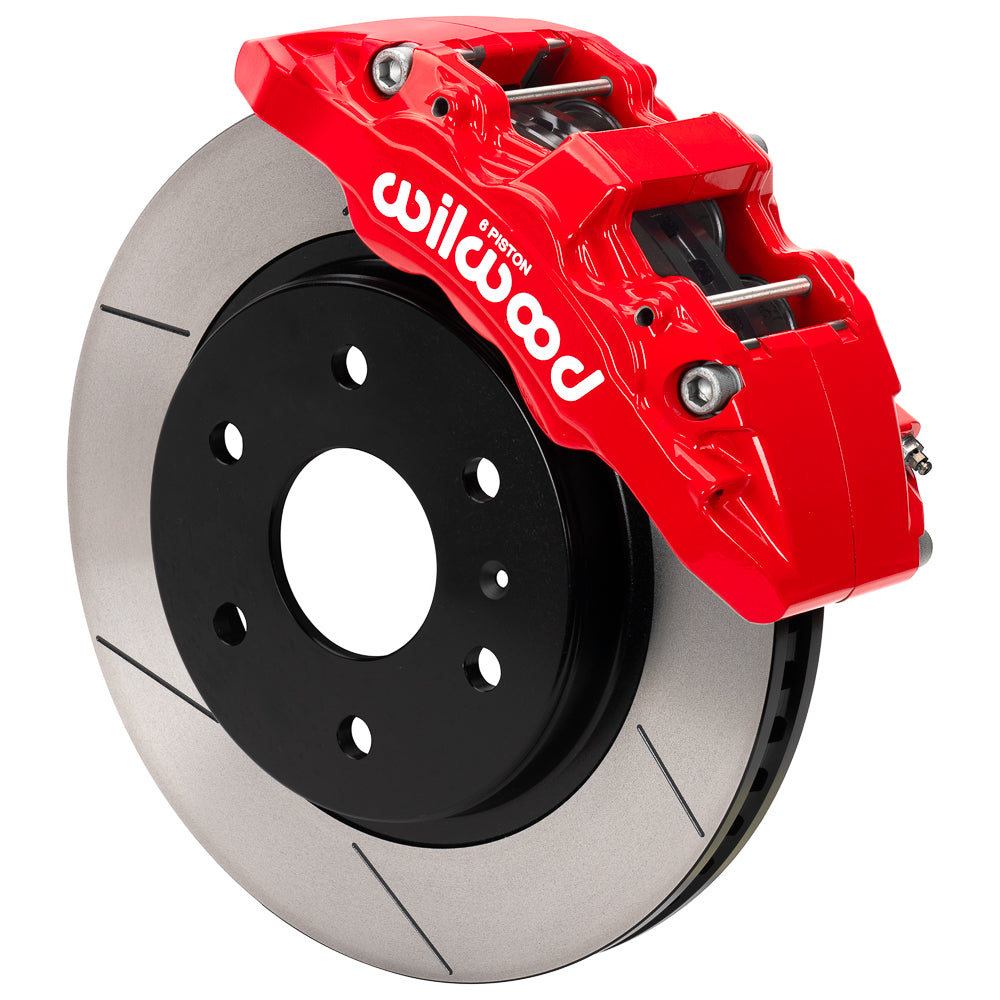

Wilwood Red AERO6-DM Front Caliper and Slotted Rotor Package for Mercedes-Benz Sprinter 2500 AWD/RWD (2022–2024)

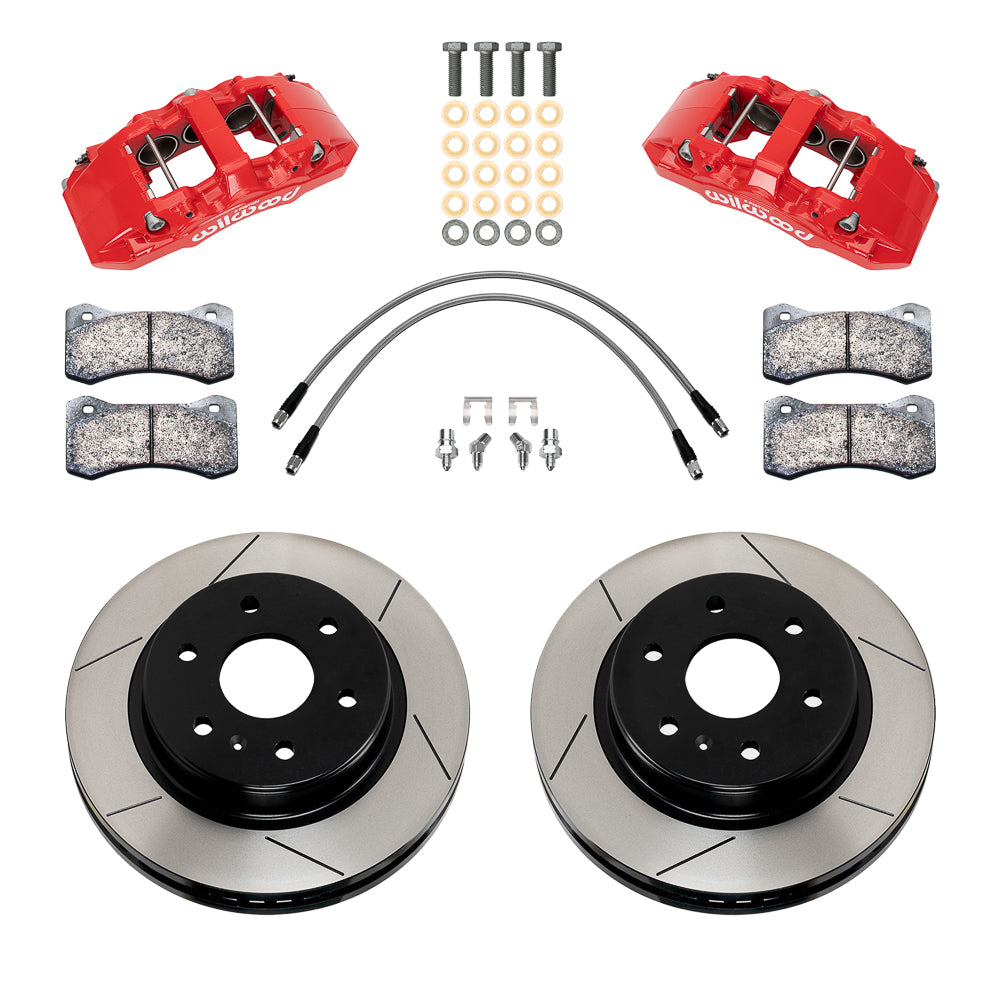

Sprinter 2500 AWD/RWD front brakes receive red six-piston calipers, GT rotors and hoses. Verify the year, wheel profile and line-bracket clearance. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems and components. The company is based in Camarillo, California. Calipers, master cylinders, rotors, brake lines, fittings and valves make up a range serving motorsport, street-performance and specialized applications, with each component chosen for the complete system.

Technical Details

• Hydraulic caliper inlet: 1/8-27 NPT
• Rotor dimensions and construction: 13.25 × 1.25 inches; Iron; GT Slotted
• Wheel-size reference: 17 in; the complete wheel-clearance drawing determines fit
• Rotor / hat mounting drilling: 6 x 5.118 in; 6 x 130 mm; verify the retained hub or axle flange separately
• Hydraulic flexlines: Included; confirm correct routing and hard-line connection
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17955-R
• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: AERODM; 6 pistons per caliper; Red Powder Coat
• Caliper mounting: Lug
• Included pad compound: BP-22
• Piston material: Stainless

Fitment & Compatibility

For the listed 2022–2024 Mercedes-Benz Sprinter 2500 AWD and RWD configurations. Verify the exact production year, original brake arrangement and six-lug hub; neither drivetrain nor nominal wheel diameter alone establishes clearance. DS-1629 requires modifying the factory brake-line bracket for the supplied hose adapter. Check wheel clearance around the 13.25-inch rotors and calipers, and route the included flexlines away from steering, suspension and rotating components. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the VIN, original brake package, axle position and wheel-clearance measurements. We have over 20 years of experience working through parts and fitment details.
