Wilwood Front AERO6-DM Brake Kit, Black with 13.25-Inch GT Rotors and Lines, Mercedes-Benz Sprinter 2500 AWD/RWD (2022–2024)

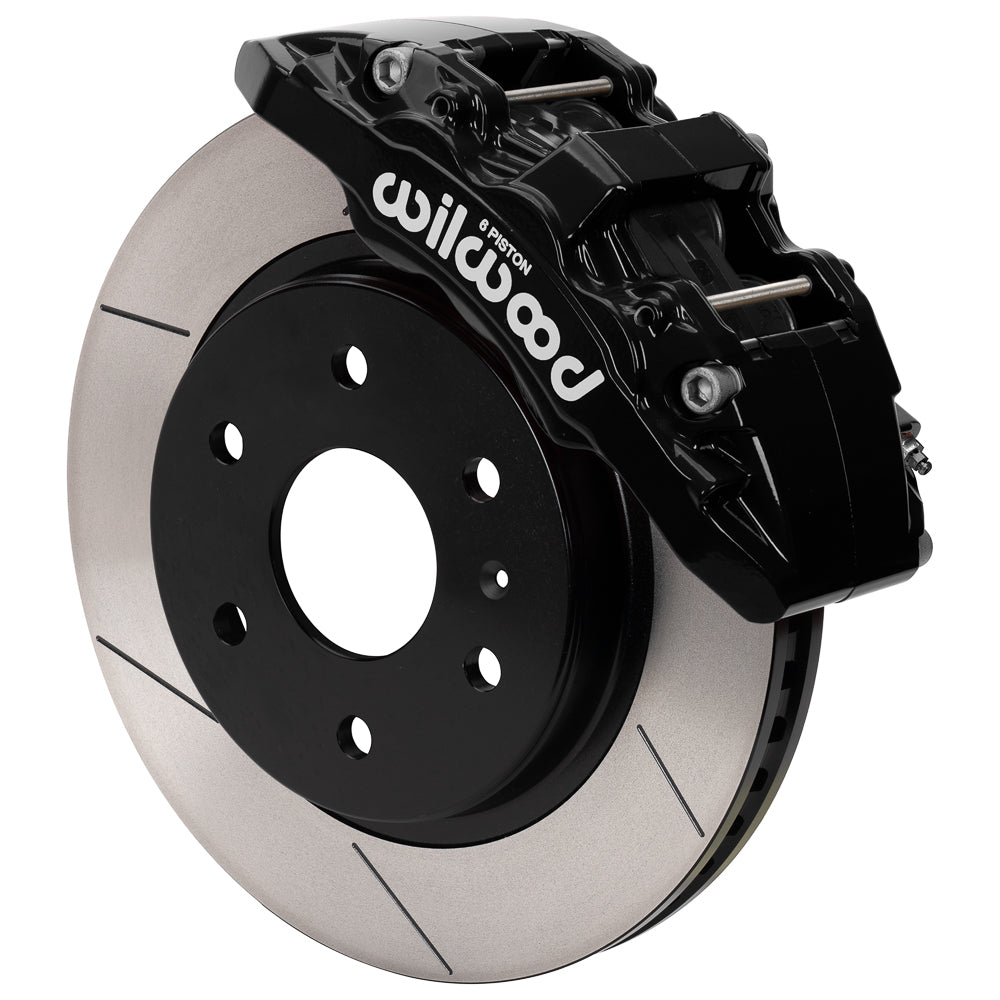

Black AERO6-DM front calipers and 13.25-inch rotors fit listed Mercedes-Benz Sprinter 2500 AWD/RWD models. Plan the brake-line bracket modification. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering was established in 1977 by Bill Wood and is based in Camarillo, California. Disc brake systems and components are its focus, from brake rotors and calipers to master cylinders, valves, brake lines and fittings. Its work spans motorsport, street-performance and specialized applications, with the complete brake system determining the correct individual components.

Technical Details

• Caliper mounting: Lug
• Included pad compound: BP-22
• Piston material: Stainless
• Hydraulic caliper inlet: 1/8-27 NPT
• Rotor dimensions and construction: 13.25 × 1.25 inches; Iron; GT Slotted
• Wheel-size reference: 17 in; the complete wheel-clearance drawing determines fit
• Rotor / hat mounting drilling: 6 x 5.118 in; 6 x 130 mm; verify the retained hub or axle flange separately
• Hydraulic flexlines: Included; confirm correct routing and hard-line connection
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17955

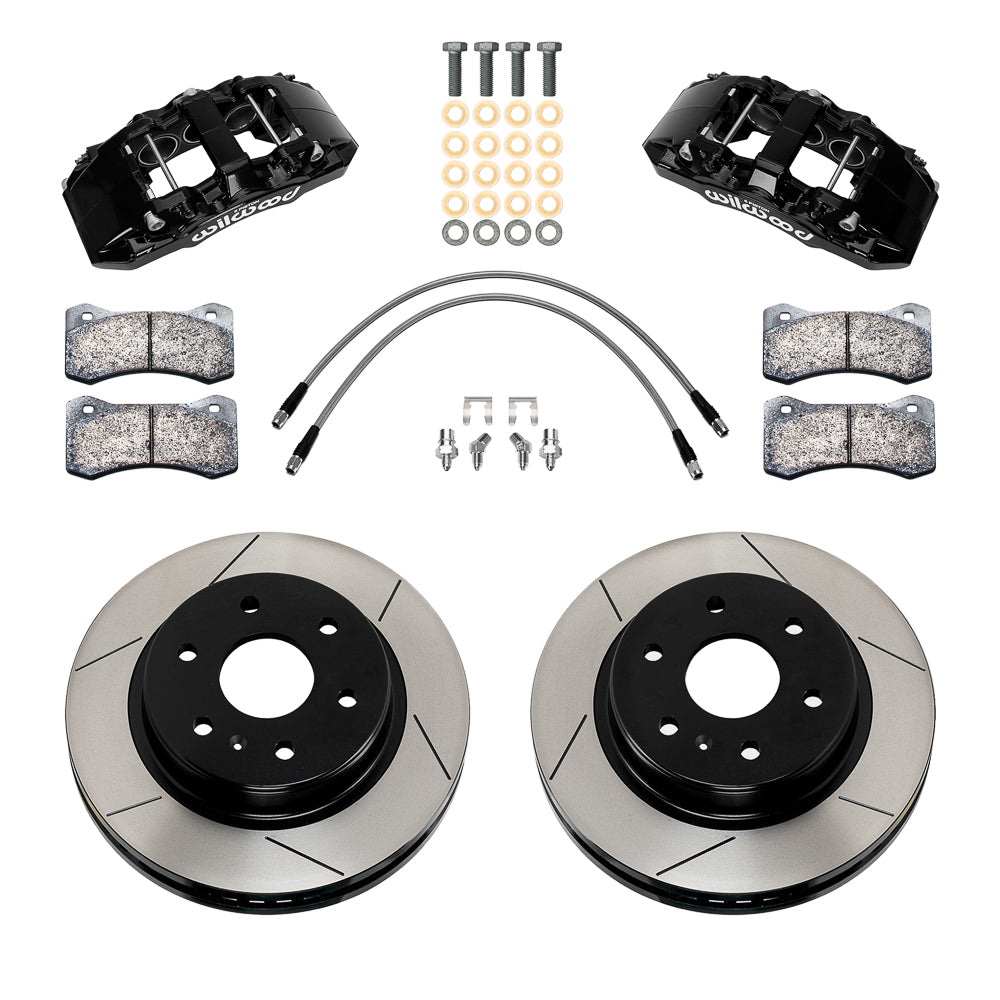

• Brake assembly: front conversion kit; Sold as a kit.
• Calipers: AERODM; 6 pistons per caliper; Black Powder Coat

Fitment & Compatibility

For the listed 2022–2024 Mercedes-Benz Sprinter 2500 AWD and RWD configurations. Verify the exact production year, original brake arrangement and six-lug hub; neither drivetrain nor nominal wheel diameter alone establishes clearance. DS-1629 requires modifying the factory brake-line bracket for the supplied hose adapter. Check wheel clearance around the 13.25-inch rotors and calipers, and route the included flexlines away from steering, suspension and rotating components. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.
