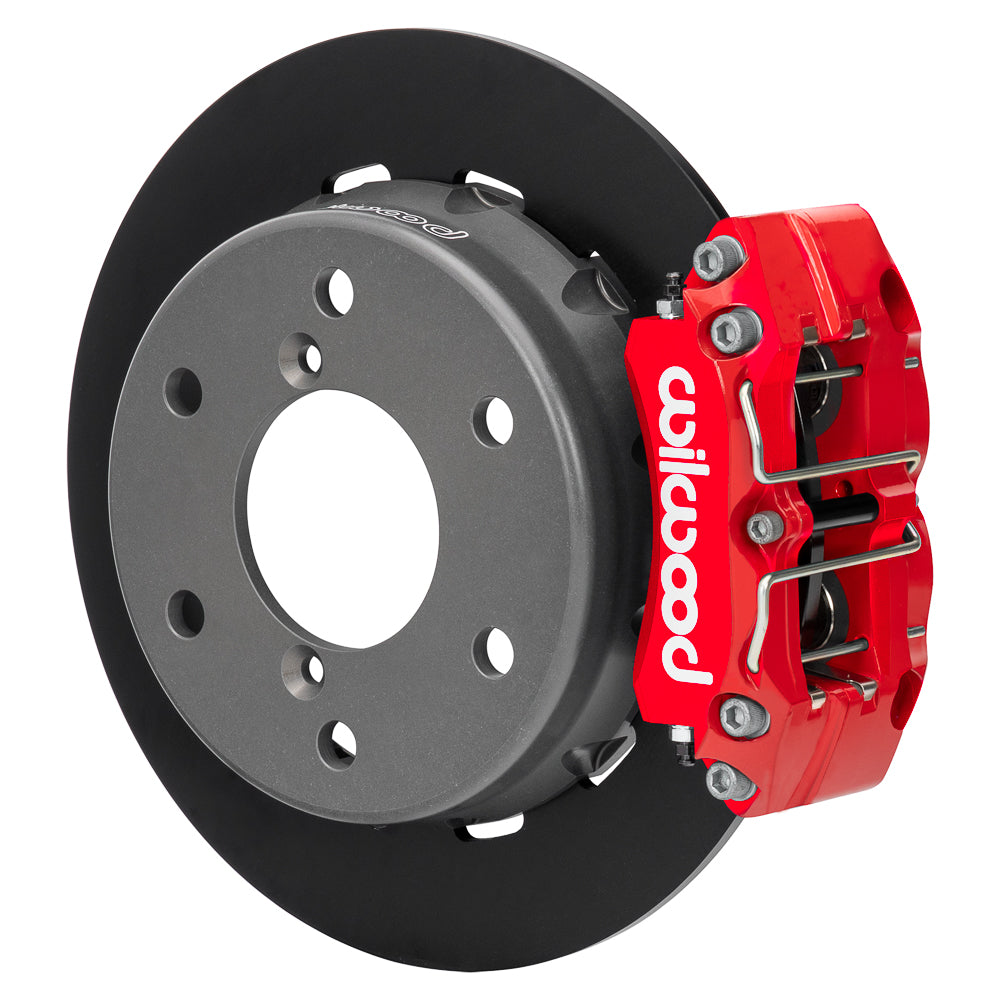

Wilwood Can-Am Rear Brake Package (2024 Maverick R / R X / R X RS / R X RS Smart-Shox), Red NDPR Calipers and Plain Steel Rotors

Red rear brakes for Maverick R, R X, R X RS and R X RS Smart-Shox include 11.60-inch plain rotors. Confirm hub registration and rock-guard removal. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. The manufacturer is Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems along with calipers, rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications each call for components matched to the overall braking arrangement.

Technical Details

• Piston type: Stainless
• Service-caliper port: M10 x 1.25
• Rotor assembly specification: 11.60 × 0.25 inches; Steel; Plain Face
• Wheel envelope: 15 in; the complete wheel-clearance drawing determines fit
• Rotor hat bolt-circle specification: 6 x 5.50 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic hose selection: Not included; supply suitable hoses and fittings separately
• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17947-R

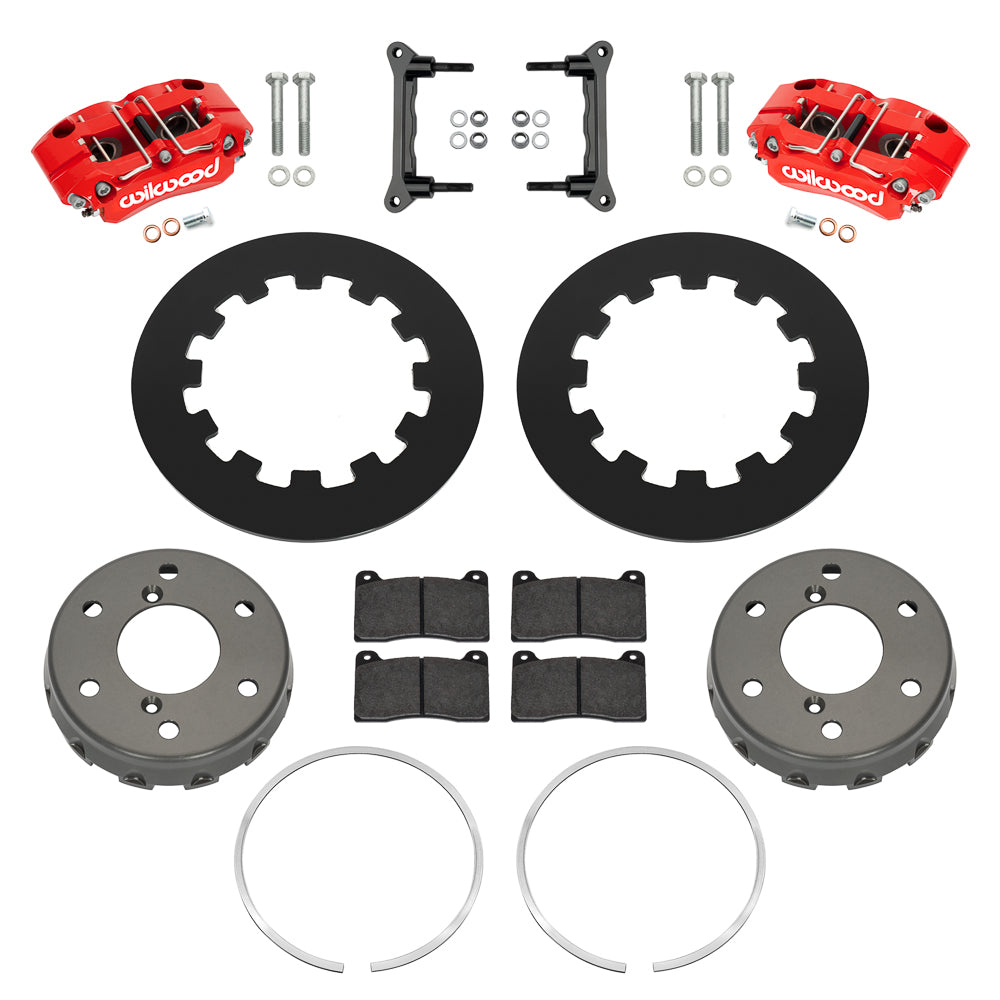

• Application and supplied quantity: rear conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: NDPR; 4 pistons per caliper; Red Powder Coat
• Caliper attachment: Radial
• Brake pads supplied: BP-20

Fitment & Compatibility

At the rear of the listed 2024 Maverick R, R X, R X RS and R X RS Smart-Shox, this red NDPR kit uses plain 11.60 × 0.25-inch steel rotors. Confirm the factory six-lug hub and the rotor registration before selecting the dynamic hat arrangement. DS-1626 calls for removing the original rock guard so the larger rear assembly can clear. Check caliper spacing, hose routing and the adjacent suspension through its travel. The complete wheel template is required even with a nominal 15-inch wheel. The table below identifies the supported 2024 variants rather than assuming later-year coverage.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

For help matching the brake assembly, contact PMB Performance with the VIN, original brake package, axle position and wheel-clearance measurements. We have over 20 years of experience working through parts and fitment details.
