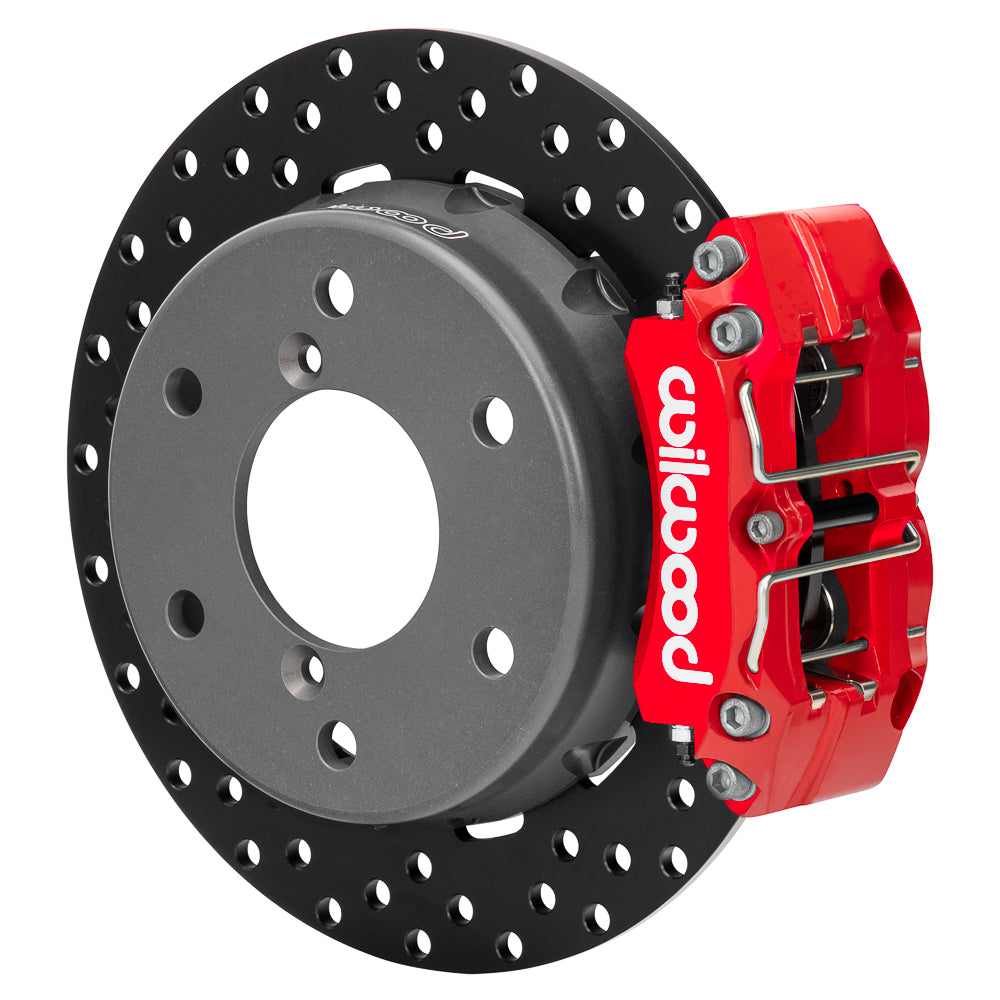

Wilwood Rear 11.60-Inch Drilled Brake Kit, Red NDPR Calipers, Can-Am Maverick R / R X / R X RS / R X RS Smart-Shox (2024)

Drilled steel rear rotors pair with red NDPR calipers for Maverick R, R X, R X RS and R X RS Smart-Shox. Match six-lug hubs and wheel clearance. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Camarillo, California, is home to Wilwood Engineering, the disc-brake manufacturer Bill Wood founded in 1977. Wilwood designs and manufactures systems and components including master cylinders, calipers, rotors, valves, fittings and brake lines. Those parts serve motorsport, street-performance and specialized uses and must be selected as part of the complete brake system.

Technical Details

• Wheel-size reference: 15 in; the complete wheel-clearance drawing determines fit
• Rotor / hat axle-flange drilling: 6 x 5.50 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17947-DR

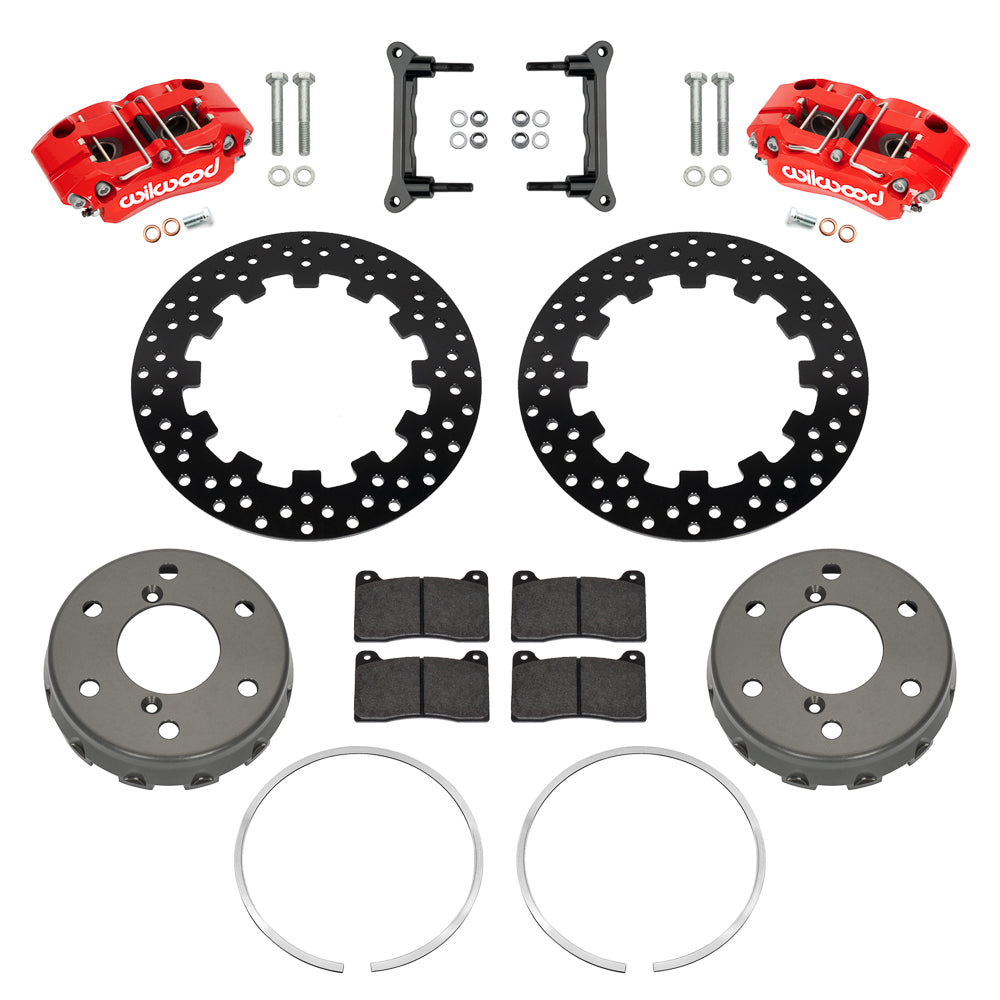

• Brake assembly: rear conversion kit; Sold as a kit.
• Calipers: NDPR; 4 pistons per caliper; Red Powder Coat
• Caliper mounting: Radial
• Included pad compound: BP-20
• Piston material: Stainless
• Hydraulic caliper inlet: M10 x 1.25
• Rotor dimensions and construction: 11.60 × 0.25 inches; Steel; Drilled

Fitment & Compatibility

For the listed 2024 Can-Am Maverick R, Maverick R X, Maverick R X RS and Maverick R X RS Smart-Shox six-lug applications. The brake rotor measures 11.60 × 0.25 inches. DS-1626 requires removal of the factory rock guard to clear the larger rear brake assembly. Verify the retained six-lug hub, rotor registration and adjacent suspension clearance. Compare the complete NDPR wheel template with the actual wheel; a 15-inch nominal diameter does not guarantee clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

With over 20 years of experience in parts and fitment, PMB Performance can help compare this package with your installation. Provide the VIN, original brake package, axle position and wheel-clearance measurements for that review.
