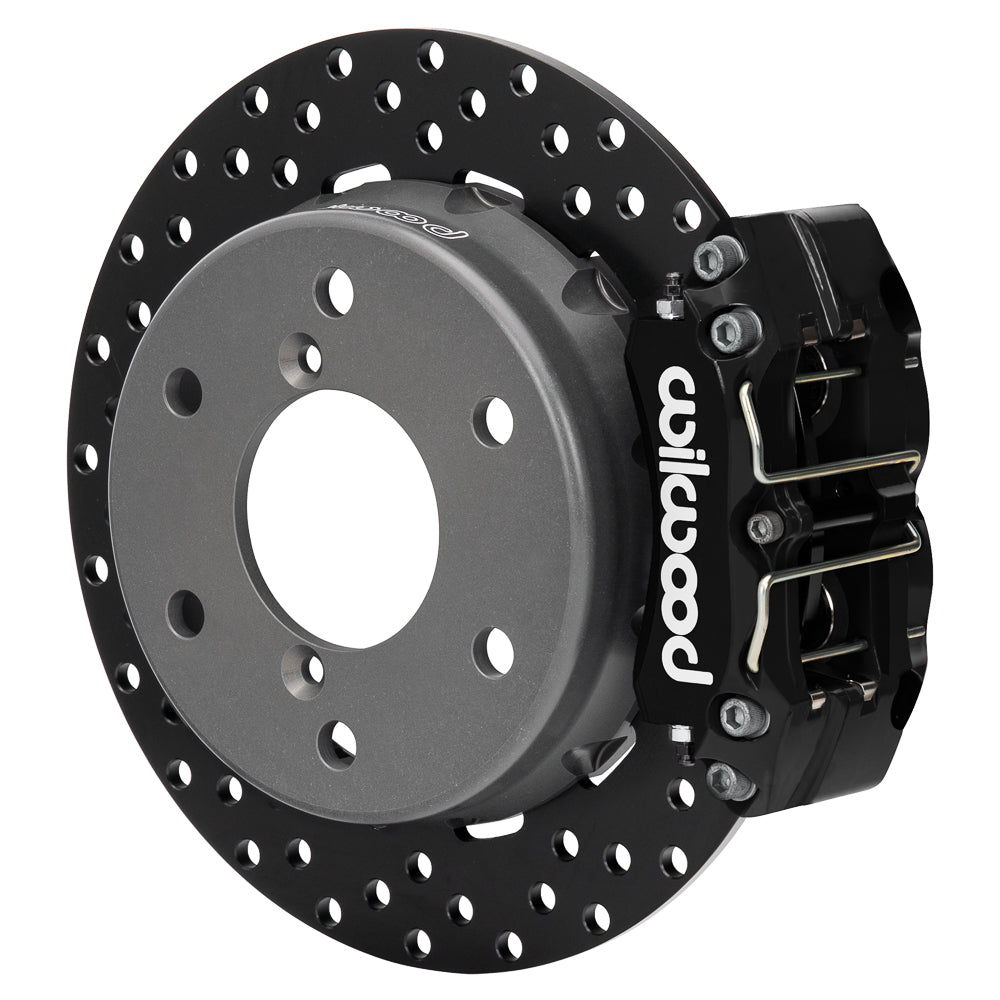

Wilwood Drilled Rear Brake Conversion, Can-Am Maverick R / R X / R X RS / R X RS Smart-Shox (2024), Black Four-Piston NDPR Calipers

Maverick R, R X, R X RS and R X RS Smart-Shox rear brakes receive black calipers and drilled rotors. Check the six-lug hub and rock-guard clearance. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Wilwood Engineering was established in 1977 by Bill Wood and is based in Camarillo, California. Disc brake systems and components are its focus, from brake rotors and calipers to master cylinders, valves, brake lines and fittings. Its work spans motorsport, street-performance and specialized applications, with the complete brake system determining the correct individual components.

Technical Details

• Hardware provision: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer identification: 140-17947-D

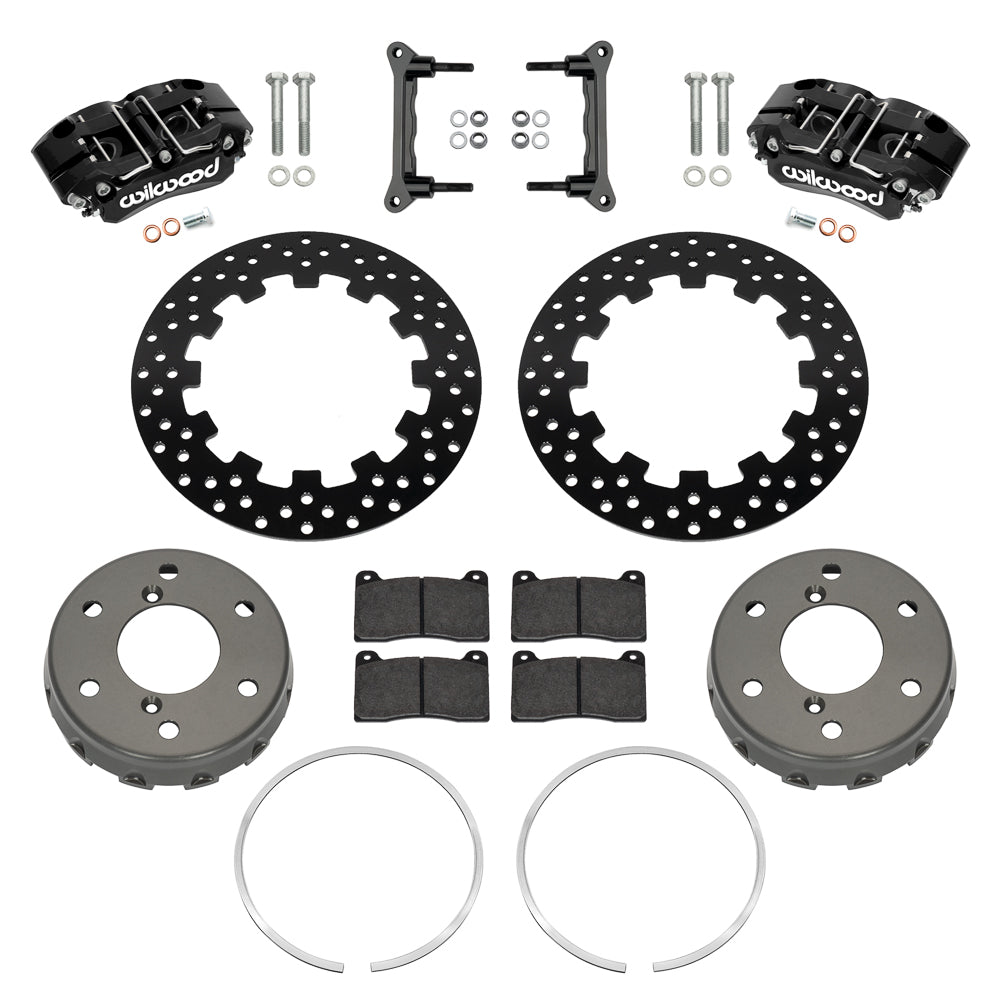

• Application and supplied quantity: rear conversion kit; Sold as a kit.
• Hydraulic service-caliper specification: NDPR; 4 pistons per caliper; Black Powder Coat
• Caliper attachment: Radial
• Brake pads supplied: BP-20
• Piston type: Stainless
• Service-caliper port: M10 x 1.25
• Rotor assembly specification: 11.60 × 0.25 inches; Steel; Drilled
• Wheel envelope: 15 in; the complete wheel-clearance drawing determines fit
• Rotor hat bolt-circle specification: 6 x 5.50 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic hose selection: Not included; supply suitable hoses and fittings separately

Fitment & Compatibility

For the listed 2024 Can-Am Maverick R, Maverick R X, Maverick R X RS and Maverick R X RS Smart-Shox six-lug applications. The brake rotor measures 11.60 × 0.25 inches. DS-1626 requires removal of the factory rock guard to clear the larger rear brake assembly. Verify the retained six-lug hub, rotor registration and adjacent suspension clearance. Compare the complete NDPR wheel template with the actual wheel; a 15-inch nominal diameter does not guarantee clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

Before purchase, send PMB Performance the VIN, original brake package, axle position and wheel-clearance measurements. Our over 20 years of parts and fitment experience helps identify the installation details that need to be checked.
