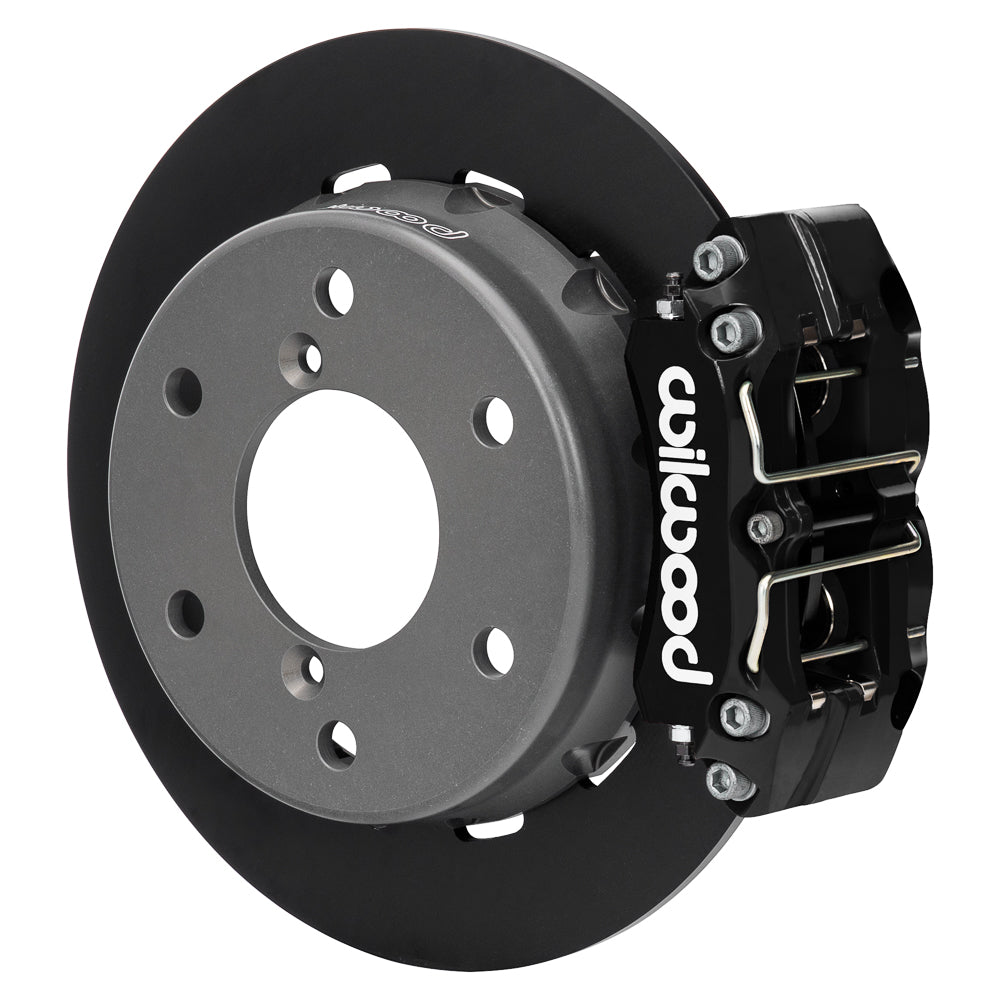

Wilwood Can-Am Maverick R / R X / R X RS / R X RS Smart-Shox Rear Disc Conversion (2024), Black NDPR Calipers and 11.60-Inch Plain Rotors

Black NDPR rear brakes fit Maverick R, R X, R X RS and R X RS Smart-Shox. Verify six-lug mounting and the required factory rock-guard removal. The conversion combines the caliper, pad and rotor configuration specified for this axle and mounting arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its product range includes brake rotors, calipers, master cylinders, valves, fittings and brake lines, selected individually to match the complete brake system.

Technical Details

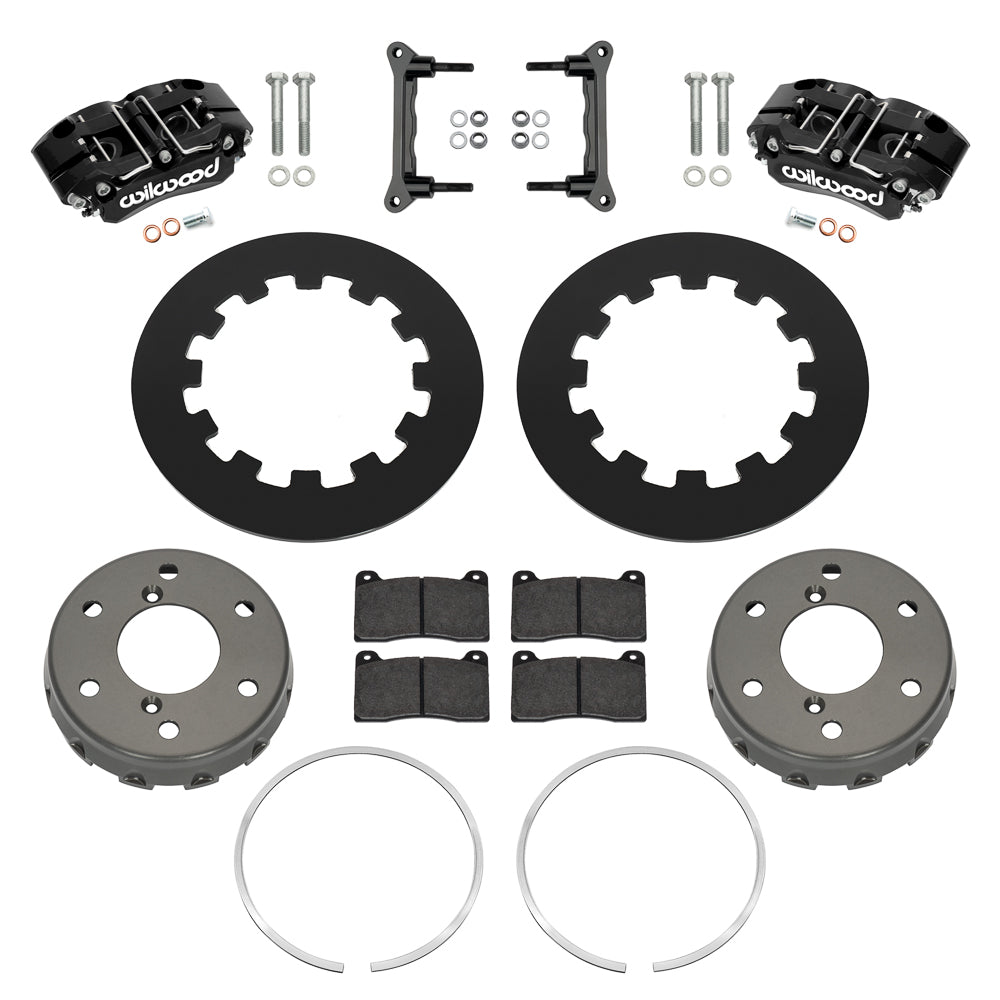

• Brake assembly: rear conversion kit; Sold as a kit.
• Calipers: NDPR; 4 pistons per caliper; Black Powder Coat
• Caliper mounting: Radial
• Included pad compound: BP-20
• Piston material: Stainless
• Hydraulic caliper inlet: M10 x 1.25
• Rotor dimensions and construction: 11.60 × 0.25 inches; Steel; Plain Face
• Wheel-size reference: 15 in; the complete wheel-clearance drawing determines fit
• Rotor / hat axle-flange drilling: 6 x 5.50 inches; this does not change the retained hub or axle wheel pattern
• Hydraulic flexlines: Not included; supply suitable hoses and fittings separately
• Mounting hardware: Included; verify the installed fastener engagement
• Not included: spindles, wheel hubs, master cylinder or brake booster
• Manufacturer part number: 140-17947

Fitment & Compatibility

For the listed 2024 Can-Am Maverick R, Maverick R X, Maverick R X RS and Maverick R X RS Smart-Shox six-lug applications. The brake rotor measures 11.60 × 0.25 inches. DS-1626 requires removal of the factory rock guard to clear the larger rear brake assembly. Verify the retained six-lug hub, rotor registration and adjacent suspension clearance. Compare the complete NDPR wheel template with the actual wheel; a 15-inch nominal diameter does not guarantee clearance. Use the fitment table below to confirm the individual model, year, submodel and brake-option restrictions.

Wilwood product specifications · Wilwood installation and compatibility information · Wilwood installation and compatibility information

PMB Performance brings over 20 years of parts and fitment experience to component selection. Share the VIN, original brake package, axle position and wheel-clearance measurements so we can help check the configuration before ordering.
